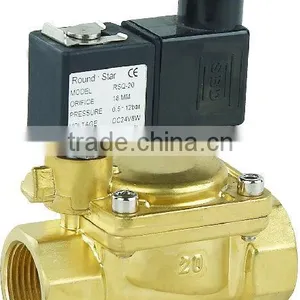

Help CenterRSQ-25 Water SOLENOID VALVE G1''
US$ 16.25 - 79.84
MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Diaphragm
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RSQ-50 Water SOLENOID VALVE G2',DN50MM'US$ 16.25 - 79.84MOQ: 1 Piece -
RSQ-15 Water SOLENOID VALVE G1/2',DN15MM'US$ 16.25 - 79.84MOQ: 1 Piece
-
VX3-015 3 Way Miniature Water Solenoid Valve G1/8''US$ 19 - 19MOQ: 1 Piece
-
VMI-B Three Way Water Solenoid Valve G1/4''US$ 23.99 - 23.99MOQ: 1 Piece
-
VX2 Brass Electronic Gas Solenoid ValveNegotiableMOQ: 1 Piece
Standard or Nonstandard
Standard
Structure
Diaphragm
Pressure
Medium Pressure
Power
Solenoid
Temperature of Media
Medium Temperature
Port Size
G1/2''~2''
Place of Origin
Zhejiang, China
Brand Name
round star
Specifications
reliable performance, long service life, is better for industrial system, such as PC,PLCSpecifications
Solenoid valve
1).24V 6w gas water 2 way solenoid valve
Medium: liquid, air, oil (below 20cst)
Sealing material: NBR
temperature: -5~80
working type: Normally closed
Mode of Action: pilot operated
Body material: brass, SS304
Connection: 1/2''~2'', BSP OR NPT or Flange DN15~50MM
coil power: DC12V/24V, 8W or 6W; AC220/110V, 8VA; also available for other voltages
protection: IP65, F
Water Solenoid valve
Parameters
| Model | connection | orifice size(mm) | CV value | length(mm) | height(mm) |
working pressure(bar)
AC DC |
|
| RSQ-15 | 1/2'' | 13.5 | 3.5 | 66 | 82 | 0.35~16 | 0.35~12 |
| RSQ-20 | 3/4'' | 18 | 7.6 | 79 | 89 | 0.35~16 | 0.35~10 |
| RSQ-25 | 1'' | 24 | 12 | 105 | 106 | 0.35~12 | 0.35~10 |
| RSQ-32 | 11/4'' | 31 | 20 | 130 | 114 | 0.35~10 | 0.35~8 |
| RSQ-40 | 11/2'' | 39 | 28 | 145 | 124 | 0.35~10 | 0.35~8 |
| RSQ-50 | 2'' | 48.5 | 46 | 175 | 140 | 0.35~10 | 0.35~8 |
Remarks: 1.you can use choose the flange connection, its body material can be Brass and SS304
2. If the body material is brass, it could be with a manual swtich
