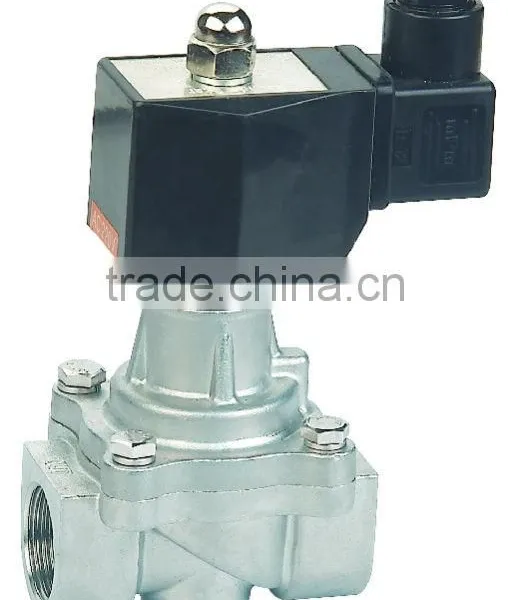

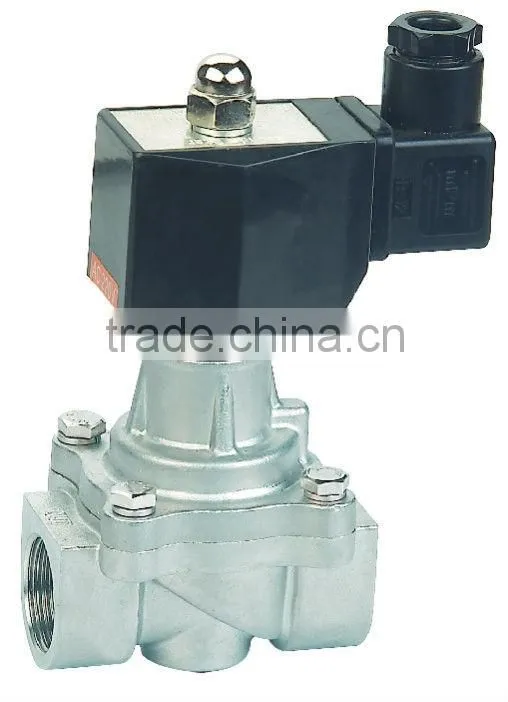

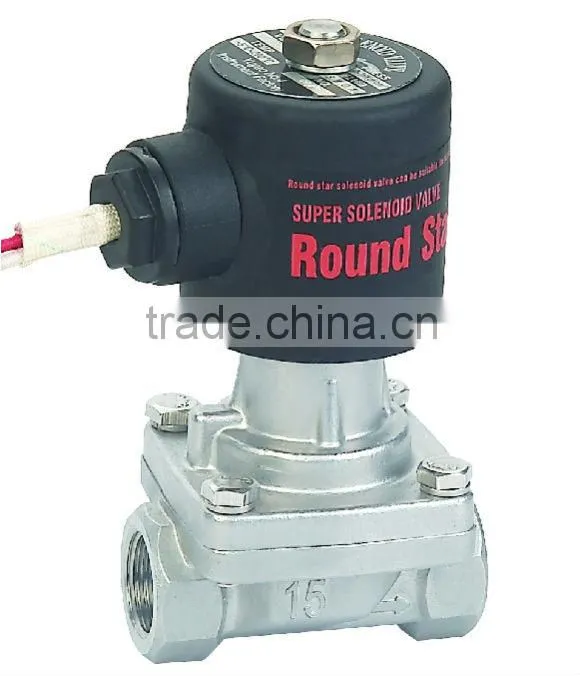

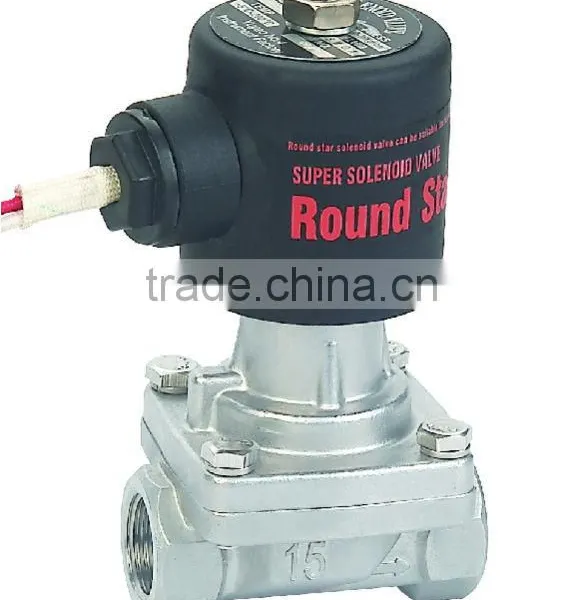

PS-J Stainless Series Gas Solenoid Valve G1/2"--2"
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Safety
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PS Stainless Series Gas Solenoid Valve G1/2"--2"NegotiableMOQ: 1 Piece -
PS-25J STEAM SOLENOID VALVE , G1''US$ 29 - 29MOQ: 1 Piece
-
PS-25J N/C Pilot Solenoid Valve PS-25J for STEAMNegotiableMOQ: 10 Sets
-
N/C Steam Brass Pilot Solenoid Valve PS-25NNegotiableMOQ: 10 Sets
-
PS-25NK Brass Pilot How Water 1 Inch Water Solenoid ValveNegotiableMOQ: 1 Set
Standard or Nonstandard
Standard
Structure
Safety
Pressure
Medium Pressure
Power
Solenoid
Material
Stainless Steel
Temperature of Media
High Temperature
Media
Base
Port Size
G1/2'--2'
Place of Origin
Zhejiang, China
Model Number
PS-J
Brand Name
ROUND STAR
Specifications
suit for water,hot water, gas , oil
Quick Details
- Standard or Nonstandard: Standard
- Structure: Pilot
- Pressure: High Pressure
- Power: Solenoid
- Material: Stainless
- Temperature of Media: High Temperature
- Media: Base
- Port Size: 1/2"~2"
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: Round Star
- why us?: more than 40 years since 1965
- Function: an electromechanical valve for use with liquid or gas
- certificate passed: CE, ISO, ROHS
- Export Area: ALL OVER THE WORLD
- Company spirit: To challenge our future and pursue and surpass ourselves
- Company value: to make wealth for society and the values of employees realized
- Company style: to be faithful,practical, coorperative and efficient
Specifications
Solenoid valve
Media: Steam, hot water, air, oil (below 20cst)
Sealing material: PTFE
Specifications
steam Solenoid valve
Media: Steam, hot water, air, oil (below 20cst)
Sealing material: PTFE
Media: Steam, hot water, air, oil (below 20cst)
Sealing material: PTFE
-- Media: Steam,water, hot water, air, oil (below 20cst)
--Function type: Normally Closed (N/C), Normally Open (N/O)
--Pressure Normally Closed 16 bar, Normally Open: 10 bar
--Temperature: -5 ÷180
--Mode of action: Pilot operated
--Body material: STAINLESS
-- Sealing material: PTFE
--Protection class: IP54
Model |
PS-15J |
PS-20J |
PS-25J |
PS-32J |
PS-40J |
PS-50J |
|
G Connection |
1/2" |
3/4" |
1" |
1½ |
¼ |
2" |
|
Orifice Size |
mm |
20 |
25 |
35 |
40 |
50 |
16 |
Cv Value |
4.5 |
7.6 |
12 |
22 |
30 |
48 |
|
L |
mm |
75 |
75 |
92 |
110 |
122 |
161 |
H |
mm |
135 |
142 |
150 |
150 |
155 |
174 |
H1 |
mm |
112 |
117 |
138 |
138 |
140 |
152 |
Medium temperature |
-5 ÷180 |
||||||
Pressure |
bar |
Normally Closed: 0.4 ~ 16; Normally Open: 0.4 ~ 12 |
|||||
Power |
AC:220V~AC:230V/50-60HZ 22VA; AC110 ~AC:120V/50-60HZ 19VA; DC24 10 W; DC12 9W ; Range:±10% |
||||||
