Help Center2/2 Way Vacuum Stainless Steel Solenoid Valve
Related Products
-
2/2 Way 2W-160-15N Water Air Solenoid Valve 12vUS$ 8 - 120MOQ: 1 Set -
2W-400-40FJ Direct Acting Water Medium SS Flange Solenoid ValveUS$ 50 - 100MOQ: 100 Sets
-
Diesel Solenoid ValveUS$ 30 - 80MOQ: 10 Sets
-
Pneumatic ValveUS$ 20 - 50MOQ: 100 Sets
-
1 Inch Water Solenoid ValveUS$ 30 - 100MOQ: 100 Sets
Specifications
stainless steel valve1) Body material: brass / stainless steel
2) Operating type: normally closed / normally
stainless steel valve
Valves available in normally closed and normally open constructions.
Available in either AC or DC operated with plastic bodies/ stainless steel/ tube/plunger / soft magnetic alloy core. therefore the price is lower compared with that of brass and stainless steel.
1) Body material: brass / stainless steel
2) Operating type: normally closed / normally opened
3) Mode of action: 2/2-way, direct acting / semi-direct lift type
4) Sealing material: NBR, EPDM, or Viton; NBR is standard
5) Coil grade: class B, IP54 / IP65
6) Suitable for applications with temperature below 120°C
7) Reliable action under consistent pressure
8) Connection pipe size: thread 1/8", 1/4" - 2"
Model |
2W-025-06N |
2W-025-08N |
2W-040-08N |
2W-04010N |
2W-160-10N |
2W-160-15N |
2W-200-20N |
2W-250-25N |
2W-350-35 |
2W-400-40 |
2W-500-50 |
||
G Connection |
1/8", 1/4" |
1/8", 1/4" |
1/4" |
3/8" |
3/8" |
1/2" |
3/4" |
1" |
1¼" |
1½" |
2" |
||
Orifice Size |
mm |
2.5 |
4 |
16 |
20 |
25 |
35 |
40 |
50 |
||||
Motion Pattern |
Direct Action |
Semi-direct Lift |
|||||||||||
Cv Value |
0.23 |
0.6 |
4.8 |
7.6 |
12 |
24 |
29 |
48 |
|||||
L |
mm |
40.5 |
40.5 |
40.5 |
52.5 |
69 |
69 |
73 |
99 |
119 |
123 |
168 |
|
H |
mm |
75 |
75 |
75 |
90 |
117 |
117 |
123.5 |
134.5 |
170 |
172 |
209 |
|
H1 |
mm |
66 |
66 |
66 |
76 |
101 |
101 |
107 |
113 |
143 |
144 |
172 |
|
Medium temperature |
-5 ÷80 (-10÷130) |
||||||||||||
Pressure |
bar |
Normally closed :0÷10; Normally Open:0÷6 |
|||||||||||
Power |
AC:220V~AC:230V/50-60HZ 22VA; AC110 ~AC:120V/50-60HZ 22VA; DC24 18W; DC12 17W ; Range:±10%, |
||||||||||||

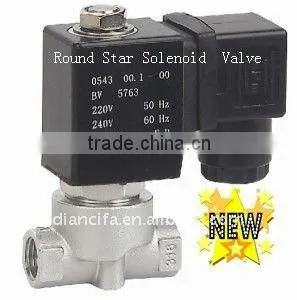

2W-040-10NJ: 2/2 way vacuum stainless steel solenoid valve

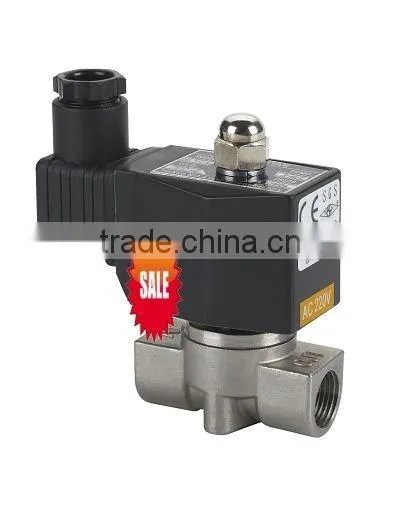

2W-025-08N: 2 way vacuum copper solenoid valve
2W-050-08NJ:2/2 way vacuum stainless steel solenoid valve

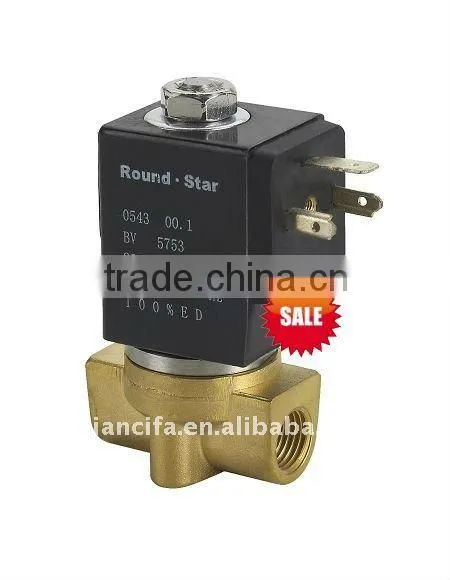

2W-025-08N: 2 way brass vacuum solenoid valve
