Compare Used for Desktop Rtl8188 Realtek Usb Wifi Dongle

FOB Price

Negotiable / Piece

500 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Compare used for desktop rtl8188 realtek usb wifi dongle

Specification for realtek usb wifi dongle:

Product Name	realtek usb wifi dongle
Model	P23
Main chip	Realtek RTL8188ETV

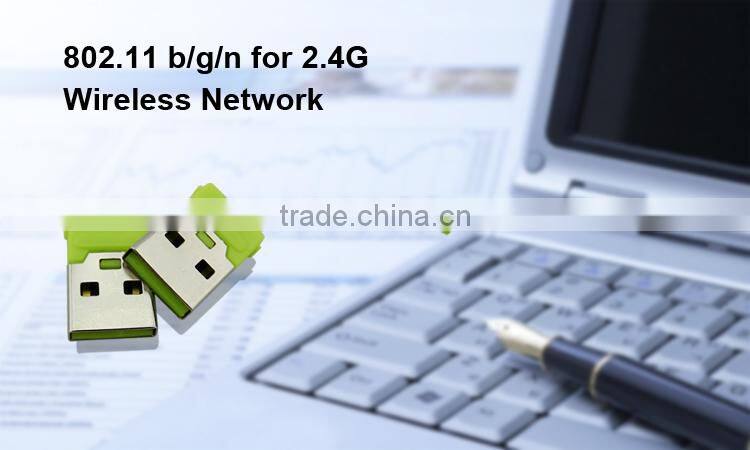

Wireless Standards and protocol	IEEE 802.11n, IEEE 802.11g,IEEE 802.11b,CSMA/CA with ACK
USB	USB 1.1/USB2.0
Frequency	2.4~2.4835GHz
channel	1-14
Spread Spectrum	802.11 g/n: OFDM 802.11b: CCK(11, 5.5Mbps), QPSK(2Mbps), BPSK(1Mbps), DSSS
Signal Rate	802.11b: 11,5.5,2,1 Mbps 802.11g: 54,48,36,24,18,12,9,6 Mbps 802011n: 150Mbps
Reception Sensitivity	130M: -65dBm@10% PER; 108M:-65dBm@10% PER; 54M:-65dBm@10% PER; 11M:-87dBm@8%PER; 6M:-90dBm@10% PER; 1M:-90dBm@8% PER
RF POWER	20dBm(Max)
Working voltage	DC 5V ±0.3V for realtek usb wifi dongle

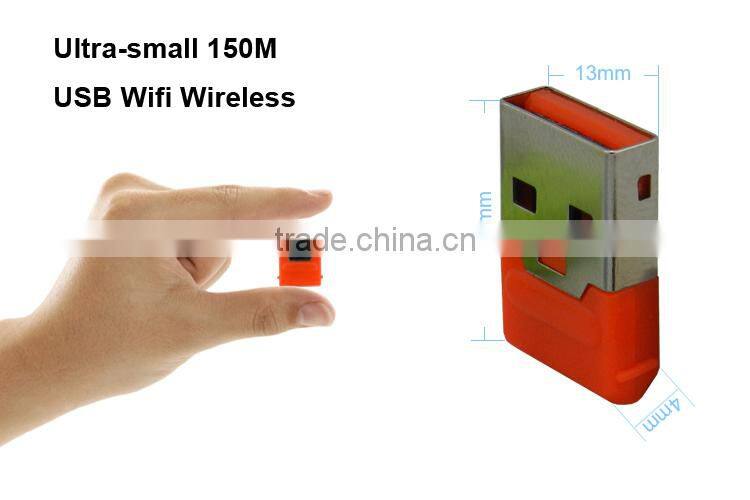

Dimension	22.4mm13mm4.8mm
weight	1g
Temperature	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
System Requirements	Windows 2000/XP/Vista/WIN 7/WIN CE/LINUX

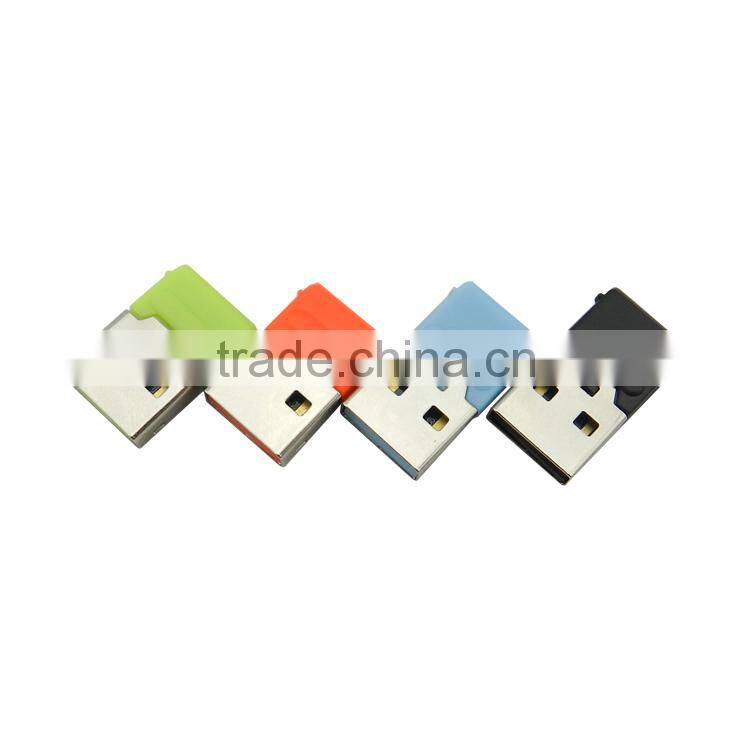

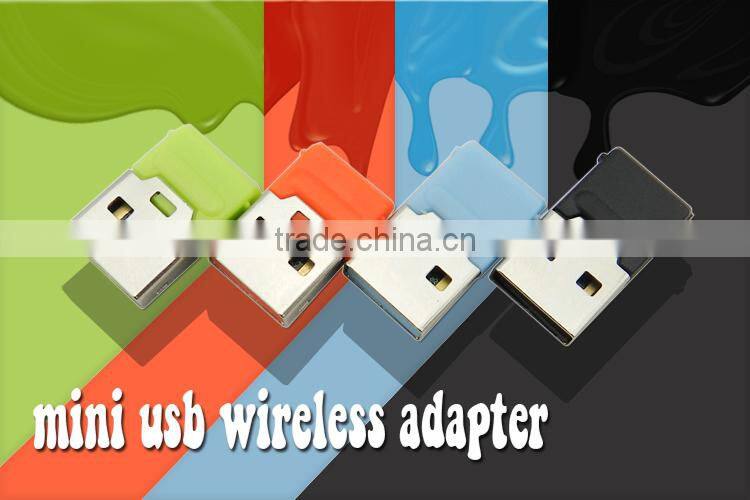

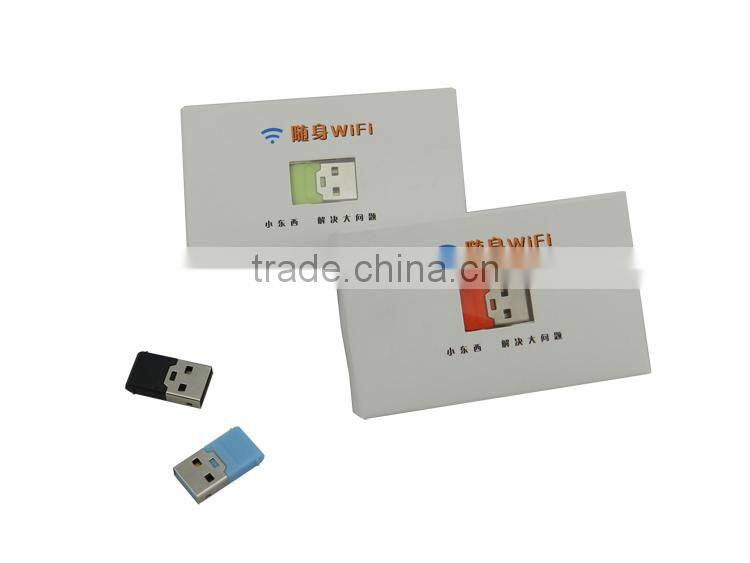

Pictures for realtek usb wifi dongle:

Our Services

OEM/ODM

customization software

adjustabe hardware according to your mold
