Home > Lights & Lighting > LED Interior Lighting > LED Tube > Single Pin 5 Feet T8 Led Tubes Lights 36W 2800lm 240Leds 2835 SMD 5ft Fluorescent Tube 1500mm R17d Lamp Holder

Single Pin 5 Feet T8 Led Tubes Lights 36W 2800lm 240Leds 2835 SMD 5ft Fluorescent Tube 1500mm R17d Lamp Holder

Shenzhen CXWON Technology Co., Ltd.
Single Pin 5 Feet T8 Led Tubes Lights 36W 2800lm 240Leds 2835 SMD 5ft Fluorescent Tube 1500mm R17d Lamp Holder thumbnail-1
Single Pin 5 Feet T8 Led Tubes Lights 36W 2800lm 240Leds 2835 SMD 5ft Fluorescent Tube 1500mm R17d Lamp Holder thumbnail-2
Single Pin 5 Feet T8 Led Tubes Lights 36W 2800lm 240Leds 2835 SMD 5ft Fluorescent Tube 1500mm R17d Lamp Holder thumbnail-3
Single Pin 5 Feet T8 Led Tubes Lights 36W 2800lm 240Leds 2835 SMD 5ft Fluorescent Tube 1500mm R17d Lamp Holder thumbnail-4
Single Pin 5 Feet T8 Led Tubes Lights 36W 2800lm 240Leds 2835 SMD 5ft Fluorescent Tube 1500mm R17d Lamp Holder thumbnail-5
Single Pin 5 Feet T8 Led Tubes Lights 36W 2800lm 240Leds 2835 SMD 5ft Fluorescent Tube 1500mm R17d Lamp Holder thumbnail-6
Single Pin 5 Feet T8 Led Tubes Lights 36W 2800lm 240Leds 2835 SMD 5ft Fluorescent Tube 1500mm R17d Lamp Holder photo-1
Single Pin 5 Feet T8 Led Tubes Lights 36W 2800lm 240Leds 2835 SMD 5ft Fluorescent Tube 1500mm R17d Lamp Holder photo-2
Single Pin 5 Feet T8 Led Tubes Lights 36W 2800lm 240Leds 2835 SMD 5ft Fluorescent Tube 1500mm R17d Lamp Holder photo-3
Single Pin 5 Feet T8 Led Tubes Lights 36W 2800lm 240Leds 2835 SMD 5ft Fluorescent Tube 1500mm R17d Lamp Holder photo-4
Single Pin 5 Feet T8 Led Tubes Lights 36W 2800lm 240Leds 2835 SMD 5ft Fluorescent Tube 1500mm R17d Lamp Holder photo-5
Single Pin 5 Feet T8 Led Tubes Lights 36W 2800lm 240Leds 2835 SMD 5ft Fluorescent Tube 1500mm R17d Lamp Holder photo-6
US$ 4.09 - 12.64 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
SMD
Warranty(Years):
2
Input Voltage(V):
AC85-265V
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD
Warranty(Years) 2
Input Voltage(V) AC85-265V
Lamp Power(W) 36
Lamp Luminous Flux(lm) 2880
Lamp Luminous Efficiency(lm/w) 80
Color Temperature(CCT) Other, warm white ture white
Working Temperature(℃) -20, 45
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP44
Certification CCC, CE, CQC, FCC, SAA
Place of Origin Guangdong, China
Brand Name CXWON
Model Number T8

Single Pin 5 Feet T8 Led Tubes Lights 36W 2800lm 240Leds 2835 SMD 5ft Fluorescent Tube 1500mm r17d lamp holder

Product Description

 Specification

Name

Single Pin 5 Feet T8 Led Tubes Lights 36W 2800lm 240Leds 2835 SMD 5ft Fluorescent Tube 1500mm r17d lamp holder

Power

36w

Input Voltage

AC85-265v

Size

D26*1500mm

Light Efficacy

80lm/W

Light Source

SMD2835

Beam Angle

270Degree

Housing materials

Aluminum

Light Color

Warm white/Nature White

CCT

3000-6000K

CRI

Ra≥70

 Pictures show

Single Pin 5 Feet T8 Led Tubes Lights 36W 2800lm 240Leds 2835 SMD 5ft Fluorescent Tube 1500mm r17d lamp holderSingle Pin 5 Feet T8 Led Tubes Lights 36W 2800lm 240Leds 2835 SMD 5ft Fluorescent Tube 1500mm r17d lamp holder Single Pin 5 Feet T8 Led Tubes Lights 36W 2800lm 240Leds 2835 SMD 5ft Fluorescent Tube 1500mm r17d lamp holder Single Pin 5 Feet T8 Led Tubes Lights 36W 2800lm 240Leds 2835 SMD 5ft Fluorescent Tube 1500mm r17d lamp holder

Single Pin 5 Feet T8 Led Tubes Lights 36W 2800lm 240Leds 2835 SMD 5ft Fluorescent Tube 1500mm r17d lamp holderSingle Pin 5 Feet T8 Led Tubes Lights 36W 2800lm 240Leds 2835 SMD 5ft Fluorescent Tube 1500mm r17d lamp holderSingle Pin 5 Feet T8 Led Tubes Lights 36W 2800lm 240Leds 2835 SMD 5ft Fluorescent Tube 1500mm r17d lamp holderSingle Pin 5 Feet T8 Led Tubes Lights 36W 2800lm 240Leds 2835 SMD 5ft Fluorescent Tube 1500mm r17d lamp holderSingle Pin 5 Feet T8 Led Tubes Lights 36W 2800lm 240Leds 2835 SMD 5ft Fluorescent Tube 1500mm r17d lamp holder

Multi-sizes for choices

600MM   18W

Material:/Aluminium Body+Milky PC CoverSMD:2835    Luminous:1680±100Lm
Light transmittance :≥80%Lifespan:≥50000H
Input Voltage:AC85V~265VEfficiency:≥88%
Working frequency:50/60HzRendering Index:70Ra
Power Factor:>0.95CCT:3000K-6000K
Operating temperature:-20°C~45°CSIZE:600mm (L)×D26mm



900MM   25W

Material:Aluminium Body+MilkySMD:2835
Light transmittance :≥80%Lifespan:≥50000H
Input Voltage:AC85V~265VEfficiency:≥88%
Rated Power:25WBeam Angle:270°
Actual Power:25WLuminous:2200±100Lm
Working frequency:50/60HzRendering Index:70Ra
Power Factor:>0.95CCT: 3000K-6000K
Operating temperature:-20°C~45°CSize:900mm (L)×D26mm



1200MM   30W

Material:Aluminium Body+MilkySMD:2835
Light transmittance :≥80%Lifespan:≥50000H
Input Voltage:AC85V~265VEfficiency:≥88%
Rated Power:36WBeam Angle:270°
Actual Power:38WLuminous:2880±100Lm
Working frequency:50/60HzRendering Index:70Ra
Power Factor:>0.95CCT: 3000K-6000K
Operating temperature:-20°C~45°CSize:1200mm (L)×D26mm
 Warranty time:2 Year



1500MM   36W

Material:Aluminium Body+MilkySMD:2835
Light transmittance :≥80%Lifespan:≥50000H
Input Voltage:AC85V~265VEfficiency:≥88%
Rated Power:36WBeam Angle:270°
Actual Power:37WLuminous:3880±100Lm
Working frequency:50/60HzRendering Index:70Ra
Power Factor:>0.95CCT: 3000K-6000K
Operating temperature:-20°C~45°CSize:1500mm (L)×D26mm
 Warranty time:2 Year

 1800MM   45W

Material:Aluminium Body+MilkySMD:2835
Light transmittance :≥80%Lifespan:≥50000H
Input Voltage:AC85V~265VEfficiency:≥88%
Rated Power:45WBeam Angle:270°
Actual Power:46WLuminous:3880±100Lm
Working frequency:50/60HzRendering Index:70Ra
Power Factor:>0.95CCT: 3000K-6000K
Operating temperature:-20°C~45°CSize:1800mm (L)×D26mm
 Warranty time:2 Year







2400MM   65W

Material:Aluminium Body+MilkySMD:2835
Light transmittance :≥80%Lifespan:≥50000H
Input Voltage:AC85V~265VEfficiency:≥88%
Rated Power:65WBeam Angle:270°
Actual Power:66WLuminous:5200±100Lm
Working frequency:50/60HzRendering Index:70Ra
Power Factor:>0.95CCT: 3000K-6000K
Operating temperature:-20°C~45°CSize:2400mm (L)×D26mm
 Warranty time:2 Year




 Features

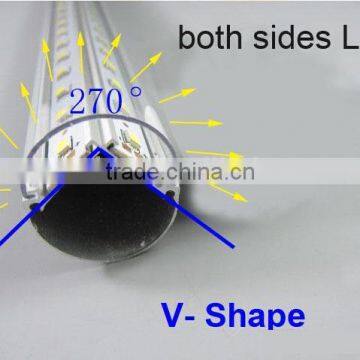

  • V shaped tube, two rows of leds,more brightness and 270 beam angle.
  • Thickness aluminum shell and plastic cover, strong to delivery.
  • Save power more than 90% compare with fluorescent tubes .
  • High PF for power supply, constant electric current driver, Input AC90-265V.
  • High lumen SMD2835 Sanan chip, 25lm/pcs.  Pure colour, High CRI.
ApplicationSingle Pin 5 Feet T8 Led Tubes Lights 36W 2800lm 240Leds 2835 SMD 5ft Fluorescent Tube 1500mm r17d lamp holder
  • Super underground parking lot.
  • Basement/garage parking
  • Indoor lighting & outdoor lighitng
Packaging & Shipping

Single Pin 5 Feet T8 Led Tubes Lights 36W 2800lm 240Leds 2835 SMD 5ft Fluorescent Tube 1500mm r17d lamp holder

Shipping:

  • By UPS/DHL/FEDEX/TNT---3~5 days to arrive
  • Air cargo---about 7days to arrive
  • By sea---about one month to arrive
  • Ways of transportation depend on your actual requirements.
Trade Terms for V-shaped Tube T8 LED with R17D BASE:
  • Payment:  Western Union, PAYPAL, MoneyGram, T/T, 30% deposits-- 70% balance before delivery
  • Delivery Time: 3-5 days for samples; 5-10 days for batch goods
  • Shipping Port: Shenzhen, China(Mainland)
  • Discounts: According to your quantities
  • MOQ: >1 pieces.
  • Warranty: 2 years
Our Services

Single Pin 5 Feet T8 Led Tubes Lights 36W 2800lm 240Leds 2835 SMD 5ft Fluorescent Tube 1500mm r17d lamp holder

Company Information

Single Pin 5 Feet T8 Led Tubes Lights 36W 2800lm 240Leds 2835 SMD 5ft Fluorescent Tube 1500mm r17d lamp holderSingle Pin 5 Feet T8 Led Tubes Lights 36W 2800lm 240Leds 2835 SMD 5ft Fluorescent Tube 1500mm r17d lamp holderSingle Pin 5 Feet T8 Led Tubes Lights 36W 2800lm 240Leds 2835 SMD 5ft Fluorescent Tube 1500mm r17d lamp holder

FAQ

-Question: What is the Minimum Order Quantity(MOQ)?

   Answer:>1 pcs per model.


 -Question: What’s the brand of LED chip?

Answer: smd2835.



- Question: Is this light dimmable?

Answer: No,

- Question: May I buy samples from you?

Answer: Yes, samples available.



- Question: What’s the leading time? (How long do you need to prepare my goods?)

Answer: 2-3days for sample orders. 7-10days for mass production orders (based on different quantities).


- Question: How will you delivery my goods to me?

Answer: We always ship by international express, air and sea.

5-7 days for air transportation, 3-5 days for international express. 20-40 days for sea transportation.



- Question: What is your product quality?

Answer: Our raw materials are purchased from qualified suppliers. And we have a strong quality control team to guarantee our quality according to AQL standard. The quality control system: IQC→PQC→FQC→OQC. Every process will be checked strictly.



- Question: What is your waranty?

Answer: Our warranty is 2 years after delivery.
