Drilling Stabilizer of oilfield equipment
- 1000 Set / Sets per Month
- Tianjin Port
- T/T L/C D/P D/A Credit Card PayPal
- API-7-1 Standard single cone drill bit
- 6 7 11 12 degree Diameter 32mm Taper Knock off drill bit
- Oil Well Api Oilfield Fishing Tool Overshot Grapple Assembly/Oil Well Magnetic Fishing Head/Cable Righting Fishing Head
- Drop Shipping API Oilfield Releasing Overshot 4 11/16" Oil Fishing Tools LT119
- API compliant fishing tool overshot for oil field downhole work
- Oil Well fishing tool sucker rod overshot/circulating overshots
Product Details
Place of Origin: | Hebei, China | Brand Name: | Lockheed | Model Number: | Drilling Stabilizer of oilfield |
Type: | Drill Bit | Machine Type: | Drilling Tool | Certification: | API |
Material: | High Manganese Steel | Processing Type: | Forging | Use: | Well Drilling |
Product Description

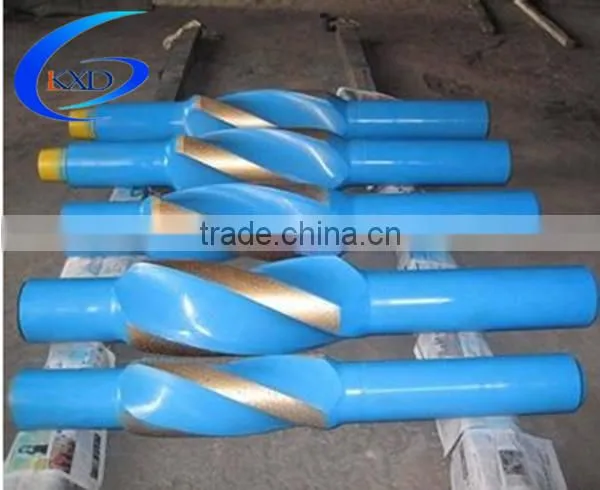

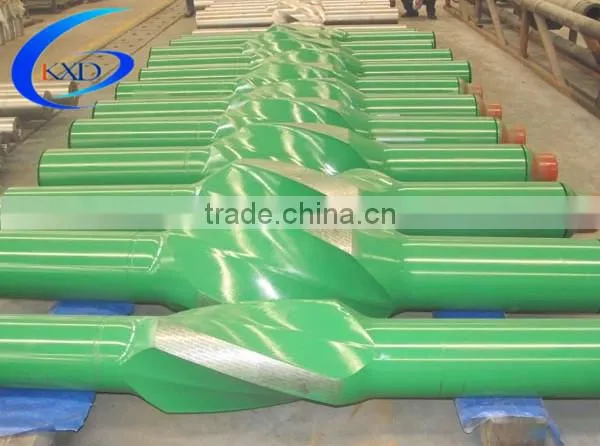

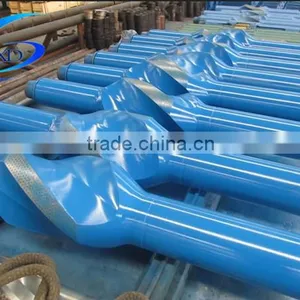

Drilling Stabilizer of oilfield equipment
Integral Blade Stabilizer (IBS) is a one piece rotating stabilizer which can be placed near bit or up
in the drill string.
It is a one piece construction manufactured from high strength alloy steel (non-magnet steel
optional).
It prevents differential sticking of the drill string by stabilizing the BHA and keeping drill collars anddrill pipes away from the borehole wall.
This reduces vibration, drill pipe whirl, and well bore tortuosity; furthermore, the stabilization
maintains drilling trajectory whether drilling straight, horizontal, or directional wells
Specification
Bit Size (in) | Working OD (mm) | End OD of body(mm) | ID (mm) | Length (mm) | Thread code on both ends | |||
Drill string type | Near bit type | |||||||
Top | Down | Top | Down | |||||
6 | 152.2 | 121 | 51 | 1200 | NC38 | 3 1/2 REG | ||
6 1/4 | 158.7 | |||||||
6 1/2 | 165.1 | |||||||
7 1/2 | 190.5 | 159 | 57 | 1600 | NC46 | 4 1/2 REG | ||
7 7/8 | 200 | |||||||
8 3/8 | 212.7 | 159 | 71 | 1600 | NC46 | |||
8 1/2 | 215.2 | 159 | ||||||
8 3/4 | 222.2 | |||||||
9 1/2 | 241.3 | 178 | 1600 | NC50 | NC50 | NC50 | ||
9 5/8 | 244.5 | 1800 | 6 5/8 REG | |||||
9 7/8 | 250.8 | |||||||
12 1/4 | 311.2 | 203 | 76 | 1800 | NC56 | NC56 | NC56 | 6 5/8 REG |
16 | 406 | 229 | 2000 | NC61 | NC61 | NC61 | NC61 | |
17 1/2 | 444.5 | |||||||
24 | 609.6 | |||||||
26 | 660.4 | |||||||
28 | 711.2 | |||||||
Note: Stabilizer can be made according to customer’s special requirement. |
Packing: Wooden case or as clients' request.
Shipping: By sea or by air for exporting goods.
Minimum Order Quantity: 1 piece
We are committed to provide you most of the products in the shortest time.
Cangzhou Lockheed Drilling Equipment Parts Co., Ltd. is a professional technology-oriented
enterprise specialized in the production drilling equipments and tools, which is one of
the leading corporations of drilling tools and workover fishing tool manufacturing
industry. Including three series with full model types,as follows:
Drilling Bit series: rock roller bit,tricone bit,pdc drill bit,single bit,cone bit and hole opener;
Drilling Equipment Parts series: manual tong,elevator,slips,stabilizer;
Workover Fishing Tool series: releasing spear,junk basket, overshot,reversing sub,die collar,
fishing tap etc.
Cangzhou Lockheed Drilling Equipment Parts Co., is located at the center of Beijing-Tianjin-Hebei-Shandong-Henan-Region which is adjacent to National Expressway No.106,
166km away from Beijing, 110km away from Tianjin and 35km away from Baiyangdian, the Pearl of Huabei Area. More convenient transport,faster delivery,and more trustful enterprise is your best
choice.
Our goal: Strive for Perfection and Win by Quality.
