Cangzhou Lockheed Drilling Equipment Parts Co.,Ltd
1.Profile of company
Established in 1998, Cangzhou Lockheed Drilling Equipment Parts Co., Ltd. is a professional technology-oriented enterprise specialized in the production drilling equipments and tools,which is one of the leading corporations of drilling tools and workover fishing tool manufacturing industry. Including three series with full model types,as follows:
Drilling Bit series: rock roller bit,tricone bit,pdc drill bit,single bit,cone bit and hole opener;
Drilling Equipment Parts series: manual tong,elevator,slips,stabilizer;
Workover Fishing Tool series: releasing spear,junk basket, overshot,reversing sub,die collar, fishing tap etc.
Our goal:Strive for Perfection and Win by Quality.
2.Product detail
Casing centralizers
Centralizers are an integral part of the cementing process. They provide the mechanism that centers the casing in the hole and allows uniform cement flow around the casing to help protect it at all points. Several styles of centralizers are available for matching different well specifications and hole sizes, including turbulence generating designs that help clean the annulus and distribute the cement more evenly and uniformly. All models offer ample clearance for fluid passage and are extra effective in centering the casing, even in highly deviated holes and improve cement flow by reducing the effects of channeling.

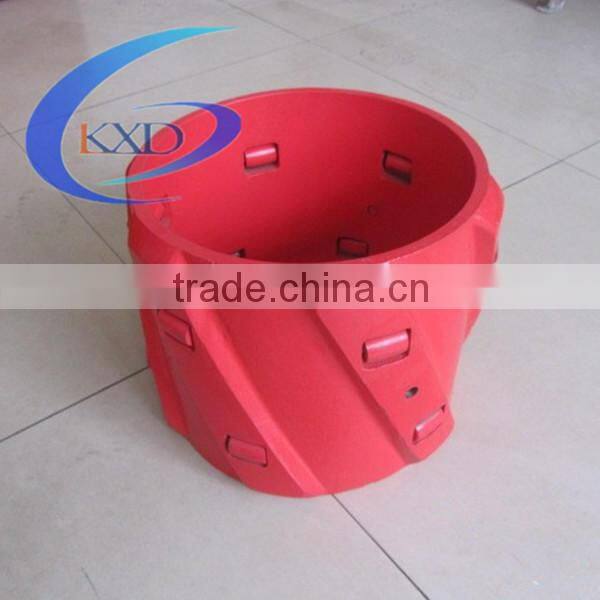

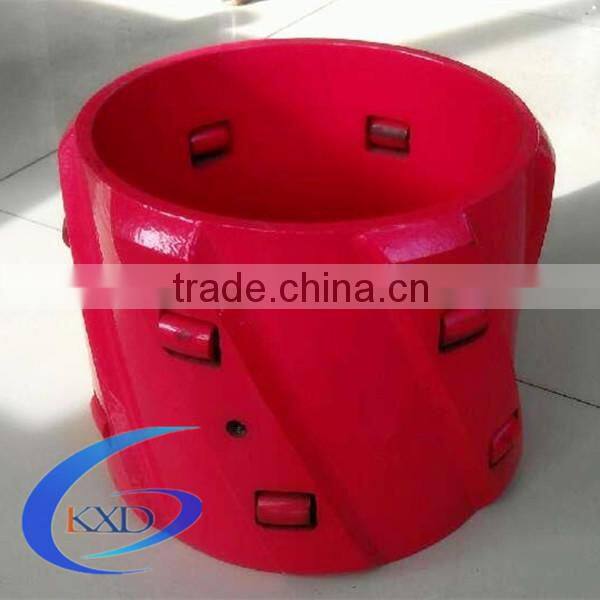

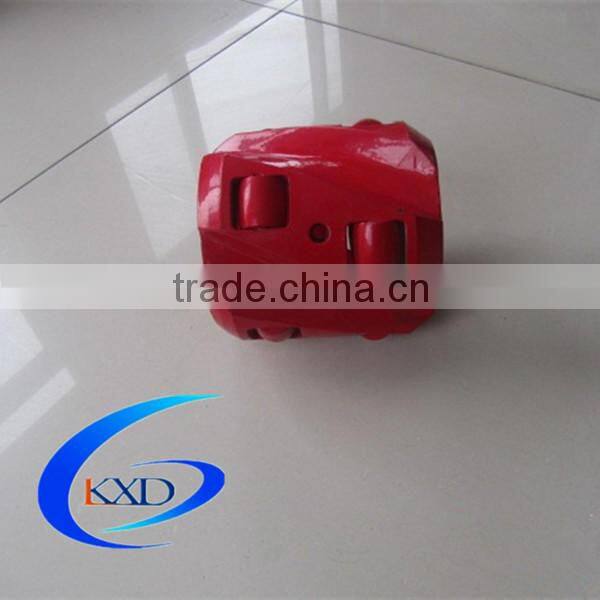

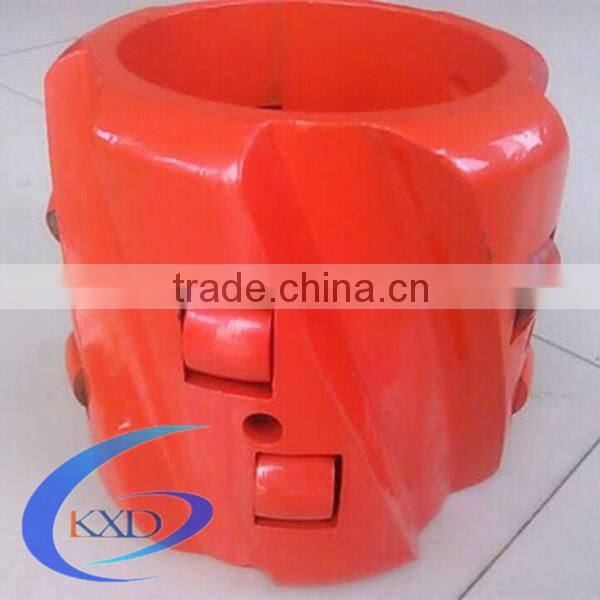

The Roller Casing Centralizer consists of rigid body, on which machined five spiral blades or straight blades. There are three modified alloy steel, fully heat treated rollers fixed on every blade. Because of rolling friction between the rollers and inside of well or casing, the capability of the RCR Centralizer is better than others of all. Recommend to use the tool in deviated holes and horizontal hole.
Features
1. Every attachment is pressed into shape by moulding instead of welding and rivet.
2. 3-section force and restoring force conform to API standards.
3. Starting force and restoring force conform to API standards.
4. Easy-and-convenient to use.
5. Alternative turbulence plates can effectually improve displacement efficiency.
Technical Parameters
Non-weld casing centralizer
Model (in) |
Hooping In-Dia. (mm) |
Hooping thickness (mm) |
Hooping Height (mm) |
Total Length (mm) |
Max. Out-Dia. (mm) |
Spring Pieces |
5-1/2*8-1/2 |
142-148 |
3-5 |
90-120 |
650±50 |
225±5 |
5 |
7*9-5/8 |
181-186 |
3-5 |
90-120 |
650±50 |
255±5 |
6 |
7*8-1/2 |
181-186 |
3-5 |
90-120 |
650±50 |
235±5 |
6 |
8-5/8*12-1/4 |
223-228 |
3-5 |
90-120 |
650±50 |
330±5 |
8 |
9-5/8*12-1/4 |
250-255 |
3-5 |
90-120 |
650±50 |
330±5 |
8 |
10-3/4*12-1/4 |
274-276 |
3-5 |
90-120 |
650±50 |
330±5 |
9 |
13-3/8*17-1/2 |
342-347 |
3-5 |
90-120 |
650±50 |
450±5 |
11 |
18-5/8*24 |
476±1 |
3-5 |
90-120 |
600±50 |
610±5 |
12 |
20*26 |
510±1 |
3-5 |
90-120 |
600±50 |
660±5 |
12 |
Weld casing centralizer
Model (in) |
Hooping In-Dia. (mm) |
Hooping Thickness (mm) |
Hooping Height (mm) |
Total Length (mm) |
Max. Out-Dia. (mm) |
Spring Pieces |
5-1/2*8-1/2 |
142-148 |
5-7 |
50-60 |
650±50 |
225±5 |
5 |
6*8-1/2 |
154-158 |
5-7 |
50-60 |
650±50 |
255±5 |
5 |
13-3/8*17-1/2 |
342-349 |
8 |
50-60 |
580 |
450±5 |
6 |
20*26 |
510-518 |
8 |
50-60 |
650±50 |
670±5 |
10 |
3.Product show

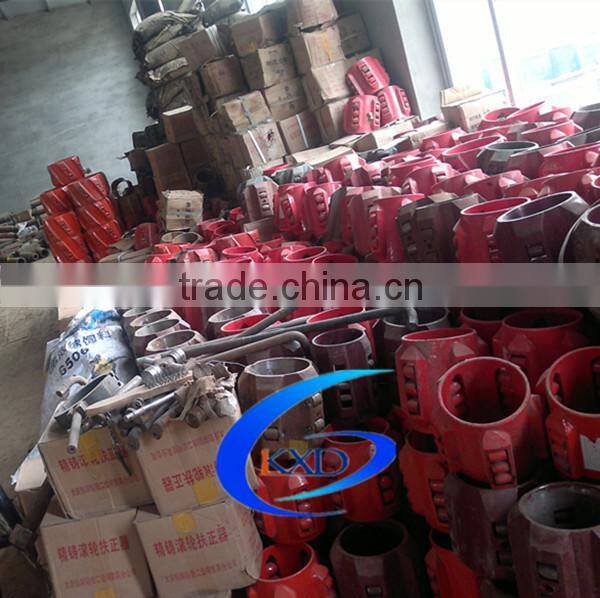

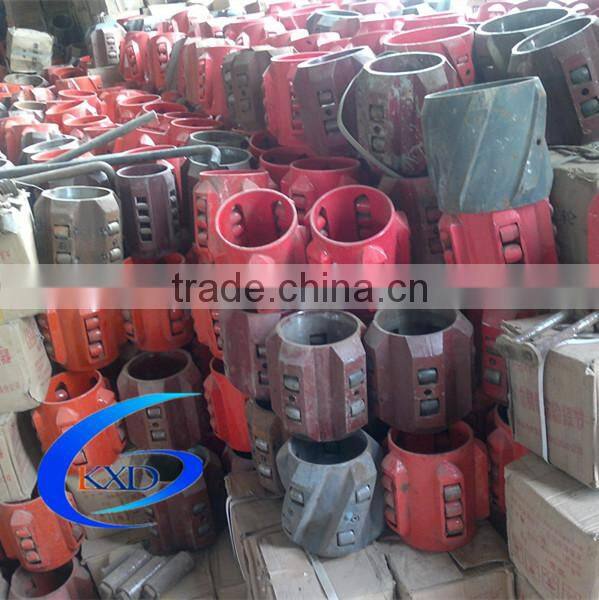

4.Other drill equipemnt show
5.Packing and transportation
6.Welcome to cantact me at any time!!!
Your satisfaction is our mission!!!
