Home > Products > stabilizer > Bow Spring Centralizer for Oilfield
Bow Spring Centralizer for Oilfield
- Tianjin
- T/T D/P D/A
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | Lockheed | |
| Model Number | Bow Spring Centralizer | Type | Other, Stabilizer, Bow Spring Centralizer | |
| Machine Type | Other, Drilling Equipment, api 7-1 drilling stabilizer | Certification | API | |
| Material | Other, Carbon Steel, Alloy steel | Processing Type | Forging | |
| Use | Other, Well Drilling, to deviated holes and horizontal holes |
Product Description

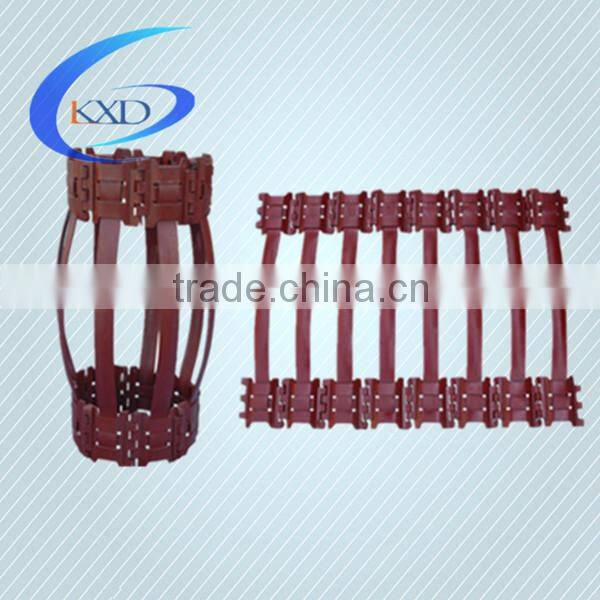

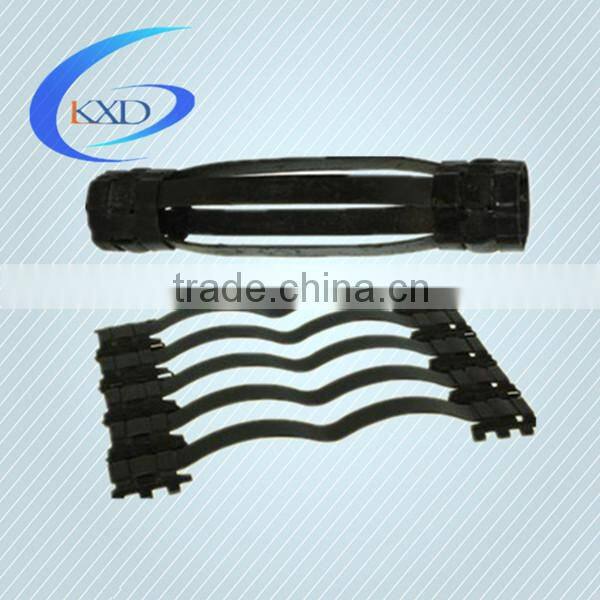

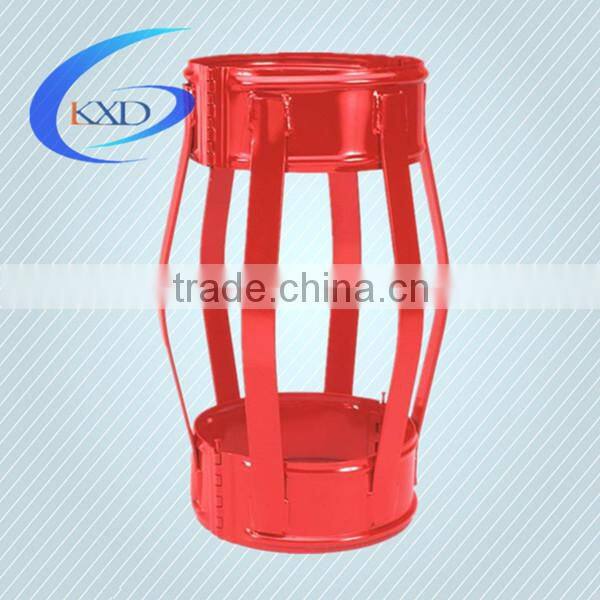

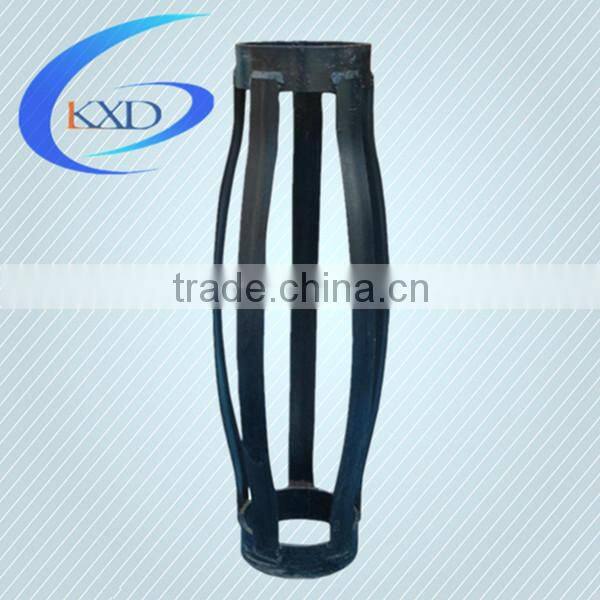

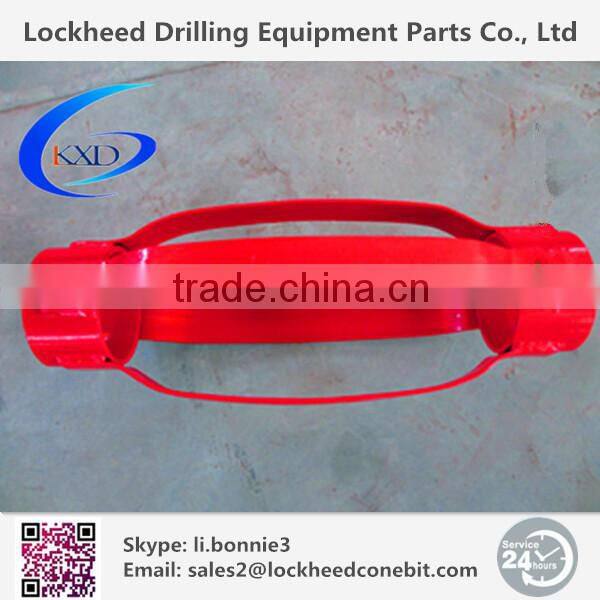

Bow Spring Centralizer for Oilfield
Cangzhou Lockheed Drilling Equipment Parts Co., Ltd. is a professional manufacturer of drilling equipments and tools which is located in Hejian City, the centre of the triangle of Beijing, Tianjin and Shijiazhuang, enjoying convenient transportation.
Our products Including below three series with full model types:
Drilling Bit: rock roller bit,tricone bit,pdc drill bit,single bit,cone bit and hole opener;
Drilling Equipment Parts: manual tong,elevator,slips,stabilizer;
Workover Fishing Tools: releasing spear,junk basket, overshot,reversing sub,die collar, fishing tap etc.
Our staff are professional and experienced. By the hard efforts and united cooperation, we have established a wide sale network. Striving for excellent quality, better price and perfect service. Welcome new and old customers to order.
Bow Spring Centralizer
1.reasonable price
2.quality assurance
3.factory direct
4.adequate stocks, fast delivery
About Bow Spring Centralizer
These Centralizers are designed for High Restoring Force and Low Starting Force for centralizing the casing pipe in a Vertical, Horizontal and Deviated well.
Premium quality Bows are made of special alloy steel and hot formed in totally controlled heat treatment plant to achieve the uniform hardness all over.
Spec and performance index of bow spring casing centralizer meet API Spec 10D. The woven centralizer is connected by pin when in use, the unfolded centralizer can be stacked flatly for convenient storage and transportation.
Features of Bow Spring Centralizer
2) End collars are designed with self-locking action, which are easy to assemble.
3) Undergo special coating process to prevent from rust
4) Can be shipped in half assembled condition for economy in shipping and storage costs.
5) Specification: 4"---20". Any special sizes or combination can available on request.
Specifications of Bow Spring Centralizer
1) Non-weld casing centralizer
| Model(in) | Hooping In-Dia.(mm) | Hooping thickness (mm) | Hooping height(mm) | Total Length(mm) | Max. Out-Dia.(mm) | Spring Pieces |
| 5-1/2*8-1/2 | 142-148 | 3-5 | 90-120 | 650±50 | 225±5 | 5 |
| 7*9-5/8 | 181-186 | 3-5 | 90-120 | 650±50 | 255±5 | 6 |
| 7*8-1/2 | 181-186 | 3-5 | 90-120 | 650±50 | 235±5 | 6 |
| 8-5/8*12-1/4 | 223-228 | 3-5 | 90-120 | 650±50 | 330±5 | 8 |
| 9-5/8*12-1/4 | 250-255 | 3-5 | 90-120 | 650±50 | 330±5 | 8 |
| 10-3/4*12-1/4 | 274-276 | 3-5 | 90-120 | 650±50 | 330±5 | 9 |
| 13-3/8*17-1/2 | 342-347 | 3-5 | 90-120 | 650±50 | 450±5 | 11 |
| 18-5/8*24 | 476±1 | 3-5 | 90-120 | 600±50 | 610±5 | 12 |
| 20*26 | 510±1 | 3-5 | 90-120 | 600±50 | 660±5 | 12 |
2) Weld casing centralizer
| Model(in) | Hooping In-Dia.(mm) | Hooping thickness mm) | Hooping height(mm) | Total Length(mm) | Max. Out-Dia.(mm) | Spring Pieces |
| 5-1/2*8-1/2 | 142-148 | 5-7 | 50-60 | 650±50 | 225±5 | 5 |
| 6*8-1/2 | 154-158 | 5-7 | 50-60 | 650±50 | 255±5 | 5 |
| 13-3/8*17-1/2 | 342-349 | 8 | 50-60 | 580 | 450±5 | 6 |
| 20*26 | 510-518 | 8 | 50-60 | 650±50 | 670±5 | 10 |
P.S.: Special requirements of different models can be customized.

Sincerely hope to cooperate with you.
Packing: Wooden case or as clients' request(standard export packing)

Shipping: By sea or by air for exporting goods.
1. How to order the products?
Answer:
Send the inquiry with detail item description or with Model number.
If there is no packing demand we take it as sea-way packing.
If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.
2. About lead time and shipping time?
Answer :
The lead time depend on quantity of order. Usually shipped by sea, small order or urgent order we can send you by air after received your agreement.
According the distance from china to your port, usually from China to European about 25 days. To West of American 20 days.
3.Can I expect a quality products?
Answer :
Yes. All our activities are accredited to ISO 9001:2008 and API, both in products and services, at the same time, mature production technology ensuring the quality satisfy international request.
Welcome visit our page, any need pls feel free to contact me.
I'm Bonnie, always at your service!
