Acrylic Sheet

Name: Acrylic Sheet
Brand: oursign
SKU: 105270367

US$ 2.5 - 3.2 MOQ: 500 Kilograms

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

oursign

Model Number:

OPMMA

Shanghai Oursign Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI/NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name oursign

Model Number OPMMA

Material Acrylic

Thickness 2~30mm

Size 1250*1850MM 1250*2450MM 2050*3050MM

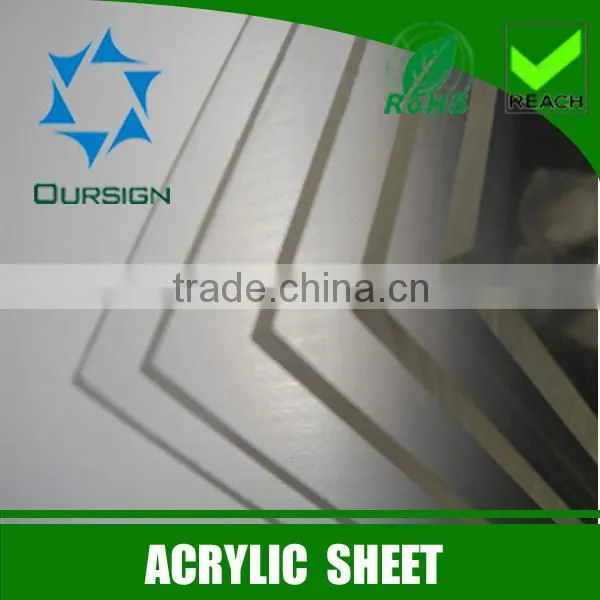

Acrylic Sheet / Plexiglass Sheet /PMMA Sheet

Specification:

Commodity	Acrylic sheet/plesiglass sheet/cast acrylic sheet
Dimensions	*12501850mm, 10502050mm 12502450mm, 20503050mm*
Thickness	2-30mm
Density	1.20g/cm3

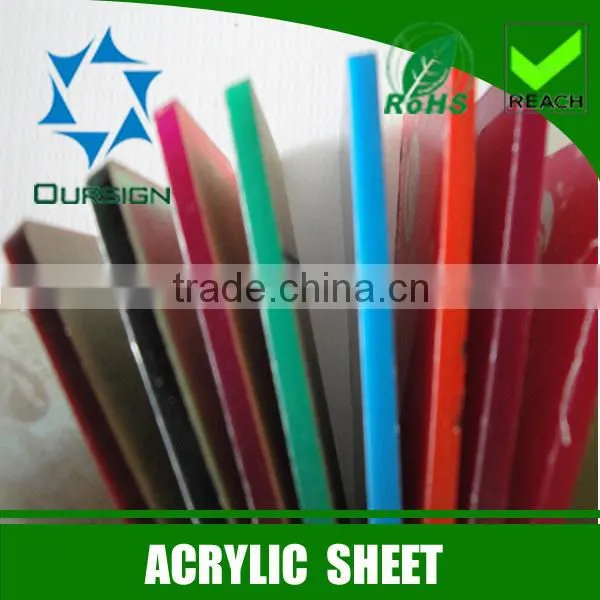

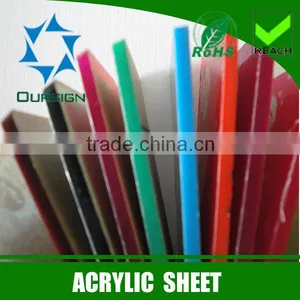

Colors	Clear, transparent/ white, opal white, black, etc
Raw material	PMMA
Features	1. excellent light transmittance.
	2. high mechanical strength
	3. weather proof
	4. non-toxic and chemical resistant.
	5. easily be processed

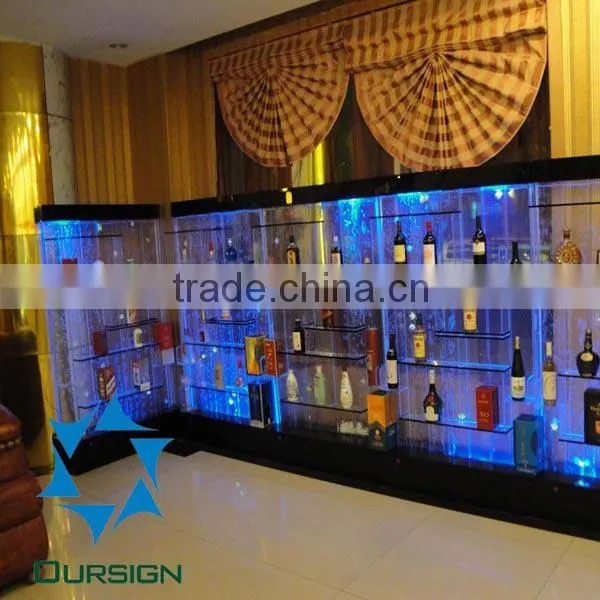

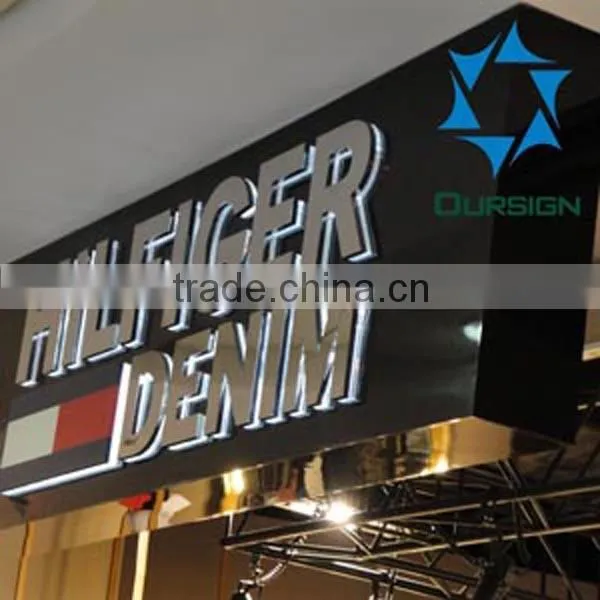

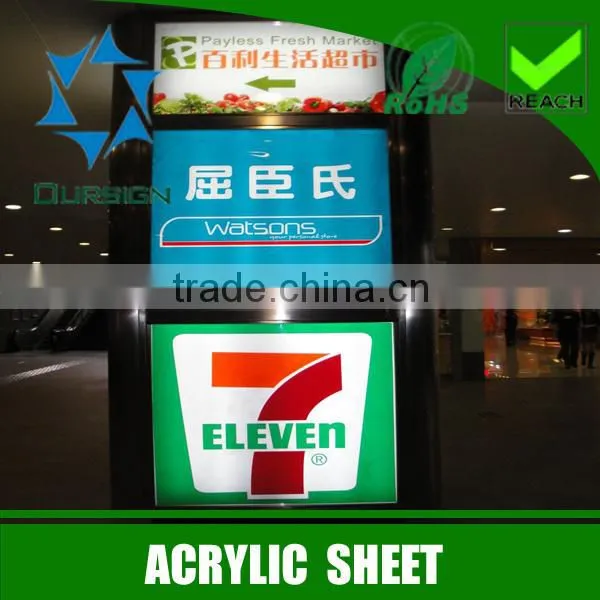

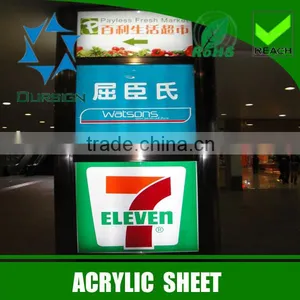

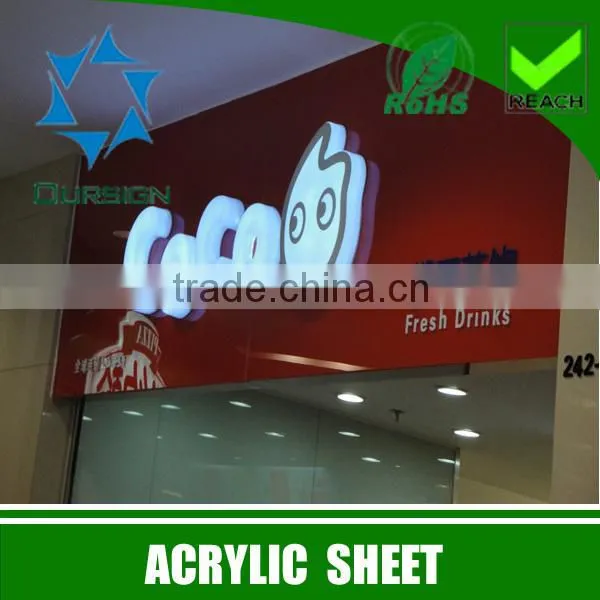

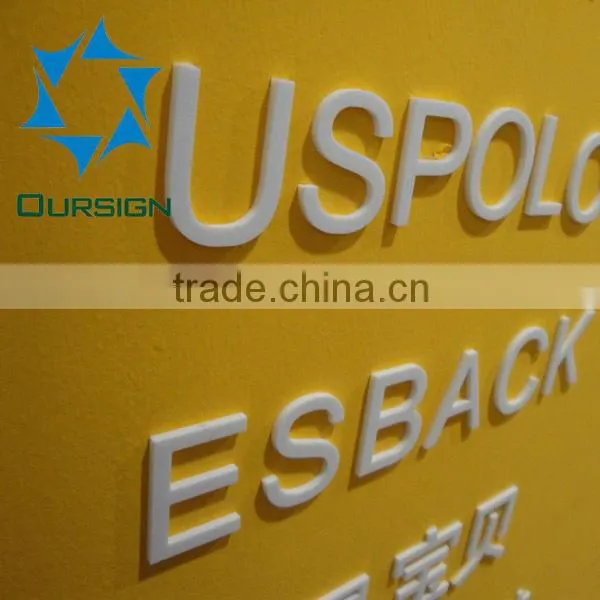

Application	1. Advertisement: blow molding board, CNC engraving materials, Laser engraving materials, sign board, logo and mark, etc.
	2. Furnitureoffice furniture, cabinet, bath cabinet, etc.
	3. Finishing Materialdecorative sheets, storage racks,room segments, etc.
	4. Handicrafts, toys, etc.

Mechanical Property:

Physical Property		Unit	Value
Optical	Light Transmittance	%	91
Optical	Refractive Index	%	1.49
Thermal	The application of temperature		-40~70
	Hot Forming Temp		140~180
	Heat Distortion Temp		87
	Coefficient Of Liner Thermal Expansion	1/	*1.710^-4**
	Specific Heat	kj/(kg.)	1.25~1.7
Mechanical	Specific Gravity(30/4)	g/cm³	1.19~1.2
	Tensile Strength	mpa	62~75
	compressive Strength	mpa	130
	Impact Strength	kj/m²	12.1~12.8
	Rockwell Hardness		95
Electrical	Surface Resistivity	Ω	10¹⁶
	20 Volume Resistivity	Ω.m	10¹⁵
	Flammability	mm/min	33
Miscellaneous	Water Absorption(24Hrs)	%	0.3
Miscellaneous	Odor		None
