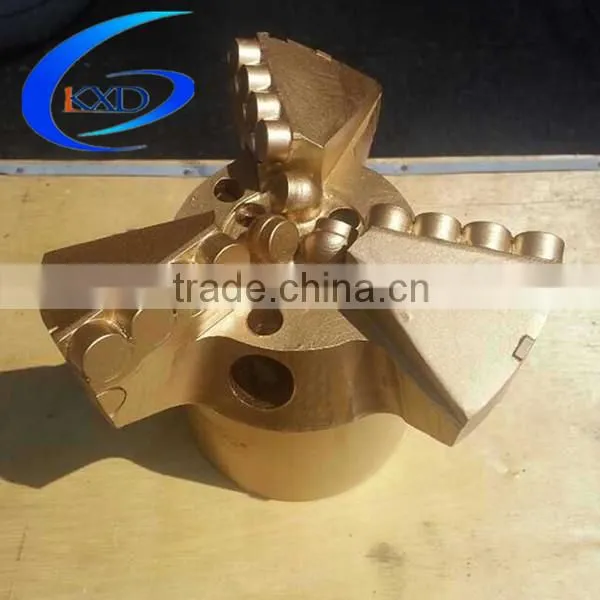

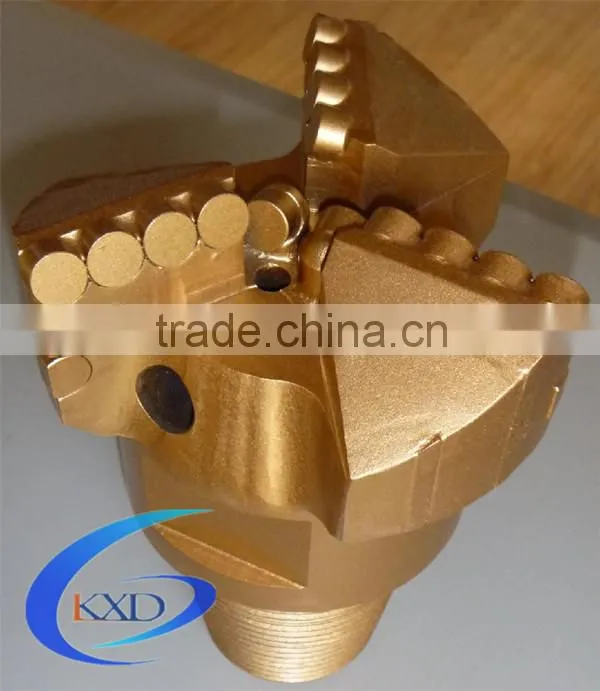

3 wings pdc drag bit drilling for groundwater
3 wings pdc drag bit
1.balanced force design
2.reasonable layout of PDC cutters
3.strong aggressiveness
4.high speed
Characteristics of 3 wings pdc drag bit :
-PDC cutters of different features are selected and bit profile design is optimized to suit different drilling
applications in different formations to satisfy different requirements when drilling soft to medium hard formations.
-Cutting structure is force balanced, non-symmetrical blade and wide gage are designed so that the bit
drills more stable and resulting longer working life of the bit.
-Better wear resistance and higher strength of the bit are guaranteed in regard to material and structure by
using matrix body material with self-owned intellectual property rights and combining FEA analysis technology.
-Hydraulic system of the bit is optimized using dynamic flow pattern simulation technology to enhance cleaning
and colling effects of the bit to effectively prevent bit from balling.
-CNC sintering process uses full automatic control/ Inside and outside temperature of the bit is monitored
during all procedures to fully embody material properties as well as ensure uniformity and stability of product
quality.
Application of 3 wings pdc drag bit :
3 blades PDC bit is used to penetrate the degassing hole, drain hole, and grouting hole of coal mine, water canservancy and hydropower, road construction, bridge and building.
1.Suit for drilling medium to medium-hard formations.
2.Evolute asymmetrical blade cutter design and balanced bit load so that bit whirl is prevented.
3.Composite gage protection and low torque design improve rate of penetration.
4.CFD hydraulic balance design results in better bit cleaning and cutting removal .
5.Combined utilization of high performance PDC compacts significantly prolongs bit life
6.Higher nozzle counts and/or fixed ports to best serve cleaning,cooling and cuttings evacuation requirements with available hydraulic flows.Allows for higher flow rates with minimal increase in pump pressure.
Feature:Diamonds are impregnated in the matrix behind the PDC cutters
Benefit:Increased footage drilled in abrasive applications.
3 wings pdc drag bit
Size |
¢28mm~¢300mm |
Application |
geological exploration, coalfield mining,water well drilling and water conservancy and hydropower, etc. |
Applicable Strata |
Soft and medium hard rocks, like Sandstone, Shale, Limestone, Conglomerate, Mable, etc. |
Features |
About 10 times useful life than Carbide drill bitAbout 4 times useful life than Diamond drill bit |
Specifications of 3 wings pdc drag bit
Specification diameter(mm) |
Size |
Cutting Wings |
Water Hole |
Threading |
|||
Dia(mm) |
Height(mm) |
Pillar Quantity |
Blade Quantity |
Quantity |
Quantity |
||
56 |
56 |
115 |
2 |
3 |
4 |
6--8 |
Square Taper Lock |
60 |
60 |
115 |
2 |
3 |
4 |
6--8 |
|
65 |
65 |
115 |
2 |
3 |
4--5 |
6--8 |
|
75 |
75 |
125 |
2 |
3--4 |
4--6 |
6--10 |
|
78 |
78 |
128 |
2 |
3--4 |
4--6 |
6--10 |
|
85 |
85 |
128 |
2 |
3--4 |
4--6 |
8--12 |
|
94 |
94 |
128 |
2 |
3--4 |
4--8 |
8--12 |
|
113 |
113 |
135 |
3 |
3--4 |
6--8 |
8--12 |
|
133 |
133 |
135 |
3 |
3--4 |
6--8 |
8--12 |
|
Ps: Special design is available upon your requirement.
3 wings pdc drag bit :
Other tools we also supply:
Packing: Wooden case or as clients' request.
Shipping: By sea or by air for exporting goods.
Cangzhou Lockheed Drilling Equipment Parts Co., Ltd. is a professional technology-oriented
enterprise specialized in the production drilling equipments and tools, which is one of
the leading corporations of drilling tools and workover fishing tool manufacturing
industry. Including three series with full model types,as follows:
Drilling Bit series: rock roller bit,tricone bit,pdc drill bit,single bit,cone bit and hole opener;
Drilling Equipment Parts series: manual tong,elevator,slips,stabilizer;
Workover Fishing Tool series: releasing spear,junk basket, overshot,reversing sub,die collar, fishing tap etc.
Cangzhou Lockheed Drilling Equipment Parts Co., is located at the center of Beijing-Tianjin-Hebei-Shandong-Henan-Region which is adjacent to National Expressway No.106,
166km away from Beijing, 110km away from Tianjin and 35km away from Baiyangdian, the Pearl of
Huabei Area. More convenient transport,faster delivery,and more trustful enterprise is your best choice.
Our goal: Strive for Perfection and Win by Quality.
I'm Bonnie at your service at any time!
PLs add the information in your inquiry:
1) the size of the tricone bit
2) the IADC tooth model, like 537G
3) the drilling information of the layer
4) quantity.
