Chevron Drag Bits for Water Well Drilling

1.reasonable price
2.strong aggressiveness
3..high clearness speed
4.adequate stocks

chevron drag bits for water well drilling

Drag Bits also named blade bits, with a Tungsten Carbide inserts on the blades.They are usually designed for use in soft formations such as sand, clay, or some soft rock.Their uses include drilling water wells, mining, geothermal, environmental and exploration drilling.Whenever possible, they should be used to drill pilot holes, for they produce cuttings are easiest to log.Normally drag bits are 3 wings, but we can make 4 or 5 wings following your drawings or samples. Many special designs are available upon your request.

Other than PDC bits, drilling drag bits have the lowest cost per bit. Drilling drag bits are a rotary drill bit built with a steel body and tungsten carbide teeth.

These bits will out preform other more expensive bits if used appropriately. Drilling drag bits are extremely popular choice for seismic drilling, blast hole drilling and geothermal drilling applications. For best results adjust the rotational speed to 50% less than what you would normally use for a tricone bit of the same size and reduce the weight on bit by the same amount.

Description of chevron drag bits for water well drilling :
A drag bit is simply a series of blades (usually three or four in number) which produce a shearing

action when rotated. They are comparatively inexpensive due to the lack of moving parts and theycan penetrate softer formations such as stiff clays and mudstones very quickly.The drag bit

usually used in very soft to medium formation when the dth hammer as the tricone bit, lose of

their effectiveness.The cleaning of the hole is realized by the injection of air or water.

There are two forms of drag bits:
- "Step" type for soft grounds
- "Chevron" type for medium hard grounds

Specification of chevron drag bits for water well drilling :

1) Drag bits are made according to API standard or no thread standard just welding.

2) Various step and chevron drag bits are available from 3 inch to 17 1/2 inch. (normal small size are 3”,3 3/4”,3 7/8”,4 3/4”,4 5/8”,5 7/8”,8 1/2" to 17 1/2"and so on).

3) There is very good feedback from our customers because of the quality and price.

4) Different drag bits can be made according to your drawings or samples.

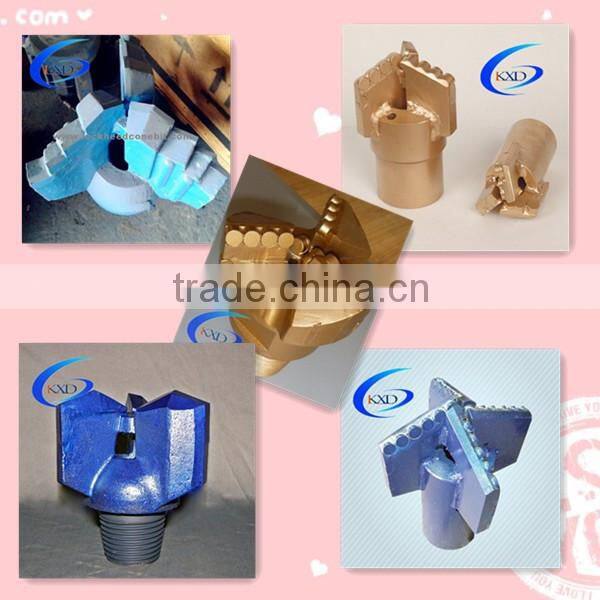

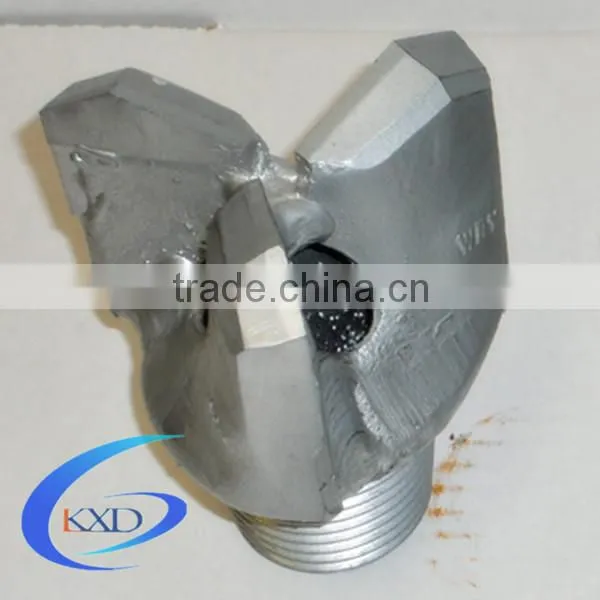

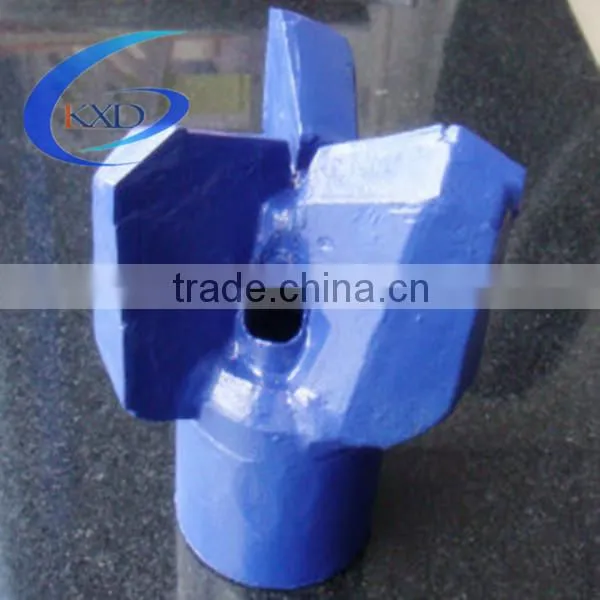

chevron drag bits for water well drilling :
