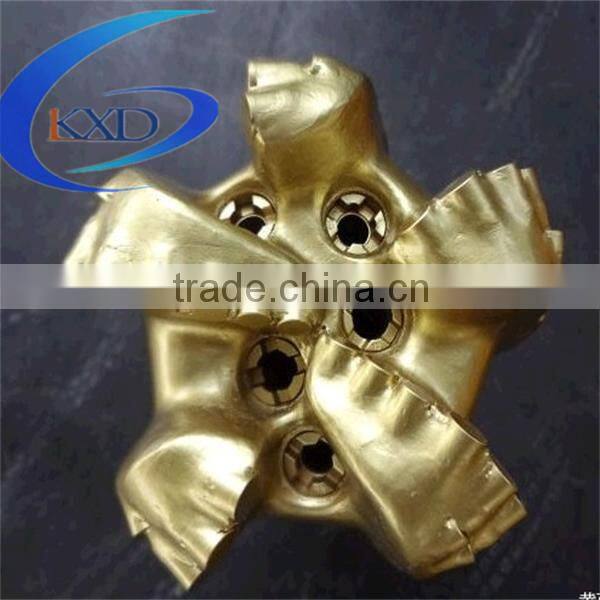

M323 IADC code PDC bit
- 300 Piece / Pieces per Month
- Tianjin
- T/T D/P D/A
- API-7-1 Standard single cone drill bit
- 6 7 11 12 degree Diameter 32mm Taper Knock off drill bit
- Oil Well Api Oilfield Fishing Tool Overshot Grapple Assembly/Oil Well Magnetic Fishing Head/Cable Righting Fishing Head
- Drop Shipping API Oilfield Releasing Overshot 4 11/16" Oil Fishing Tools LT119
- API compliant fishing tool overshot for oil field downhole work
- Oil Well fishing tool sucker rod overshot/circulating overshots
Product Details
Place of Origin: | China | Brand Name: | Lockheed | Model Number: | IADC code pdc bit |
Type: | Drill Bit | Machine Type: | Drilling Equipment | Certification: | API |
Material: | Carbide | Processing Type: | Forging | Use: | Other, Well Drilling, well drilling |
Product Description
M323 IADC code PDC bit
IADC code PDC bit
1.balanced force design
2.reasonable layout of PDC cutters
3.strong aggressiveness
4.high speed
IADC code PDC bit:
Characteristics:
-PDC cutters of different features are selected and bit profile design is optimized to suit different drilling
applications in different formations to satisfy different requirements when drilling soft to medium hard formations.
-Cutting structure is force balanced, non-symmetrical blade and wide gage are designed so that the bit
drills more stable and resulting longer working life of the bit.
-Better wear resistance and higher strength of the bit are guaranteed in regard to material and structure by
using matrix body material with self-owned intellectual property rights and combining FEA analysis technology.
-Hydraulic system of the bit is optimized using dynamic flow pattern simulation technology to enhance cleaning
and colling effects of the bit to effectively prevent bit from balling.
-CNC sintering process uses full automatic control/ Inside and outside temperature of the bit is monitored
during all procedures to fully embody material properties as well as ensure uniformity and stability of product
quality.
Application
1.Suit for drilling medium to medium-hard formations.
2.Evolute asymmetrical blade cutter design and balanced bit load so that bit whirl is prevented.
3.Composite gage protection and low torque design improve rate of penetration.
4.CFD hydraulic balance design results in better bit cleaning and cutting removal .
5.Combined utilization of high performance PDC compacts significantly prolongs bit life
6.Higher nozzle counts and/or fixed ports to best serve cleaning,cooling and cuttings evacuation requirements with available hydraulic flows.Allows for higher flow rates with minimal increase in pump pressure.
Feature:Diamonds are impregnated in the matrix behind the PDC cutters
Benefit:Increased footage drilled in abrasive applications.
Product Description-----IADC code PDC bit:
1. Cutting structure is force balanced and bit blade is asymmetrically designed so that the load on bit is balanced that resulting better stability of the bit.
2. Main cutter are high performance PDC cutters to insure service life of the bit while improving ROP.
3. Cutter exposure is optimized to insure the bit can achieve higher ROP is soft to medium formations.
4. Shock absorbers are designed to make the bit capable of drilling through formations with hard strigers.
5. Hydraulic system of the bit is optimized using dynamic flow pattern simulation technology to enhance cleaning and cooling effects of the bit to effectively prevent bit from balling.
Bit type | Main bit size(mm) | Rock coefficient | |
PDC core drill bit | Single pipe | 75/54.5 94/74 113/89 113/109 153/129 | 1-18 |
Two-pipes | 75/54.5 94/68 | ||
PDC center drill bit | Concave 3 wing bit | 60 75 94 113 133 | 1-18 |
Arc pillar
| 60 75 94 113 133 | 4-18 | |
Many wing scraper | 60 75 94 113 133 133 153 173 190 215 | 1-6 | |
PDC Indexable drill bit | 153/94 153/113 190/153 190/113 | 1-18 |
IADC code PDC bit specifications
APICONN.(in):2 3/8 2 7/8 4-1/2,6-5/8,7-5/8
Cutter Size:1308MM,1613MM,1616MM,1619MM,1919MM
IADC:M123/122
IADC:M223/243/232
IADC:M323/333/343/332
IADC:M423
IADC:M841
IADC:S223,323(Steel body)
Size | Number of Blades | Cutter Size | API Conn |
5 1/2” | 3 Blade | 13mm | 2 7/8”API REG |
5 5/8” | Flat Face | 13mm | 2 7/8”API REG |
5 5/8” | 3 Blade | 13mm | 2 7/8”API REG |
5 5/8” | 3 Blade | 13mm | 3 1/2”API REG |
5 7/8” | Flat Face | 13mm | 3 1/2”API REG |
5 7/8” | 5 Blade | 13mm | 3 1/2”API REG |
6” | 5 Blade | 13mm | 3 1/2”API REG |
6 1/8” | 5 Blade | 13mm | 3 1/2”API REG |
6 1/4” | 5 Blade | 13mm | 3 1/2”API REG |
6 1/2” | 5 Blade | 13mm | 3 1/2”API REG |
6 3/4” | 5 Blade | 13mm | 3 1/2”API REG |
7 7/8” | 5 Blade | 13mm/16mm | 4 1/2”API REG |
7 7/8” | 6 Blade | 13mm/16mm | 4 1/2”API REG |
8 1/2” | 5 Blade | 13mm/16mm | 4 1/2”API REG |
8 1/2” | 6 Blade | 13mm/16mm | 4 1/2”API REG |
8 3/4” | 5 Blade | 13mm/16mm | 4 1/2”API REG |
8 3/4” | 6 Blade | 13mm/16mm | 4 1/2”API REG |
9 7/8” | 6 Blade | 16mm | 6 5/8”API REG |
11” | 6 Blade | 16mm | 6 5/8”API REG |
12 1/4” | 6 Blade | 16mm | 6 5/8”API REG |

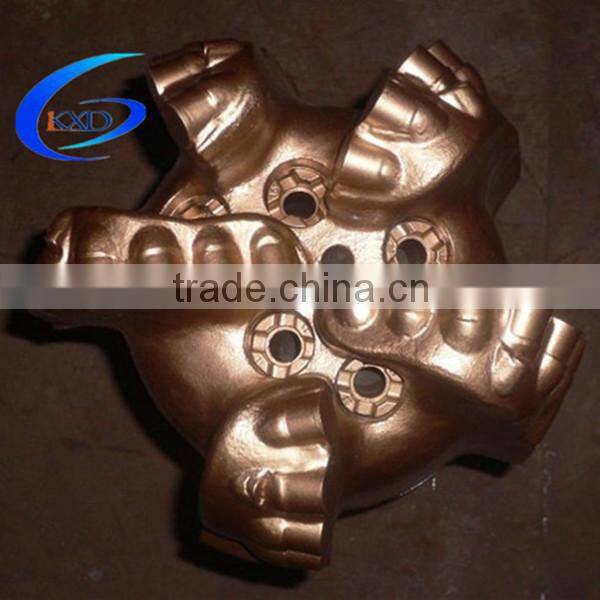

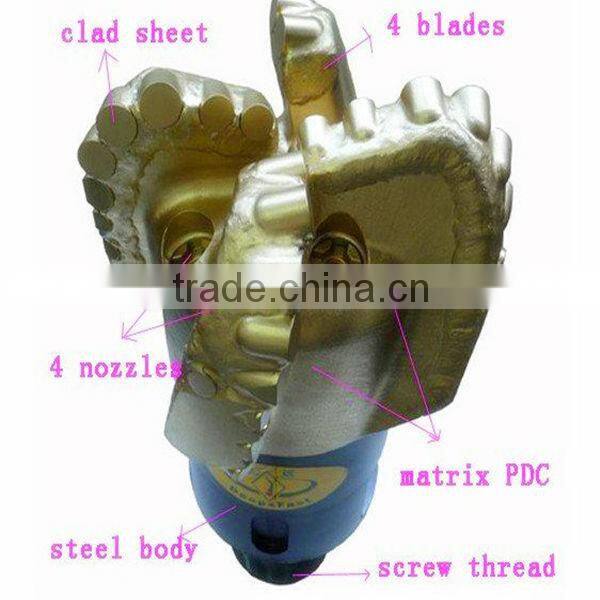

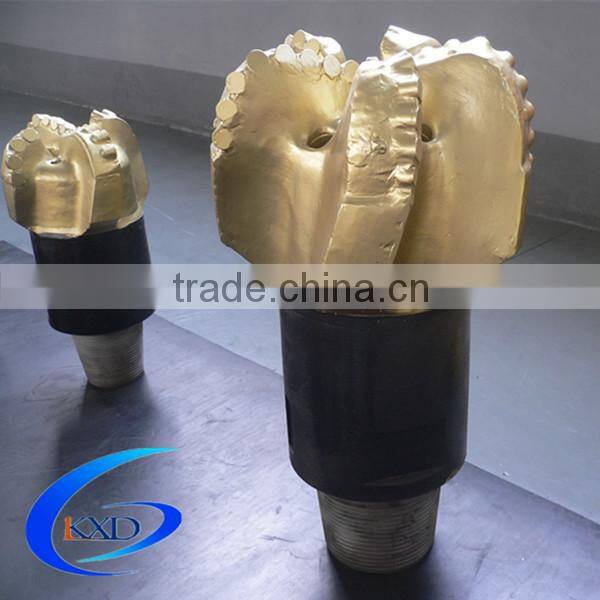

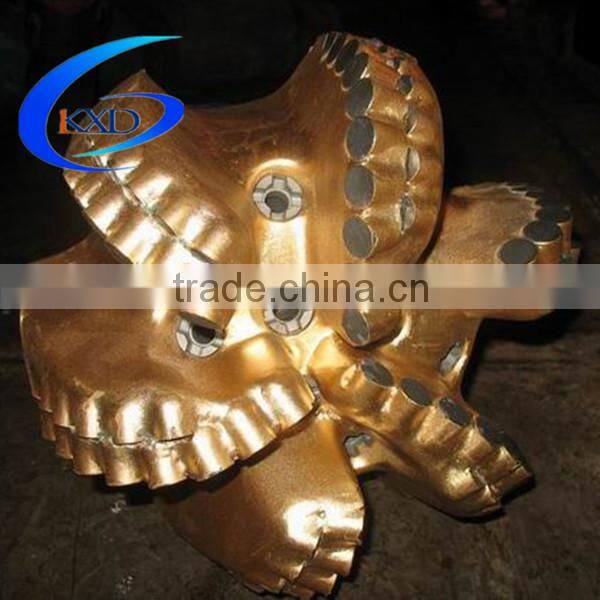

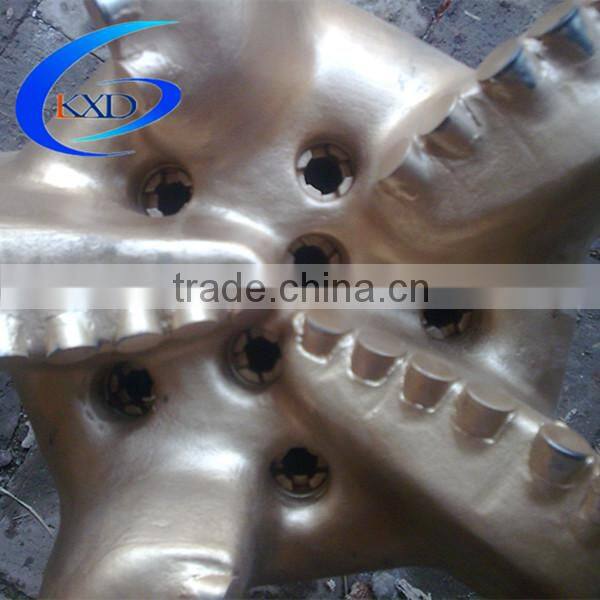

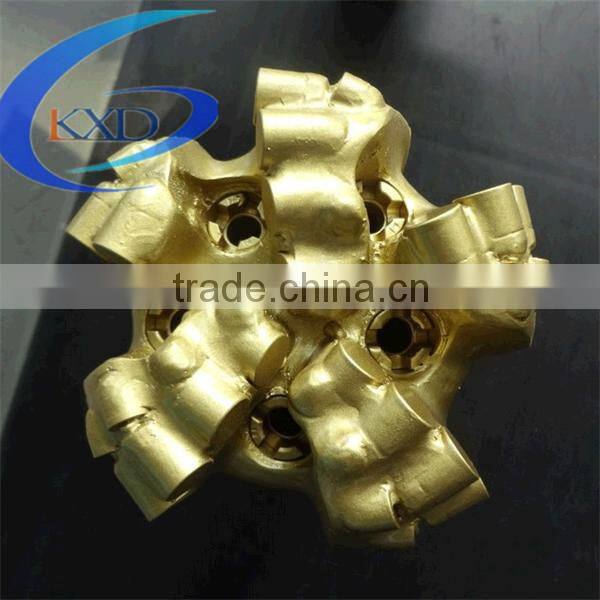

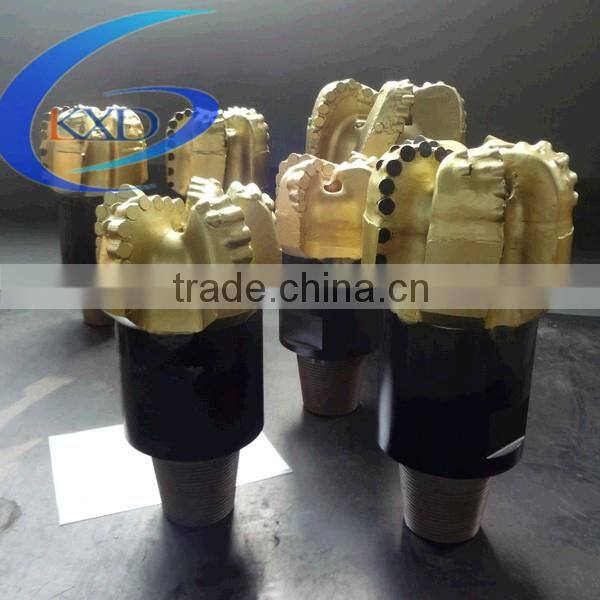

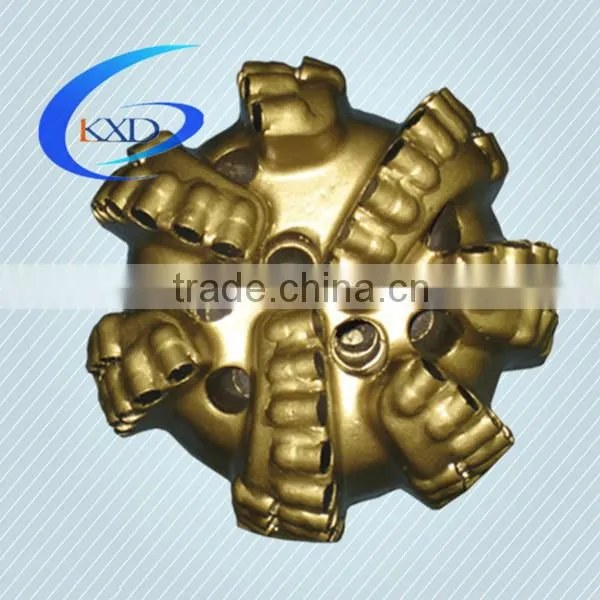

Product Show:
Other tools we also supply:
Packing: Wooden case or as clients' request.
Shipping: By sea or by air for exporting goods.
Cangzhou Lockheed Drilling Equipment Parts Co., Ltd. is a professional technology-oriented
enterprise specialized in the production drilling equipments and tools, which is one of
the leading corporations of drilling tools and workover fishing tool manufacturing
industry. Including three series with full model types,as follows:
Drilling Bit series: rock roller bit,tricone bit,pdc drill bit,single bit,cone bit and hole opener;
Drilling Equipment Parts series: manual tong,elevator,slips,stabilizer;
Workover Fishing Tool series: releasing spear,junk basket, overshot,reversing sub,die collar, fishing tap etc.
Cangzhou Lockheed Drilling Equipment Parts Co., is located at the center of Beijing-Tianjin-Hebei-Shandong-Henan-Region which is adjacent to National Expressway No.106,
166km away from Beijing, 110km away from Tianjin and 35km away from Baiyangdian, the Pearl of
Huabei Area. More convenient transport,faster delivery,and more trustful enterprise is your best choice.
I'm Bonnie at your service at any time!
PLs add the information in your inquiry:
1) the size of the tricone bit
2) the IADC tooth model, like 537G
3) the drilling information of the layer
4) quantity.
