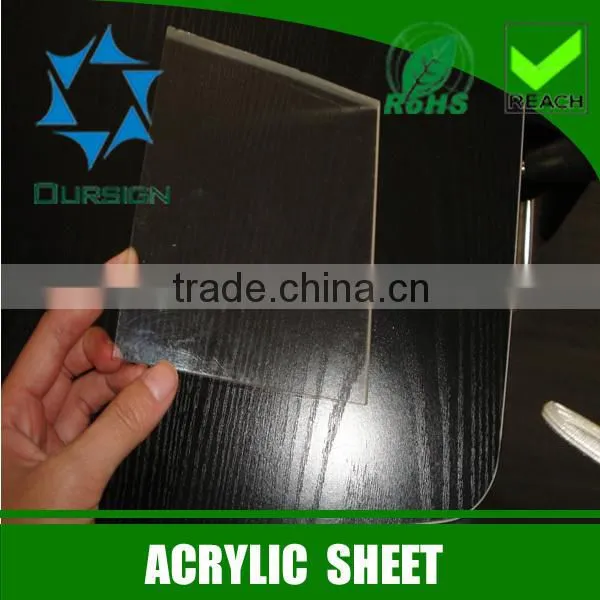

100% Virgin Lucite Material High Transmittance Acrylic Sheet

Name: 100% Virgin Lucite Material High Transmittance Acrylic Sheet
Brand: OURSIGN
SKU: 105267673

US$ 1.8 - 4.2 MOQ: 10 Kilograms

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

OURSIGN

Model Number:

OPMMA

Shanghai Oursign Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name OURSIGN

Model Number OPMMA

Size 1250mm*1850mm,1250mm*2450mm,, 1050*2050mm, 1250*1850mm, 1250*2450mm, 2050*3050mm

Shape Flat

Anti-wind Ability good

100% Virgin Lucite Material High Transmittance Acrylic Sheet

Product Description

What is Plexiglass Board?

1. Also name: Poly (methyl methacrylate), PMMA, Acrylic or Acrylic Glass as well as by the trade names: Plexiglas, Acrylite, Lucite and Perspex.

2. Excellent light transmittance,

3. Higher mechanical strength

4. Light- weight

5. Good weather resistance

6. non-toxic and chemical resistant.

7. easily be processed

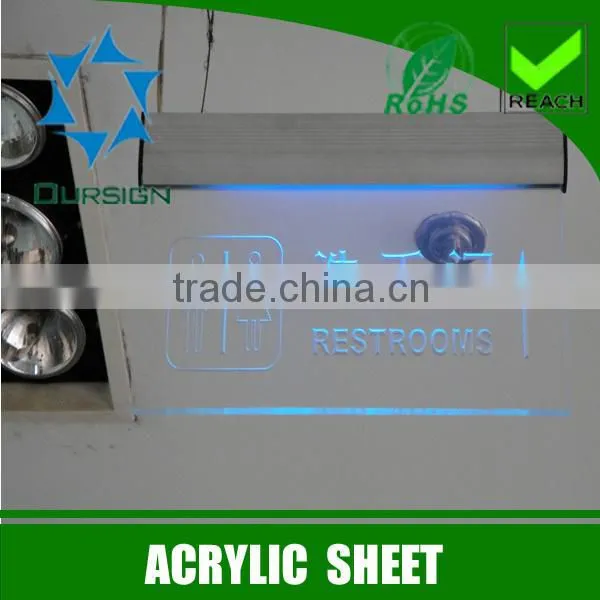

8. Widely used in Advertising Light Box, Signs, handicrafts, etc...

Why choose OURSIGN?

1, Exported it for 8 years.

2, SGS certificate.
3, 100% inspection.
4, Responsible from your enquiry to your using or after selling.

5, Professional on producing, loading and documents.

What's Specification of Plexiglass Board?

Name	Color	Width(mm) * Length(mm)	Density (g/cm3)	Thickness±0.2(mm)	MOQ:
Cast Acrylic Sheet	Transparent (Clear)	10502050 12501850 1250*2450	1.2	2	15PCS PER ITEM
		10502050 12501850 12502450 20503050	1.2	3~12
		10502050 12501850 12502450 20503050	1.2	12~20
		10502050 12501850 12502450 20503050	1.2	20~30

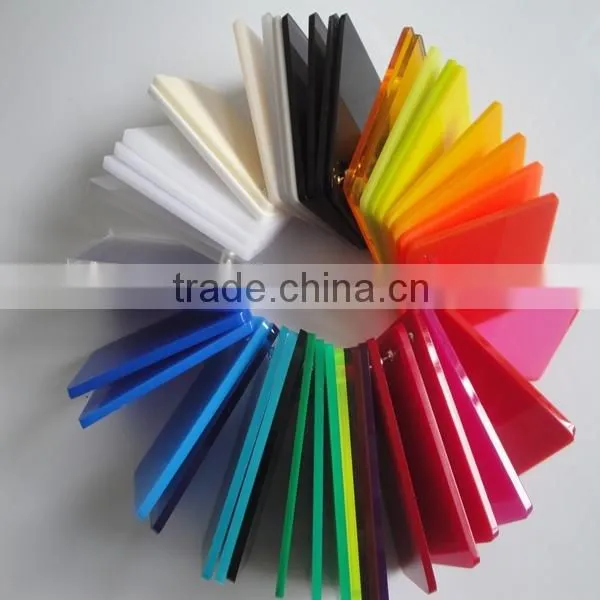

	White, Red, Yellow, Blue, Green, Black, Orange, Gray, Purple, etc.	10502050 12501850 1250*2450	1.2	2
		10502050 12501850 12502450 20503050	1.2	3~12
		10502050 12501850 12502450 20503050	1.2	12~20

What's the goods Mechanical Property Data?

Physical Property		Unit	Value
Optical	Light Transmittance	%	91
Optical	Refractive Index	%	1.49
Thermal	The application of temperature		-40~70
	Hot Forming Temp		140~180
	Heat Distortion Temp		87
	Coefficient Of Liner Thermal Expansion	1/	1.7*10^-4
	Specific Heat	kj/(kg.)	1.25~1.7
Mechanical	Specific Gravity(30/4)	g/cm³	1.19~1.2
	Tensile Strength	mpa	62~75
	compressive Strength	mpa	130
	Impact Strength	kj/m²	12.1~12.8
	Rockwell Hardness		95
Electrical	Surface Resistivity	Ω	10¹⁶
	20 Volume Resistivity	Ω.m	10¹⁵
	Flammability	mm/min	33
Miscellaneous	Water Absorption(24Hrs)	%	0.3
Miscellaneous	Odor		None
