Specifications
drills wells bit used sale1.Manufacturer
2.Customized as to the drawing
3.good quality and best price
4.good after-sales
oil well reamer bit/mining rock drill bit/drills wells used sale
1.Introduction about us:
We are Cangzhou Lockheed Drilling Equipment Parts Co., Ltd.
specializes in drill bits, drill pipe, for water well, oil field, construction, geothermal, directional boring,
Including three series with full model types,as follows:
Drilling Bit series: rock roller bit,tricone bit,pdc drill bit,single bit,cone bit and hole opener;
Drilling Equipment Parts series: manual tong,elevator,slips,stabilizer;
Workover Fishing Tool series: releasing spear,junk basket, overshot,reversing sub,die collar,
fishing tap etc.
Cangzhou Lockheed Drilling Equipment Parts Co., is located at the center of Beijing-Tianjin-Hebei-Shandong-Henan-Region which is adjacent to National Expressway No.106, 166km away from
Beijing, 110km away from Tianjin and 35km away from Baiyangdian, the Pearl of Huabei Area. More convenient transport,faster delivery,and more trustful enterprise is your best choice.Come on,join us.
Our goal:Strive for Perfection and Win by Quality.
2.Specifications about our tricone bit
TCI bits
1,Soft formations(417,437,517,537)
Features large chisel-shaped inserts to provide the highest penetration rate in the softest formations
such as shales, clays, limestone and sands.
2,Soft to medium formations(617,637)
Designed to drill effectively in formations such as hard limestone, dolomite, hard sands, and other
formations with hard cherty.
3,Medium to hard formations(737)
For extremely hard formations such as chert, granite, flint, and taconite. Features short,
closely-spaced inserts to ensure maximum penetration rate and wear resistance
Milled tooth bits
1,Soft formations(114-117)
These bits are designed to drill the softest formations such as soft shales,red beds, and clays,
with high durability and maximum penetration rates.
2,Soft to medium formations(121,124,126,134,136,137)
These bits are designed to drill formations such as shales, medium soft limestone, Medium
sandstone and other formations with intermittent hard streaks.
3,Medium to hard formations(213,214,215,217)
These bits are designed to drill formations such as hard sandstone, dolomite, and broken formations with hard cherty streaks
Main features:
1. Cutting Structure of this type sealed and non-sealed tci tricone bits :
The wear-resistance of teeth is enhanced with premium tungsten carbide hard facing on the tooth
surfaces for steel tooth bit.
2. Gauge Structure of this type tci tricone rock bits:
Multiple gauge protection with gauge trimmers on the heel and gauge inserts on the gauge surface of the cone, tungsten carbide inserts and hard facing on the shirttail increases gauge holding capability
and bearing life.
3. Bearing Structure of this type tci tricone rock bits :
High precision roller bearing with two thrust faces. Ball locks the cone. Thrust faces hard face with
wear resistant alloy. Abrasion resistance and seizure resistance of the bearing are improved.
1.CUTTING STRUCTURE
The durability of premium tungsten carbide inserts is improved with new formulas and new techniques for insert bit.The wear-resistance of teeth is enhanced with premium tungsten carbide hardfacing on the tooth surfaces for steel tooth bit.
2. GAUGE STRUCTURE
Multiple gauge protection with gauge trimmers on heel and gauge inserts on the gauge surface of the cone, tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability and bearing life.
3.BEARING STRUCTURE
High precision bearing with two thrust faces. Balls lock the cone.Hardface heard bearing surface. Cone bearing inlaid with friction-reducing alloy and then silver-plated. Abrasion resistance and seizure resistance of the bearing are improved and suitable for high rotary speed.
4.SEAL AND LUBRICATION
The advanced metal seal package consists of two metal seats and two elastic energizers. Compressed energizers ensure good contact being kept on two sealing surfaces of metal rings by elastic force, and achieve the bearing seal. In the drilling, metal seal are relatively dynamic, and the energizers are static. This will improve the reliability and durability of bearing seal. The pressure compensator system and advanced grease can greatly increase the lubricating reliability.

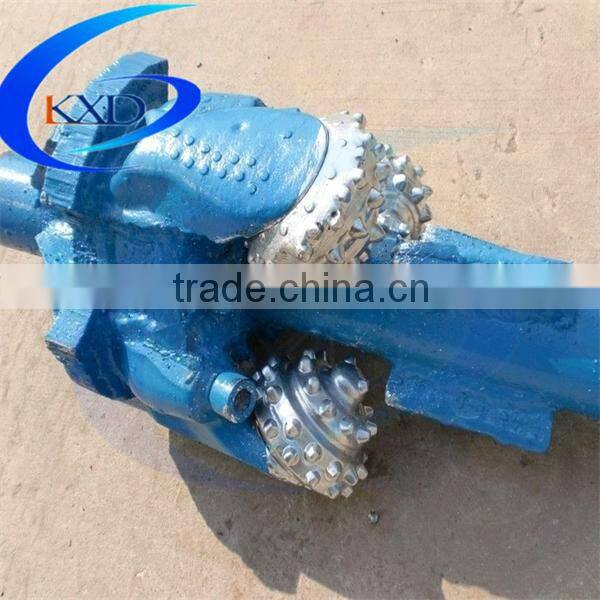

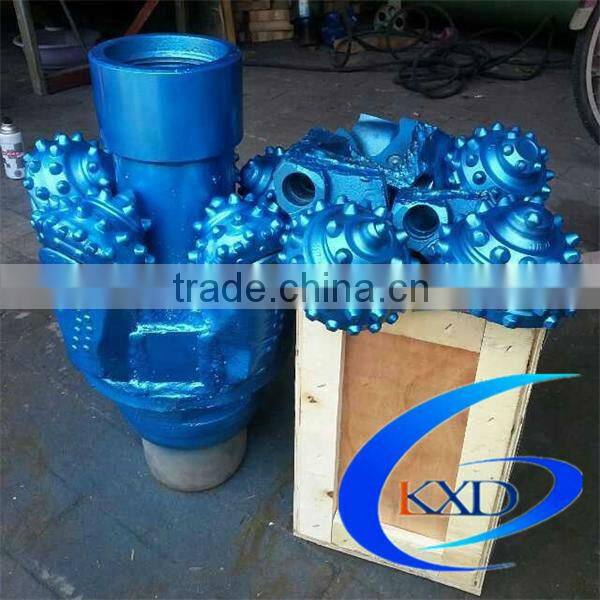

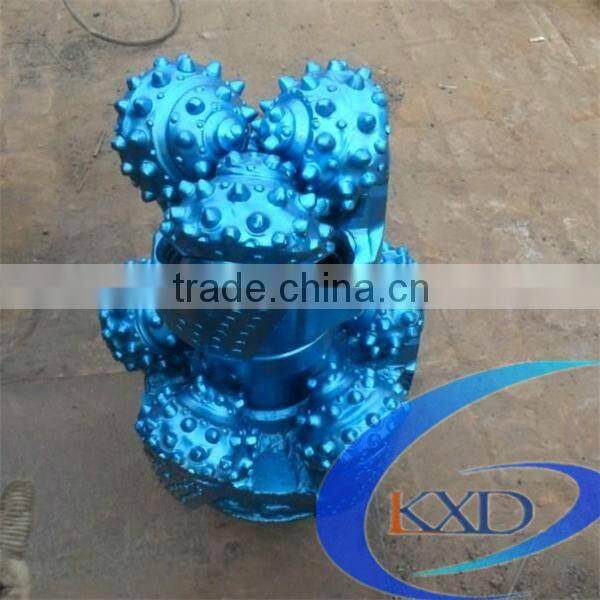

3.Products pictures
Packing and Shipping
After-sale Serives
How to order the products???
Please send the inquiry with detail item description or with Model number.
If there is no packing demand we take it as sea-way packing.
If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.
Can I expect a quality products???
Yes. of course.All our activities are accredited to ISO 9001:2008 and API, both in products and services, at the same time, mature production technology ensuring the quality satisfy international request.
PLs add the information in your inquiry.
1) the size of the tricone bit
2) the IADC tooth model, like 537G
3) PLs tell the drilling information of the layer.
4) PLs tell the quantity.
All Sizes and IADC Codes of Drill Bits Are Available.
Special Requirements of Different Models Can Be Customized.
