Cangzhou Lockheed Drilling Equipment Parts Co.,Ltd
1.Profile of company
Established in 1998, Cangzhou Lockheed Drilling Equipment Parts Co., Ltd. is a professional technology-oriented enterprise specialized in the production drilling equipments and tools,which is one of the leading corporations of drilling tools and workover fishing tool manufacturing industry. Including three series with full model types,as follows:
Drilling Bit series: rock roller bit,tricone bit,pdc drill bit,single bit,cone bit and hole opener;
Drilling Equipment Parts series: manual tong,elevator,slips,stabilizer;
Workover Fishing Tool series: releasing spear,junk basket, overshot,reversing sub,die collar, fishing tap etc.
Our goal:Strive for Perfection and Win by Quality.
2.Product detail
Sucker rod elevator is composed of elevator body and rod plates, which allow quick convert ion of the elevator body to various rod or pipe size. Additional saving is realized because work plates can be replaced instead of replacing the entire elevator. The basic elevator design provides excellent balance and non-tilt performance. Large access to the front and rear release levers assures easy, safe latching and unlatching. They are designed and manufactured according to API Spec 8C-specification for drilling and production Hoisting Equipment.
Features
(1) Elevators are cast alloy heat treated steel and should not be welded in the field;
(2) Check the levers for full engagement when closed around the pipe;
(3) The elevator can be maintained and inspected in accordance with API RP 8B “The recommended process of the inspection and maintenance of the elevator”;
(4) Overload is strictly forbidden. The elevator should be operated at not less than –20°C;
(5) Elevators are manufactured to operate in a vertical direction and should never be used for laying down or picking up pipe.
(6) Be sure that the elevator's bore coincides with the type rod , you are lifting and that there is a proper fit between the two.
(7) Inspect the interchangeable rod splates regularly for wear;
(8) The elevator body or bails from one elevator should never be changed with a elevator body or bails from another elevator.
Technical Parameters
|
Rod size |
Dia of Bore(mm) |
Max load (kN) |
Weight (kg) |
1/2-5/8 |
19 |
200 |
12 |
5/8 - 3/4 |
23 |
||
3/4 - 7/8 |
26 |
||
1 |
30 |
||
1.1/8 |
32 |
||
1.1/4 |
35 |
||
5/8 - 3/4 |
23 |
25 |
17 |
3/4 - 7/8 |
26 |
||
7/8-1 |
30 |

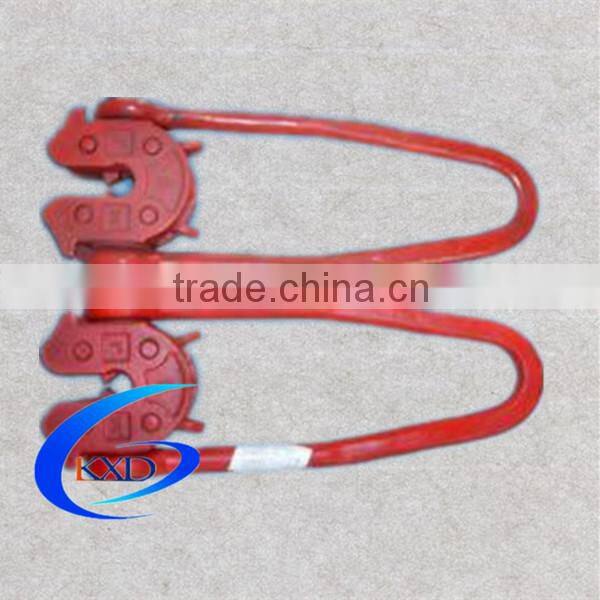

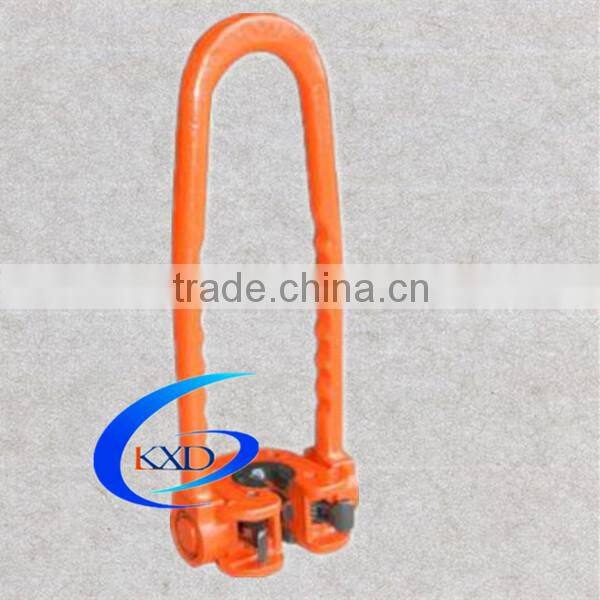

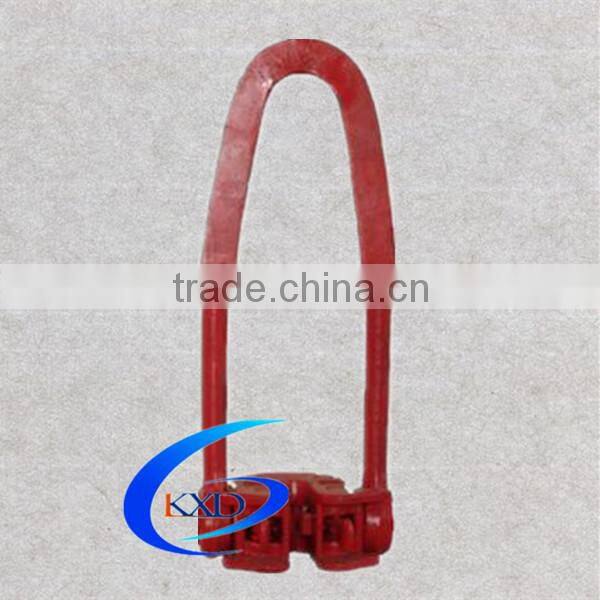

3.Product show

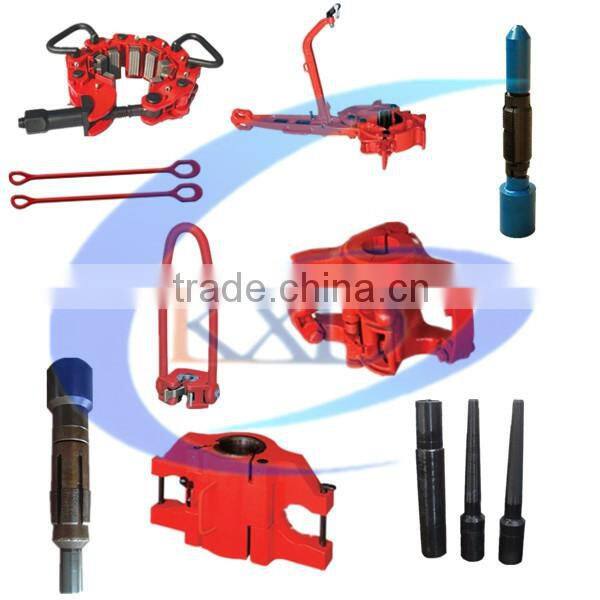

4.Other drilling equipment show
5.Packing and transportation
6.Welcome to contact me at any time!!!
Your satisfaction is our mission!!!
