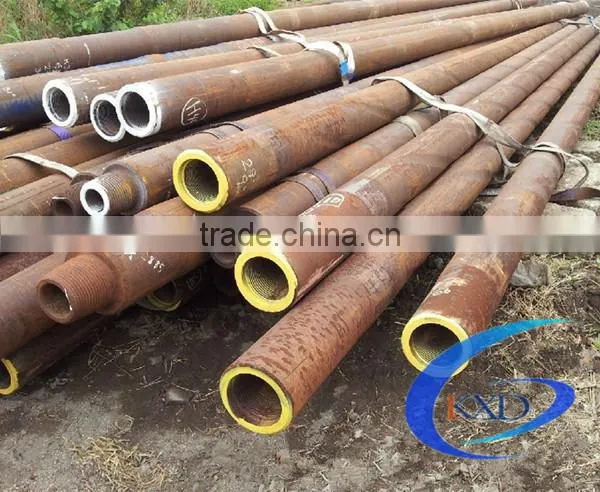

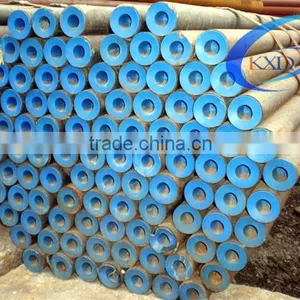

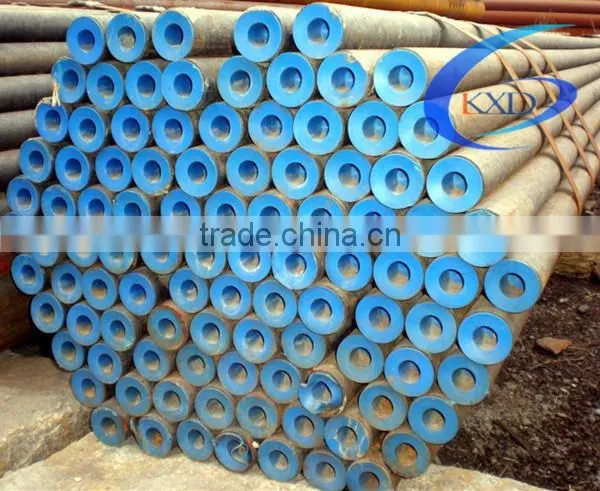

Cangzhou Lockheed supply used drill collars
with good price
used drill collars
1.Reliable bearing
2.reasonable price
3.quality assurance
4.Many models
Descriptions of used drill collars :
1) Standard: API 7-1
2) Size: 3 1/8"--11"
3) Length: 10'--31'
4) Material: AISI 4145H,AISI4145H mod, Mon-mag material
Drill collars is one of the most important product of oil drillings which mainly used to provide bit weight to drill so that drill pipe is in tension. Especially drill collar can keep drill bit centralized and hole track by large rigidity. Our drill collars are manufactured strictly from API Spec7-1 standard.
The details of used drill collars :
1. Material: Non magnetic steel
2. Shape: It is the round pipe with smooth surface and thick wall, and the both ends are machined screw
thread for connection.
3. Use: It is mainly used for the inspection in the process of petroleum drilling.
4. Standard: API Spec 7-1 or SY/T5144 Standard.
5. Inspection&Test: When producing, traceability are maintained from the receipt of raw material to completion of final products, and serial numbers are die-stamped on each workpiece body. During each manufacturing process, inspection and test are performed.
6. Magnetic permeability(MPS=1×105/4∏A/m)
1). Average: Ur<1.010.
2). Magnetic Field Gradient: ΔB≤0.05μT
Main specifications of used drill collars
Type |
OD(mm) |
ID(mm) |
L(m) ±152.4mm d |
DF(mm) ±0.4 |
NC23-31 |
79.4 |
31.8 |
9.14 |
76.2 |
NC26-35 |
88.9 |
38.1 |
9.14 |
82.9 |
NC31-41 |
104.8 |
50.8 |
9.14or9.45 |
100.4 |
NC35-47 |
120.6 |
50.8 |
9.14or9.45 |
114.7 |
NC38-50 |
127 |
57.2 |
9.14or9.45 |
121 |
NC44-60 |
152.4 |
57.2 |
9.14or9.45 |
144.5 |
NC44-60 |
152.4 |
71.4 |
9.14or9.45 |
144.5 |
NC46-62 |
158.8 |
57.2 |
9.14or9.45 |
149.2 |
NC46-62 |
158.8 |
71.4 |
9.14or9.45 |
150 |
NC46-65 |
165.1 |
57.2 |
9.14or9.45 |
154.8 |
NC46-65 |
165.1 |
71.4 |
9.14or9.45 |
154.8 |
NC46-67 |
171.4 |
57.2 |
9.14or9.45 |
159.5 |
NC50-70 |
177.8 |
57.2 |
9.14or9.45 |
164.7 |
NC50-70 |
177.8 |
71.4 |
9.14or9.45 |
164.7 |
NC50-72 |
184.2 |
71.4 |
9.14or9.45 |
169.5 |
NC56-77 |
196.8 |
71.4 |
9.14or9.45 |
185.3 |
NC56-80 |
203.2 |
71.4 |
9.14or9.45 |
190.1 |
6-5/8REG |
209.6 |
71.4 |
9.14or9.45 |
195.6 |
NC61-90 |
228.6 |
71.4 |
9.14or9.45 |
212.7 |
7-5/8REG |
241.3 |
76.2 |
9.14or9.45 |
223.8 |
NC70-97 |
247.6 |
76.2 |
9.14or9.45 |
232.6 |
NC70-100 |
254 |
76.2 |
9.14or9.45 |
237.3 |
8-5/8REG |
279.4 |
76.2 |
9.14or9.45 |
266.7 |
NC50-67 |
171.5 |
71.4 |
9.14or9.45 |
159.5 |
used drill collars
Packing: Iron shelves or others suited seashipment
Shipping: By sea or by air for exporting goods.
1.We will keep track of each customer to get the feedback of product quality and service. And we will make an amendment according to your feedback.
2.If the product size is wrong, we will send the right one freely.
3.We guarantee the high quality. Please feel free to contact us if you found any damage. We will solve the
problems ASAP.
4.We can provide product repair services.
The optimal price, the best quality, the fastest speed, the best service.Your every piece of advice to us we
will be very seriously treatment. If you have any suggestion to us, please surely tell us by mail in a timely
manner You are not just a visitor, but our partner in common progress.
Sincerely hope to cooperate with you.
Cangzhou Lockheed Drilling Equipment Parts Co., Ltd. is a professional manufacturer of drilling equipments
and tools which is located in Hejian City, the centre of the triangle of Beijing, Tianjin and Shijiazhuang, enjoyingconvenient transportation.
Our products Including below three series with full model types:
Drilling Bit: rock roller bit,tricone bit,pdc drill bit,single bit,cone bit and hole opener;
Well head tools: manual tong,elevator,slips,stabilizer;
Workover Fishing Tools: releasing spear,junk basket, overshot,reversing sub,die collar, fishing tap etc.
Our staff are professional and experienced. By the hard efforts and united cooperation, we have establisheda wide sale network. Striving for excellent quality, better price and perfect service. Welcome new and old
customers to order.
1. How to order the products?
Answer:
Send the inquiry with detail item description or with Model number.
If there is no packing demand we take it as sea-way packing.
If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.
2. About lead time and shipping time?
Answer :
The lead time depend on quantity of order. Usually shipped by sea, small order or urgent order we can send you by air after received your agreement.
According the distance from china to your port, usually from China to European about 25 days. To West of American 20 days.
3.Can I expect a quality products?
Answer :
Yes. All our activities are accredited to ISO 9001:2008 and API, both in products and services, at the same time, mature production technology ensuring the quality satisfy international request.
Welcome visit our page, any need pls feel free to contact me.
I'm Bonnie, always at your service!
