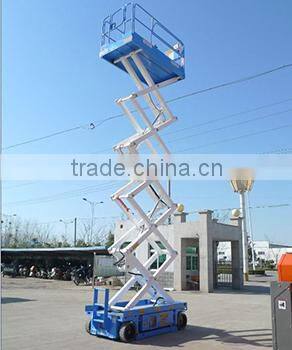

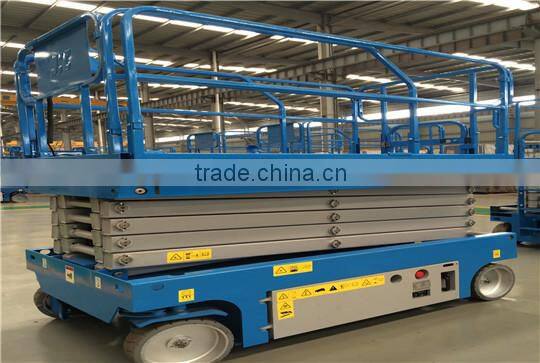

Weihua Customized 20m Lifting Electric Mobile Scissor Lift
Product Description
Mobile Self-propelled scissor lift is a kind of multifunctional hoisting equipment. The lifting height ranges from 1 meter to 20 meters. The platform dimension can be customized according to different needs. Self-propelled scissor lift is made of high strength alloy materials, forming a strong structure with very small deflection and swing even in high lifting height. With storage battery for power supply, it doesn’t need external power source, thus achieving a flexible application for anywhere needed. Controlled with a wired pressing button, even only one staff is able to operate to move forward, backward, steer, hoist up and lower down no mater standing on the platform or ground.
For outdoor poor working condition, rough terrain scissor lifts are ideal vehicles. Equipped with thick rib tires, four-wheel drive and traction system, it can provide 40% grade ability and stable, safety traveling. Self-balance jack achieve a precise self-balancing only by pressing the button.
Excellent mobility
Compact body can easily pass through single and double channel doorway or crowed working conditions..
Low noise
Suitable for noise-sensitive environment, such as schools, office buildings, hotels etc.
Easy maintenance
The fault diagnosis system together with the scissor lift is able to immediately detect the faults to facilitate maintenance or adjustment at site in time, reducing possible delay and improving working efficiency. Rotary type battery trays makes it easy to repair the power generator.
1. Automatic pothole protection system
2. Movable control box
3. Proportional control
4. Slide-out battery trays
5. All motion alarm
6. Roll-out extension platform
7. Grooves on underframe for easy transportation
8. LED battery condition indicator
9. Fault diagnostic system
10. Tilt level sensor
11. Manual platform lowering valve for emergency
12. Solid non-marking tires
Technical Parameter
| Product specifications | GTJZ06B | GTJZ08B | GTJZ10B |
|---|---|---|---|
| Working height | 7.8m | 10m | 12m |
| Platform height | 5.8m | 8m | 10m |
| Guardrail height-D2 | 1.105m | 1.105m | 1.105m |
| Overall width-A | 0.76m | 0.81m | 1.17m |
| Overall height-B | 2.18m | 2.34m | 2.48m |
| Overall length-C | 1.86m | 2.42m | 2.42m |
| Platform height Without handrail-D1 | 1.075m | 1.235m | 1.375m |
| Platform dimensions | 1.67m×0.74m | 2.27m×0.81m | 2.27m×1.17m |
| Platform extension length | 0.9m | 0.9m | 0.9m |
| Wheelbase-E | 1.31m | 1.87m | 1.87m |
| Ground clearance-F | 0.1m | 0.1m | 0.1m |
| Platform capacity | 230kg | 230kg | 320kg |
| Platform extension capacity | 113kg | 113kg | 113kg |
| Lift-up | 27s | 37s | 45s |
| Lift-down | 22s | 32s | 35s |
| weight | 1250kg | 2050kg | 2480kg |
| ground bearing capacity | 4.2kg/cm*cm | 4.8kg/cm*cm | 5.5kg/cm*cm |
| Drive speed (platform lowered) | 0-5km/h | 0-3.5km/h | 0-4km/h |
| Drive speed (platform elevated) | 0-0.8km/h | 0-0.8km/h | 0-0.8km/h |
| Turning radius inside/outside | 0m/1.64m | 0m/2.10m | 0m/2.14m |
Company Information
Weihua group mainly dealing in researching, developing and producing the lifting machinery, port machinery, reducer, etc, and also Weihua Group has become one of the most competitive enterprise group with the largest production and sales volume and the most influential brand in China’s crane industry.
Weihua Group also serves as Deputy Chief Director in the Heavy Machinery Industry Association, Material-handling Association and the Bridge Crane Sub-association of China;
It is also one of the first batches of National Technology Innovation Demonstration Enterprise.
Up to now, our pruducts have been exported to more than 69 countries like America, Japan, Russia, Korea, etc.
For more details, Please contact us!
