38.5kv 20kv 6.3kv onan yd11 high voltage electric distribution transformer
Main feacture
- Low loss and noisy
- Compared with normal oil immersed power transformer has no oil storage box and adopts the corrugations on the oil tank as its heat-radiation parts
- Oil tank is made by fine cold-rolled steel on an exclusive production-line
- Corrugations can expand or contract according to the change of oil volume
- Thus the inner space of transformer can be isolated from the air
- which can reduce the aging speed of oil and prevent the insulation materials from damping
- Oil-immersed transformer possesses a reliable operation and is free from maintenance
Technical Parameters Of 38.5kv 20kv 6.3kv onan yd11 high voltage electric distribution transformer
| 10KV S11 type Power Distribution Transformer | ||||||||
| Types | Rated Capacity (KVA) | Rated Volatge | Wastage | Impedance Voltage | No-load Current | Connector symbol | ||
| HV | LV | No-load | On-load | % | % | |||
| S11-30/10 | 30 | 0.4 | 100 | 600 | 4 | 1 | ||
| S11-50/10 | 50 | 130 | 870 | 1 | ||||
| S11-80/10 | 80 | 180 | 1250 | 0.9 | ||||
| S11-100/10 | 100 | 200 | 1500 | 0.9 | ||||
| S11-125/10 | 125 | 240 | 1850 | 0.8 | ||||
| S11-160/10 | 160 | 280 | 2200 | 0.8 | ||||
| S11-200/10 | 200 | 6±5% | 340 | 2800 | 0.8 | |||
| S11-250/10 | 250 | 10 | 400 | 3050 | 0.7 | Y,yno | ||
| S11-315/10 | 315 | 6.3 | 480 | 3650 | 0.7 | |||
| S11-400/10 | 400 | 570 | 4300 | 0.6 | ||||
| S11-500/10 | 500 | 680 | 5100 | 0.6 | ||||
| S11-630/10 | 630 | 810 | 6200 | 0.6 | ||||
| S11-800/10 | 800 | 980 | 7500 | 4.5 | 0.6 | |||
| S11-1000/10 | 1000 | 1150 | 10300 | 0.6 | ||||
| S11-1250/10 | 1250 | 1360 | 12000 | 0.6 | ||||
| S11-1600/10 | 1600 | 1640 | 14500 | 0.6 | ||||
| S11-2000/10 | 2000 | 1960 | 17200 | 0.6 | ||||

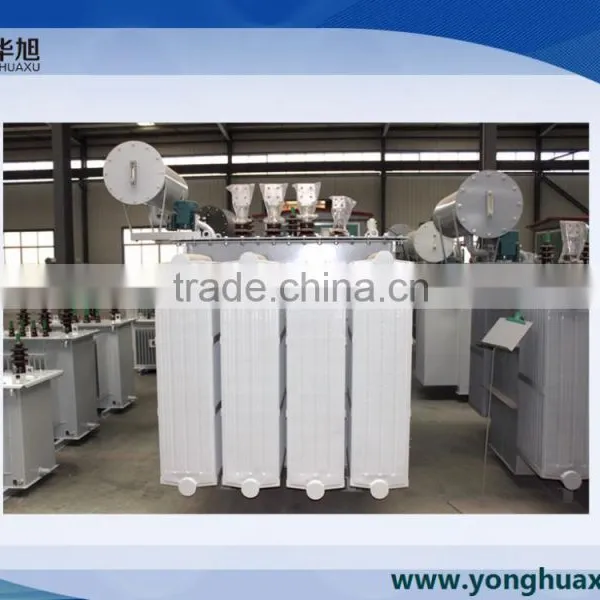

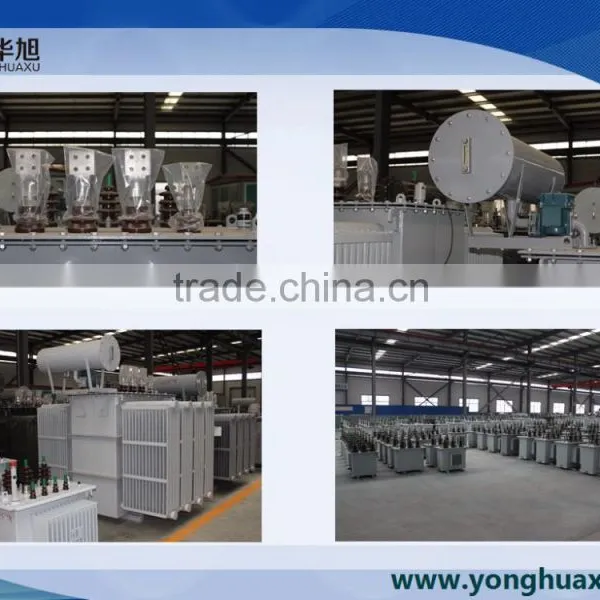

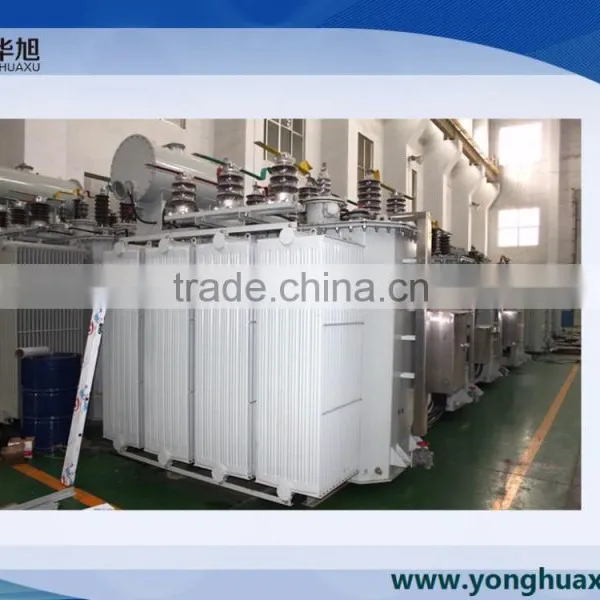

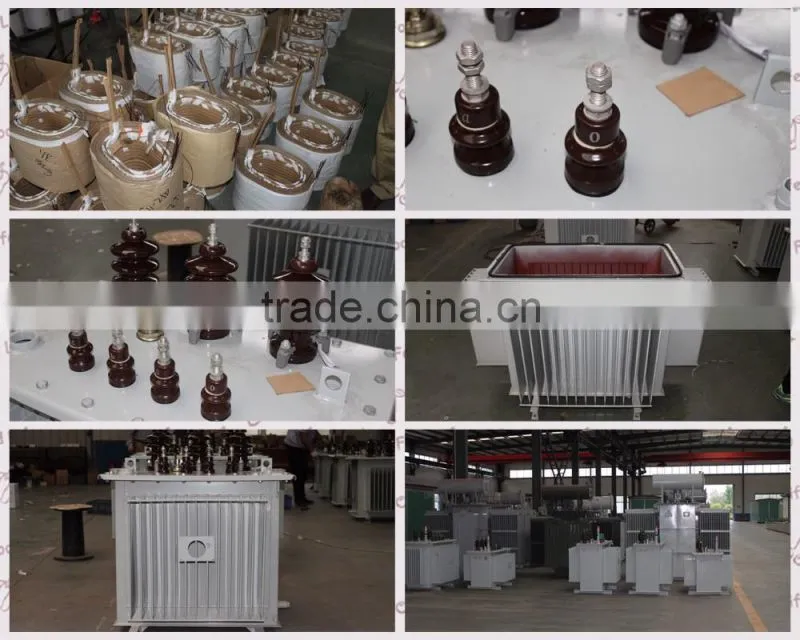

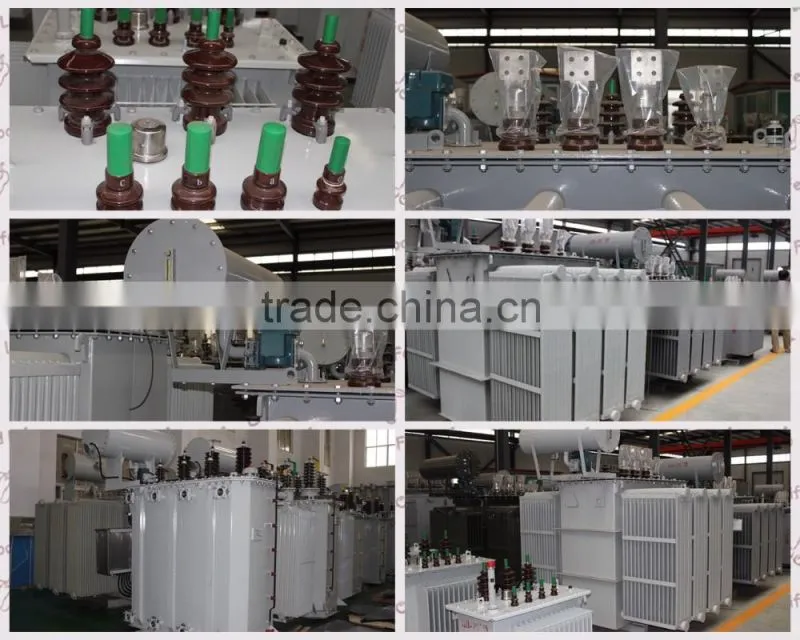

Production Detail Of 38.5kv 20kv 6.3kv onan yd11 high voltage electric distribution transformer

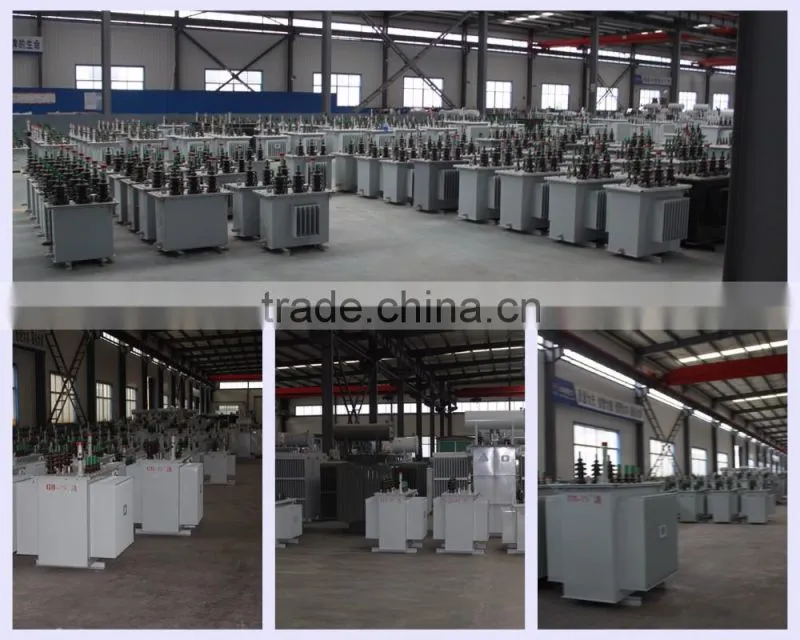

Production Line View Of 38.5kv 20kv 6.3kv onan yd11 high voltage electric distribution transformer
our factory
1.Packaging Details: 1) Wooden case of standard export package
2)we can make special designed for you if need
2.Delivery Detail: 1)10-20days after receiving deposit according to order quantities.
2)by sea, by train, by air, by express delivery
3.Payment: 1) 30% as deposit paid in advance, the balance paid before shipping.
2) L/C, Western Union, Paypal
4.Trade terms: FOB, CIF or others
5.Port of loading: Qingdao
6.Discounts: offered based on order quantities
1.We have a professional and efficient team. Young R&D team with experienced, our team average age is 32 years and the staff longest experience in the industry field are over eighteen years while the shortest one are more than five years.
2.Our products manufacturing process are in accordance with GB/T19001-2008 quality management system requirements and technical standards are in accordance with GB11022 / DL404 IEC60694 which could guarantee delivering time & excellent quality for the clients.
3.The price advantage: our company has established complete supplier evaluation & supervision system, strict control of production cost and strive to provide the optimized cost-effective products for clients
4.Professional and timely after-sales service: Based on all products standardized design, we can provide users with the most convenient and fast service, our 24 hours service telephone: 0086-532-80771657.
5.Team trust, cooperation, commitment, loyal customers, strict compliance and deliver on time.
1. Q: How to pay sample and express charges?
A: For express charges ,you can pay to our company account directly, For those customer who has express account, we will send the samples by freight collected . if customers need samples, we will charge the cost first , once they place orders ,we will return a part cost to their account .
2. Q: What is your terms of payment ?
A: Usually, we accept T/T, irrevocable L/C at sight ,for regular order ,we prefer 30% in advance ,70% against the copy of B/L
3. Q: How do you control the quality ?
A: We have QC team comply with TQM, each step is in compliance to the standards.
4. Q: What about lead or shipping time?
A: The lead time depends on quantity you ordered ,but generally within 40-50 days upon receipt of advance payment.
5. Q: How long does it take for me to get the quotation.
A: For customized products, we will quote after you provide the requested product detailes within 48 hours beacuse we need the time to calculate cost, but we will quote the soonest possible. for our standard product posted here we can quote in 24 hours.
6. Q: Why should I choose your company?
A: We take customers’ requirements as our mission, and take each details very carefully. We have about 15 years experience for electric power business. We try to support our customers always,including delievery time,price ,pre-sale,after-sales,though We are not the best,but we are always to improve ourself and meet your needs.Choose us ,will don't make you disappointed.
