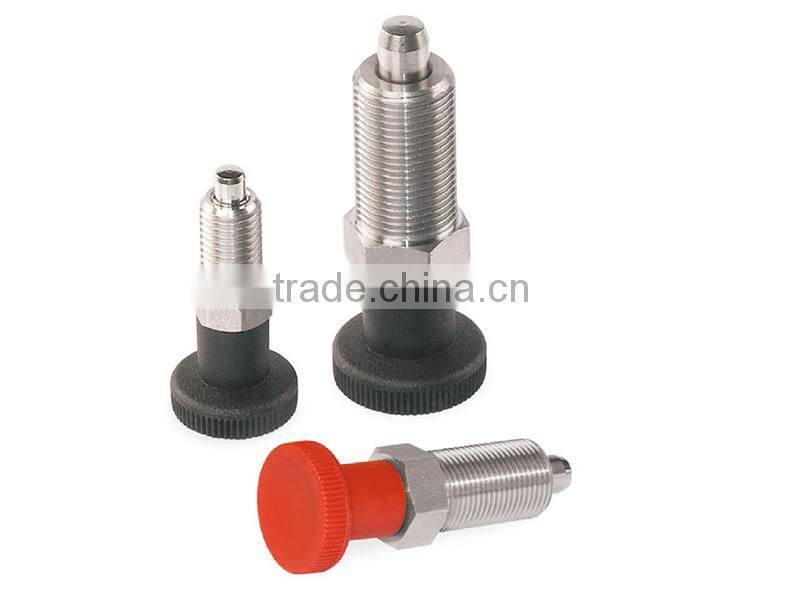

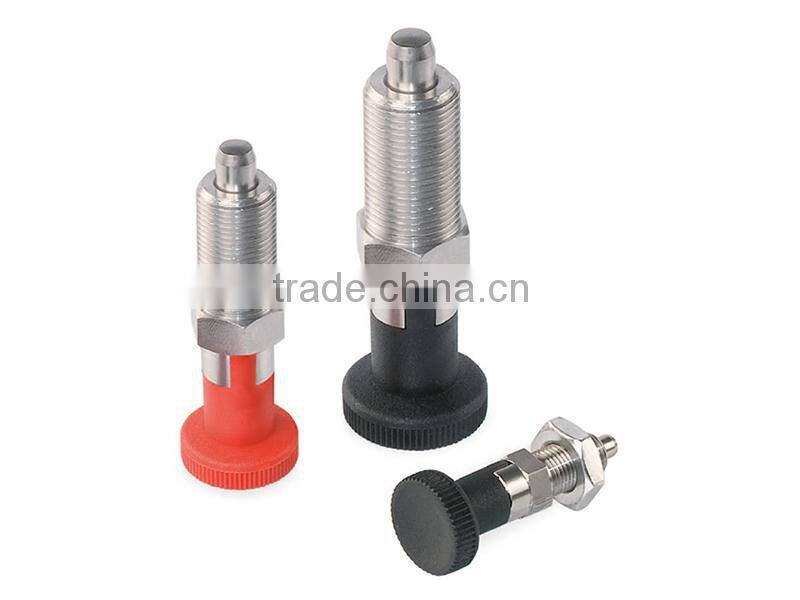

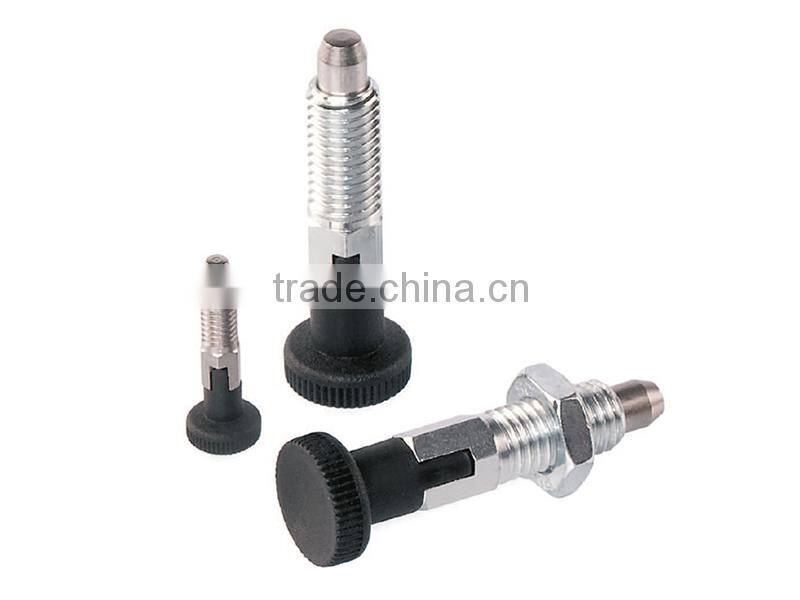

Steel Index Plunger With Stop BK29.0003
Steel Index Plunger with stop BK29.0003
PlacoGrip® High quality index bolts for the most exacting demands.
Indexing bolt: stainless steel 1.4305
Sleeve:
BK29.0003. – Zinc Plated Steel or Steel gunmetal finish
Standard color knob: polyamide, black (cannot be taken apart)
Screws thread also with thread lock (such as Scotch Grip blue) available
Further RAL – or special colors upon request
Spring in stronger version also possible
Lock nuts DIN 439 for index bolts

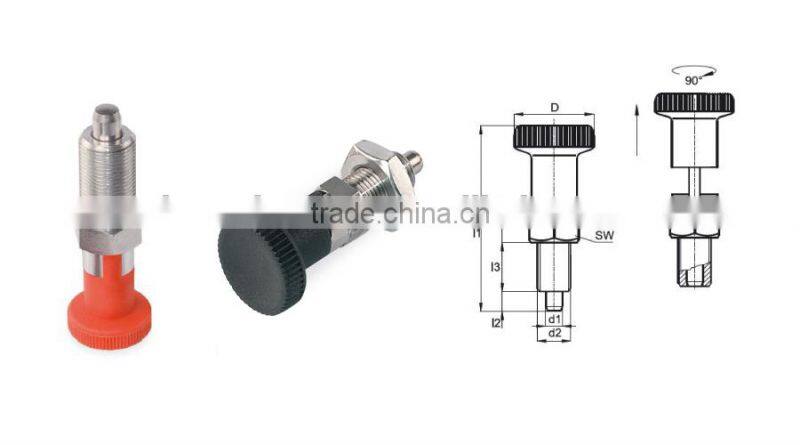

| Item Code | D | d1 | d2 | l1 | l2 | l3 | l4 | SW | F1 (N) | F2 (N) |
| BK29.0003.10010 | 21 | 5 | M10x1,0 | 51,0 | 5 | 17 | 5 | 12 | 6 | 15 |
| BK29.0003.12015 | 25 | 6 | M12x1,5 | 61,0 | 6 | 20 | 6 | 14 | 8 | 21 |
| BK29.0003.16015 | 31 | 8 | M16x1,5 | 75,5 | 8 | 26 | 8 | 19 | 9 | 26 |
| BK29.0003.20015 | 31 | 10 | M20x1,5 | 91,0 | 10 | 33 | 10 | 22 | 17 | 40 |
