SGUV-660 Manual UV Coating Machine

SGUV-660 Manual UV Coating Machine photo-1

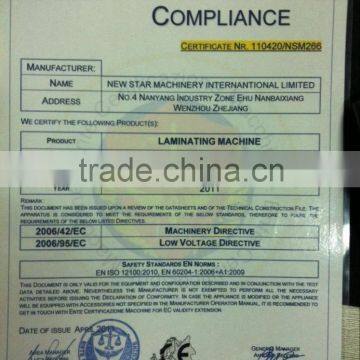

SGUV-660 Manual UV Coating Machine photo-2

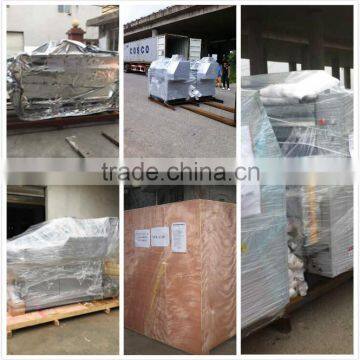

SGUV-660 Manual UV Coating Machine photo-3
SGUV-660 Manual UV Coating Machine photo-4

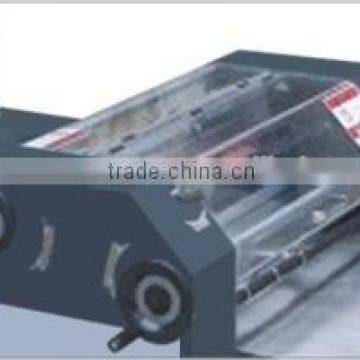

SGUV-660 Manual UV Coating Machine photo-5
US$ 7,500 - 8,500 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Automatic Grade:
Other, Manual
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai/ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Automatic Grade Other, Manual
Driven Type Electric
Voltage 380V/220V
Power 12.0Kw, 12.0Kw
Packaging Type Case
Packaging Material Glass, Metal, Paper, Plastic, Wood
Place of Origin Zhejiang, China
Brand Name NEW STAR
Model Number SGUV-660
Dimension(L*W*H) 3250x1180x1230mm
Weight 850kg, 850kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas



SGUV-660 Manual 660 UV Coating Machine





USE

·SGUV-660 small size fully automatic UV coating machine is a newly development and designed

   machine in our company. Equip with the features of easily operation and simply maintenance, together with excellent performance,which applicable to post-press small size papers'UV coating and water-base oil coating.



Features

·This UV Coating Machine is equipped with UV curing

    and IR drying device.

·Digital frequency converter speed control. And independent

    conveyor driven.

·Larger diameter coating rollers makes the coating effect smoother & brighter.

·Full coverage splash guards to protect from splashing.

·Used vacuum airbed for maximum hold down the paper sheets on conveying.

·UV magnetic leakage transformer with parallel capacitor design can better endure the voltage fluctuating impact.

·Two level UV lamp power setting.

·Easy access UV lamp chamber and replacement.

·High velocity blower fan for cooling and exhaust.

·Safety locker on all machine doors and covers.

·Full coverage protection against UV radiation around the UV lamp chamber.

·Lower temperature control on the UV lamp chamber surface.

·Emergency stop switches at arms length throughout the machine .

·Interlocks design prevents against misoperation.





 Technical Parameters

Model SGUV-660
Max. Sheet Size 620mm
Min. Sheet Size 150x210mm
Sheet Weight 80~500g/m2
Speed 0~40m/min
Power 12.0Kw
UV Lamp 1pcsx6.5Kw
IR Lamp 3pcsx1.2Kw
Weight 850kg
Dimension 3250x1180x1230mm
