YFMB-720A/920A/1100A/1400A Siamese Semi-automatic BOPP Plastic Film Laminating Machine

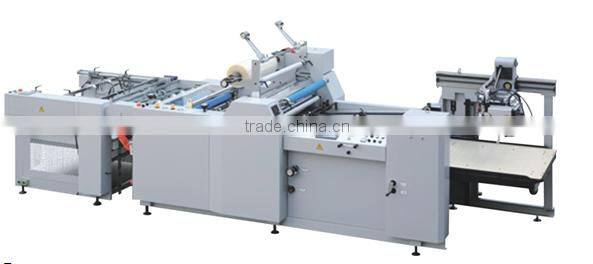

YFMB-720A/920A/1100A/1400A Siamese Semi-automatic BOPP Plastic Film Laminating Machine photo-1

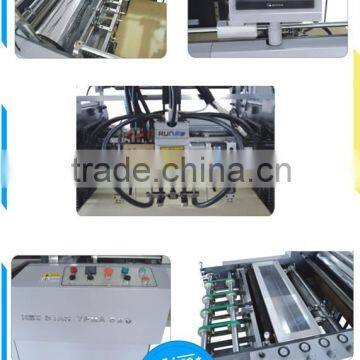

YFMB-720A/920A/1100A/1400A Siamese Semi-automatic BOPP Plastic Film Laminating Machine photo-2
US$ 8,000 - 12,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Machinery & Hardware
Packaging Type:
Other, wooden case
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Other, Machinery & Hardware
Packaging Type Other, wooden case
Packaging Material Plastic
Automatic Grade Semi-Automatic
Driven Type Hydraulic
Voltage 220v,380v
Power 13kw/15kw/16kw/17kw
Place of Origin Zhejiang, China
Brand Name NEW STAR
Model Number YFMB-720A/920A/1100A/1400A
Dimension(L*W*H) 4000*1500*1600mm/4200*1700*1600mm/4000*1900*1600mm/4500*2300*1600mm
Weight 1600kg/1800kg/2000kg/2300kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

YFMB-720A/920A/1100A/1400A Siamese Semi-automatic BOPP Plastic Film Laminating Machine

Applications

·To suit two kinds of film:pre-glued film and glueless film



Roller Diameter 268mm and 320mm





Configuration

·Omron frequency converter is equipped for infinitely variable speed, and the operator can change the machine' s speed easily and guarantee the machine' s running stable.

·One-piece construction design makes the machine run more stably, and lengthens the machine' s lifetime.

·Manual paper feeding.

·Magnetic regulating plate can be adjusted easily to regulate manual paper feeding.

·High precision of chrome plated heating roller is equipped with built-in oil heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.

·Hydraulic pressuring system provides big and steady pressure to guarantee good laminating quality.

·Air expansion shaft releases film, and precisionizes film release,  and also makes the loading and unloading of film roll more convenient.

·The combination of air expansion shaft and braking device can adjust film release tension and speed.

·Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.

·Film perforating wheel perforates film edge for the automatic cut of laminated paper.

·Anti-curvature device: when going through anti-curvature device,  the laminated paper shall be leveled at once and wont curve again after cut.

·Pneumatic cutting system realizes automatic paper cut as long as the operator inputs the workable paper size on the text screen.

·The cut paper is sent to paper receiving table. And the table height is adjustable upon applications.





Technical Parameters

Model    YFMB-720A YFMB-920A   YFMB-1100A   YFMB-1400A
Max Laminating Width      680mm   880mm   1040mm    1300mm
Max Laminating Speed     0-30m/min   0-30m/min   0-30m/min   0-30m/min
Laminating Temperature 130 130 130 130
Power    13kw  15kw     16kw    17kw
Total Weight   1600kg 1800kg   2000kg   2300kg
Overall Dimensions    4000x1500x1600mm  4200x1700x1600mm  4000x1900x1600mm 4500x2300x1600mm
