Overviews

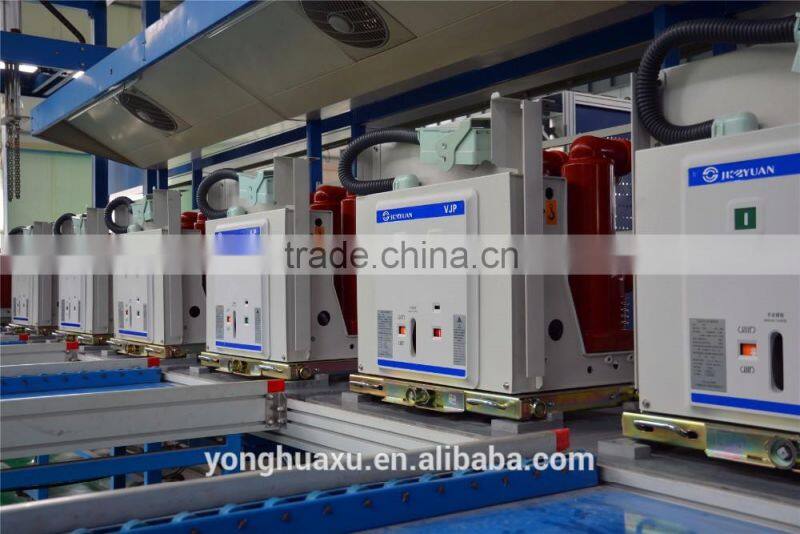

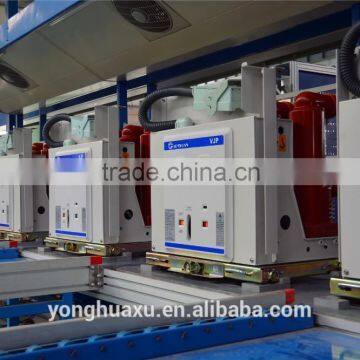

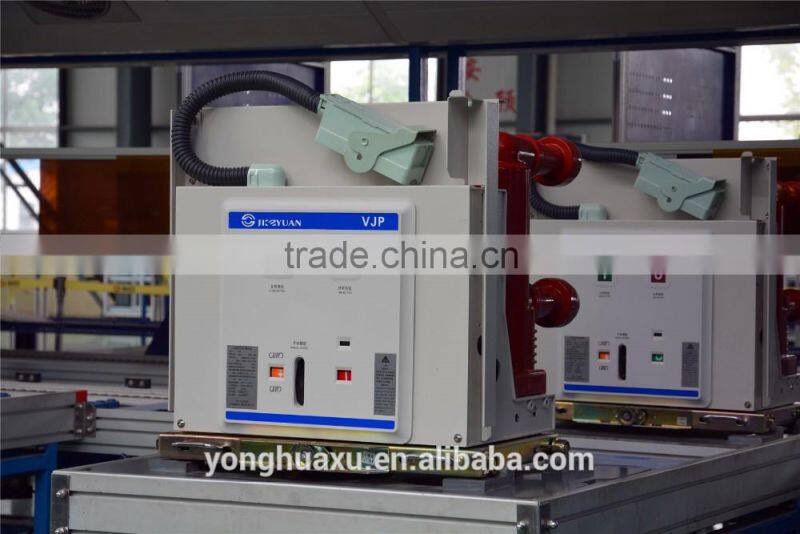

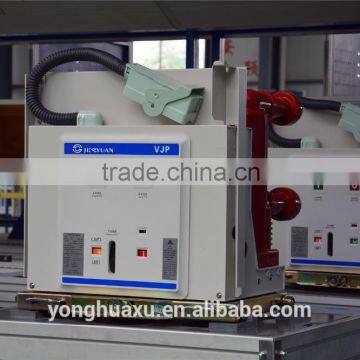

VSM series of indoor high voltage vacuum circuit breaker is adopted front and rare construction for their permanent magnetic and vacuum interrupters. The main conducting circuit is with floor-standing type, the upper and lower outlet terminal and vacuum interrupters are installed in one insulation house. The insulation house is casted with epoxy resin material by APG technology, which can protect the surface of the vacuum interrupters against dust accumulation and impact. It also has good insulation property under humid, hot and pollution ambient condition.
The vacuum circuit breaker with permanent mechanism is air-insulated, used for indoor installation for different kind of power load, it is suitable for electrical net construction and reconstruction project in municipal net, rural net, mineral and railway net system, especially used in that fields which require frequently switching and have some requirement for short circuit operation cycles. This product was introduced by some international advance technique and processing technology with characteristics of intelligence, high reliability, long endurance and free maintenance etc.
NO. | Item | Unit | Specification | |||
1 | Rated Voltage | kV | 12
| |||
2 | Rated Current | A | 630 | 1250 | 2000 | 3150 |
3 | Rated Short-time Withstand Current | kA | 25 | 31.5 | 31.5 | 40 |
4 | Rated Thermal Stability Current(valid) | 25 | 31.5 | 31.5 | 40 | |
5 | Rated Short-circuit Breaking Current | 25 | 31.5 | 31.5 | 40 | |
6 | Rated Short-circuit Closing Current(peak value) | 63 | 80 | 80 | 100 | |
7 | Rated Dynamic Stability Current(peak value) | 63 | 80 | 80 | 100 | |
8 | 1min Power Frequency Withstand Voltage | kV | 2 | |||
9 | Thermal Stability Time | s | 4 | |||
10 | Rated Lighting Impulse Withstand Voltage(peak value) Phase to Ground/Fracture | kV | 75/85 | |||
11 | 1MIN Power Frequency Withstand Voltage(valid)Phase to Ground/Fracture | kV | 42/58 | |||
12 | Mechanical Life | Times | 30000 | |||
13 | Rated Operation Sequence |
| O-0.3S-CO-180S-CO | |||
14 | Rated Short-circuit Current Breaking Times | Times | 50 | |||
15 | Rated Current Breaking Times | Times | 30000 | |||
16 | Permanent Magnetism Mechanism Closing, Opening/Auxiliary Power Voltage | V | AC DC220 | |||
a. Delivery term:
We will delivery for you after you done the full payment within 7 to 20 working days.
b. Payment:
Usually,we accept T/T, irrevocable L/C at sight ,for regular order ,we prefer 50% in advance ,50% against the copy of B/L
1.We have a professional and efficient team. Young R&D team with experienced, our team average age is 13 years and the staff longest experience in the industry field are over xxx years while the shortest one are more than 20 years.
2.Our products manufacturing process are in accordance with GB/T19001-2008 quality management system requirements and technical standards are in accordance with GB11022 / DL404 IEC60694 which could guarantee delivering time & excellent quality for the clients.
3.The price advantage: our company has established complete supplier evaluation & supervision system, strict control of production cost and strive to provide the optimized cost-effective products for clients
4.Professional and timely after-sales service: Based on all products standardized design, we can provide users with the most convenient and fast service, our 24 hours service telephone: 0086-532-80771657.
5.Team trust, cooperation, commitment, loyal customers, strict compliance and deliver on time.
Q: How do you control the quality ?
A: We have QC team comply with TQM,each step is in compliance to the standards,At the same time ,we will take photos and shoot video for you .
Q: What about lead or shipping time?
A: The lead time depends on quantity you ordered ,but generally within 40-50 days upon receipt of advance payment.
Q: How long does it take for me to get the quotation.
A: For customized products, we will quote after you provide the requested product detailes within 48 hours beacuse we need the time to calculate cost, but we will quote the soonest possible. for our standard product posted here we can quote in 24 hours.
Q: Why should I choose your company?
A: We take customers's requirments as our mission,and take each details very carefully. We have about 15 years experience for electric power business. We try to support our customers always,including delivery time,price ,pre-sale,after-sales,though We are not the best,but we are always to improve ourself and meet your needs.Choose us ,will don't make you disappointed.
