Help CenterAcoustic Insulated Aluminum Air Ducts
Related Products
-
Acoustic Flexible Air DuctUS$ 5.35 - 12.89MOQ: 300 Pieces -
Double Layer Insulated Flexible DuctUS$ 3.6 - 8.6MOQ: 100 Pieces
-
6 Inch Insulated Aluminum Flexible DuctUS$ 3 - 12.5MOQ: 300 Pieces
-
Double Layer Combi PVC Flexible DuctUS$ 2 - 13MOQ: 300 Pieces
-
ACOUSTIC ALUMINUM FLEXIBLE AIR DUCTUS$ 6 - 16MOQ: 300 Pieces
Specifications
Acoustic flexible air duct1)standard length:10meter
2) delivery time:15 Days
3) MOQ:200 (mixed size)
Application
ASIF is a range of fully flexible insulated ducting. provides outstanding resistance and durability.
ASIF is suitable for use with heating, ventilation and air conditioning systems
Technical data (Xuanyuan Factory)
Material of Core Duct |
Tape of clear polyester/Tape of polyester metallic |
||||
Thickness of Core Duct |
0.026mm |
||||
Fire Resistance |
Yes,General |
||||
Thickness of Insulation |
25mm,50mm (Fiberglass) |
||||
Density of Insulation |
16kg/m3,, 32kg/m3 (Glass wool) |
||||
Air Velocity |
30 m/s |
||||
Operating Pressure |
2500 Pa |
||||
Operating Temperature Range |
-30 °C/+140 °C |
||||
Available Diameters |
75mm - 600mm |
||||
Available Lengths |
5m,6m,7,5m,10m |
||||
Packing |
Paper carton box with Polyethylene bag inside |
||||
Diameter of Duct (mm) |
Steel wire thickness (mm) |
Steel wire spacing (mm) |
|||
102mm |
0.9mm |
30mm |
|||
127mm |
0.9mm |
30mm |
|||
152mm |
1.0mm |
35mm |
|||
203mm |
1.1mm |
40mm |
|||
254mm |
1.2mm |
45mm |
|||
305mm |
1.2mm |
45mm |
|||
315mm |
1.2mm |
45mm |
|||
400mm |
1.2mm |
45mm |
|||
QUANTITY |
Mini order or massive production available |
||||
SHIPMENNT |
usually 10-30 days, it depends on the ordered qty |
||||
PORT |
Shanghai port or Ningbo port |
||||
PAYMENT |
30% deposit before the production and 70% balance before the shipment, T/T, |
||||
SAMPLES |
Samples is available,by Express |
||||
Features:

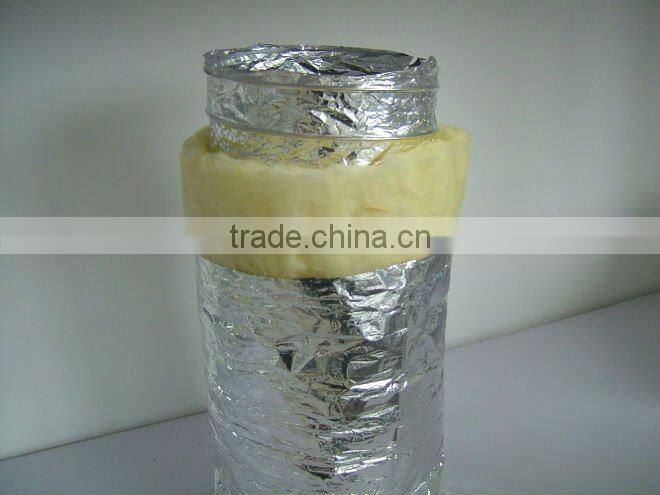

1. Acoustic insulated duct made of aluminum foil + pet + helix steel wire + fiber glass
2. Apply for low/medium/ high pressure, use for air ventilation in each environment.
3. Round style, and easy to install oval or round connection.
4. Fireproofing, at high temperatures or in case of fire, no toxic gas emitted.
5. Easy to delivery.
6. Good insulated---heat insulated
7. Absorb noise---can absorb the noise from the shaking when ventilated
8. No corrosive---not corrosive the aluminum pipe and metal parts
9. Durability---not decay, mildew
10. Fire---resistance
11. Practicality: suitable for the densely-populated area(such as school, supermarket, office, stadium, theater, factor
