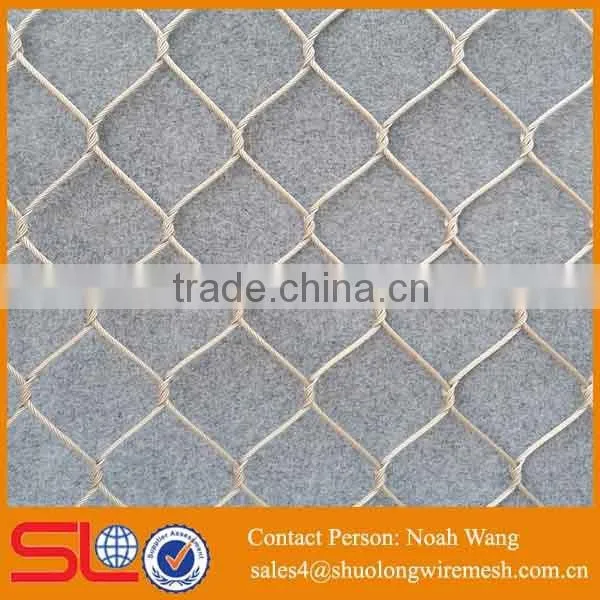

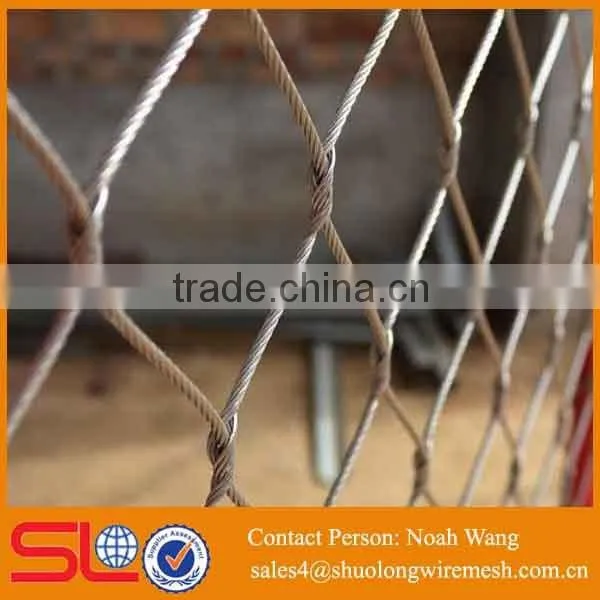

High Quality Good Price stainless steel wire rope mesh net
1.Material: AISI304/316/304L/316L,etc.
2.Ferrule material: Tinnes copper, Nickel plated copper, stainless steel, etc.
3.Cable dia: 1.20-5.0mm
4.Cable construction: 7*7(1.2--2.5mm), 7*19(3.0--4.0mm).
5.Opening Width(OW): 20--200mm, Opening Hight(OH): 35--346mm
Wire mesh is a high strength wire mesh, diamond wire mesh, ring network, high strength steel wire grid gate) as the main part. Along with bolt and rope support parts constitute the whole system.To cover, tighten the slope surface way to prevention and control of slope rock collapse, tumble, blasting slungshot and other hazards.
The structure of the stainless steel twisted rope
stainless steel wire rope mesh Specification Table
Item |
Steel Wire Rope dia |
Rupture Stress(W×H) |
Rupture Stress |
||
|
inch |
mm |
inch |
mm |
lbs. |
HX-3212F |
1/8 |
3.2 |
4.75 x 8.23 |
120 x 207.8 |
1,600 |
HX-3210F |
1/8 |
3.2 |
4 x 6.9 |
102 x 176.7 |
1,600 |
HX-3211F |
1/8 |
3.2 |
3.55 x 6.15 |
90 x 156 |
1,600 |
HX-3212F |
1/8 |
3.2 |
3 x5.2 |
76 x 131.6 |
1,600 |
HX-3213F |
1/8 |
3.2 |
2 x3.46 |
51 x88.3 |
1,600 |
HX-3214F |
3/32 |
2.4 |
4x6.9 |
102x176.7 |
920 |
HX-3215F |
3/32 |
2.4 |
3.55x6.15 |
90x 156 |
920 |
HX-3216F |
3/32 |
2.4 |
3 x 5.2 |
76x 131.6 |
920 |
HX-3217F |
3/32 |
2.4 |
2.4x 4.16 |
60x 104 |
920 |
HX-3218F |
3/32 |
2.4 |
2x3.46 |
51 x 88.3 |
920 |
HX-3219F |
5/64 |
2.0 |
3 x 5.2 |
76 x 131.6 |
676 |
HX-3220F |
5/64 |
2.0 |
2.4x 4.16 |
60 x 104 |
676 |
HX-3221F |
5/64 |
2.0 |
2 x 3.46 |
51 x 88.3 |
676 |
HX-3222F |
5/64 |
2.0 |
1-1/2 x 2.6 |
38 x 65.8 |
676 |
HX-3223F |
1/16 |
1.6 |
1.2 x2.08 |
76 x 131.6 |
480 |
HX-3224F |
1/16 |
1.6 |
2x 3.46 |
51 x 88.3 |
480 |
HX-3225F |
1/16 |
1.6 |
1-1/2 x 2.6 |
38 x 65.8 |
480 |
HX-3226F |
1/16 |
1.6 |
1.2x2.08 |
30 x 52 |
480 |
HX-3227F |
1/16 |
1.6 |
1 x 1.73 |
25.4 x 44 |
480 |
HX-3228F |
3/64 |
1.2 |
1-1/2x2.6 |
38 x 65.8 |
270 |
HX-3229F |
3/64 |
1.2 |
1.2 x 2.08 |
30 x 52 |
270 |
HX-3230F |
3/64 |
1.2 |
1 x 1.73 |
25.4 x 44 |
270 |
HX-3231F |
3/64 |
1.2 |
4/5 x 1.39 |
20 x 34.6 |
270 |

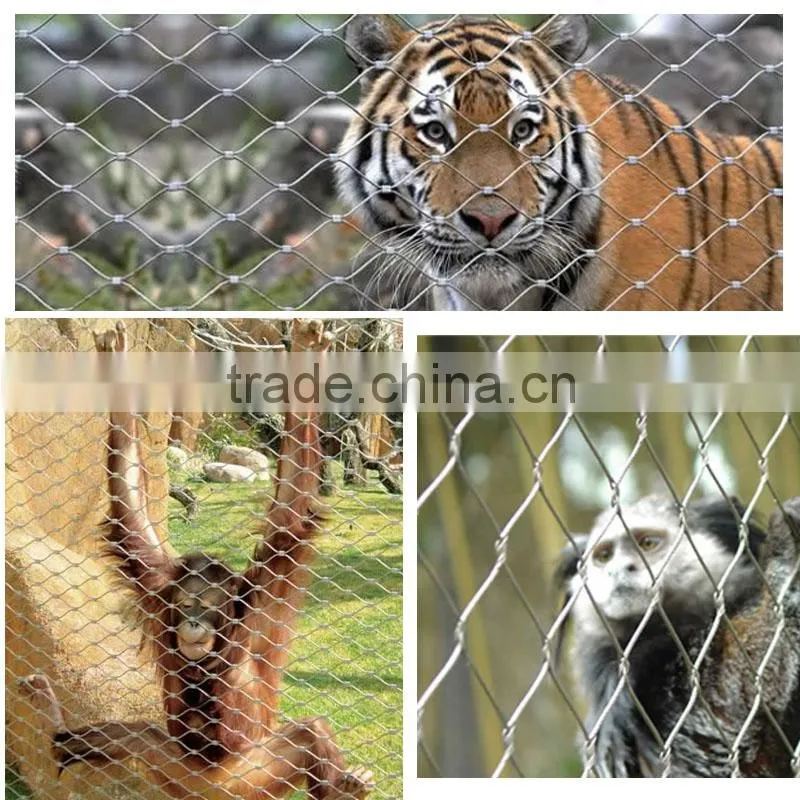

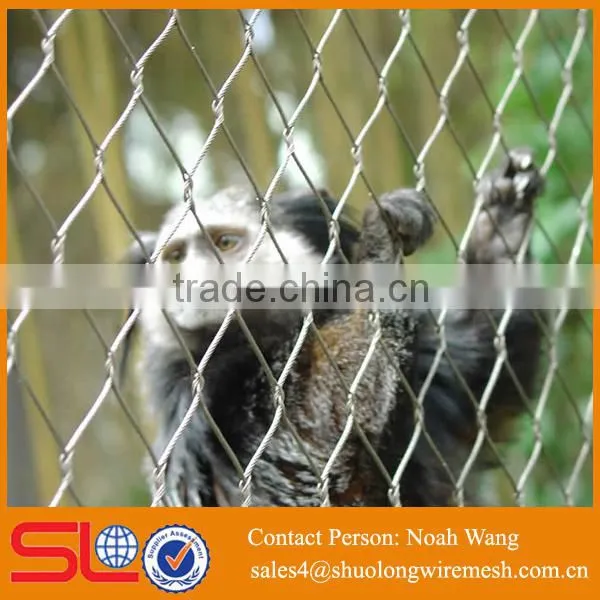

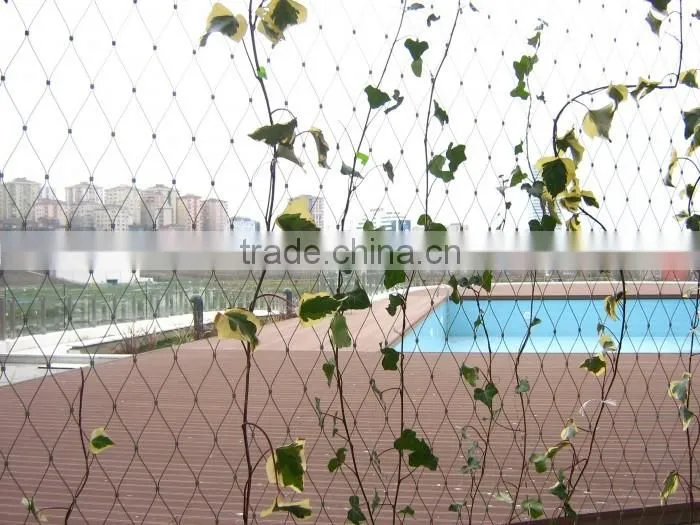

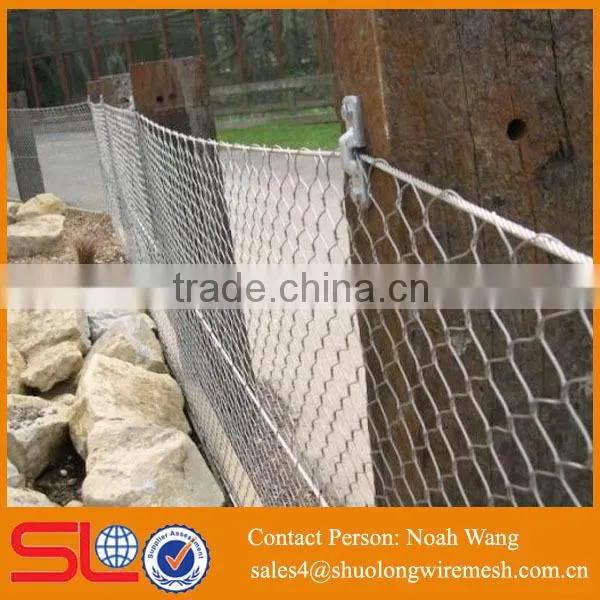

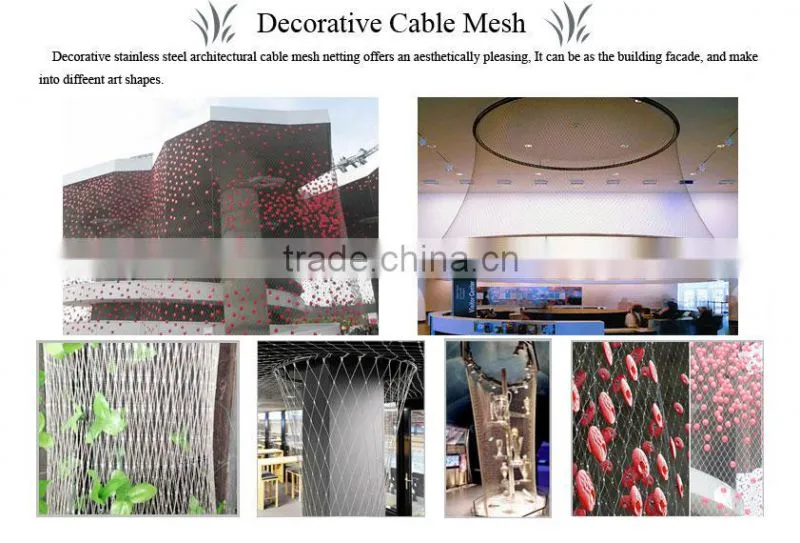

Aviary Mesh, Bird Netting,Animal Enclosure,Zoo mesh,Agriculture,Residential,Sports,Fall Security,Vertical greening,ect
#1
- The stainless steel cable mesh is covered by plastic bag, the loaded in cartons.
- Outside the carton, covered by plastic film.
- Finally, cartons with stainless steel cable mesh are loaded to strong wooden case.
#2
- Inside the roll with "paper tube" to reduce the pressure while loading.
- Then wrapped with "plastic film" as well as the "woven bag" on the finished roll.
- Final loaded in the strong wooden case or as customers' requirement
Since 1983,
Our company specializes in HESCO, Gabion , Welded Wire Mesh, Crimped Wire Mesh , Decorative Wire Mesh and Chain Link fence. We have ISO Certificated and other International Certification such as CE, BV , SGS and others.
Our products are mainly exported to USA , Canada, Australia, South Asia,Middle East, European Countries and others.
Hope to cooperate with you.
What can we do for you:
1. Reply within 24 hours.
2. Sample with no charge.
3. Provide guide about installation.
4. With rich manufacturing experience and full strict control of raw materials, production andproducts inspection, we can provide good quality gabion production with competitive prices ,timely delivery and excellent services.
5. We sincerely would like to establish long-term business relationship with you.
FAQ
1. Are the samples free of charge?
Yes, all samples are free of charge. But if you need a sample which is bigger than our-prepared sample, a little of fee will be needed. AND, the sample fee will be returned as soon as there are orders from it.
2. How can I get to your factory?
It's our pleasure that you plan to visit us!
You could firstly fly to Shijiazhuang airport, or Beijing airport if you like, then we will pick you up by car.
What you need to do is just to tell us in advance.
Hope you enjoy the trip!
3.How is your price?
We are manufaccture for metal mesh and we are in the biggest wire mesh land of China. So we have much vantage on price, but our precondition is quality. Quality is always the first for us.
We not only supply goods ,also supply solutions!
