SS1061A LCZ Meters replace WK3245 LCZ meter
Description of SS1061A/1062A LCZ Meters replace WK3245 LCZ meter :
SS1061A/1062A LCZ Meters replace WK3245 LCZ meter are a high-grade component test instrument upgraded from 106X series, with 4 output impedance modes and measuring results compatible with other well-known LCR meters.
Key feature of SS1061A/1062A LCZ Meters replace WK3245 LCZ meter:
Test frequency: 40Hz ~ 200KHz
Test voltage: 10mV ~ 2.5V, 10mV/step
4 output impedance modes: 25Ω, 100Ω, 50Ω, 2Ω
Direct comparison: HP4284, GR1689, WK3245, NF2330
Order Items of SS1061A/1062A LCZ Meters replace WK3245 LCZ meter:
1061A
1062A
4-terminal test clamp(within tester)
Test pen(optional)
Test box(optional)
SMD test wire(optional)
Specification of of SS1061A/1062A LCZ Meters replace WK3245 LCZ meter:
| Model | 1061A | 1062A |
| Test parameter | ||
| Main display | L ,C, R, Z | |
| Subaltern display | Q ,D ,ESR ,θ | |
| Measure signal | ||
| Meas. Level | 10mV~2.5V,10mV/step | |
| Meas. Frequency | 40HZ~200KHZ | |
| Frequency accuracy | ±0.15% | |
| Out impedance | 25Ω±5% ,100Ω±5% ,50Ω±5% ,2Ω±10%(load impedance ≥ 10Ω) | |
| Measure Range | ||
| Main parameter |
L(0.00001uH ~ 9999.99H), C(0.0001pF~9999.9mF) R(0.0001mΩ~9999.9MΩ), Z(0.0001mΩ~9999.9MΩ) |
|
| Subaltern parameter | Q, D(0.0001~9999.9),θ(-90.00°~90.00°), Δ %(0.0001%~99999%) | |
| Base accuracy | 0.15% (AC parameter 1KHZ ) | |
| Measure speed (1KHZ ) | ||
| Best fast | 13Measurement/S | |
| Fast | 10Meas./S | |
| Middle | 5Meas./S | |
| Slow | 1Meas./S | |
| Trigger | internal | internal, external, manual |
| Display | ||
| L,C,Z,R | 5pcs digitals | |
| Q,D,R, θ | 5pcs digitals | |
| Frequency ,level | 3pcs digitals | |
| Q,D,R, θ | 5pcs digitals | |
| DC base | DC:0~35V | |
| Revising function | open, short | |
| Equivalent circuit model | series ,parallel | |
| Automatic judgement | pass or fail | |
| Common specification | ||
| Environment | temperature :10 ºC ~ 40 ºC ,humidity :10%~90%RH | |
| Power consuming | Max.55W | |
| Power | 90~125V , or 190~250V,, 48HZ~62HZ | |
| Weight | 5.4Kg | 7.5Kg |
| Meas. (W×H×L ) | 270×105× 350mm | 405×130× 365mm |

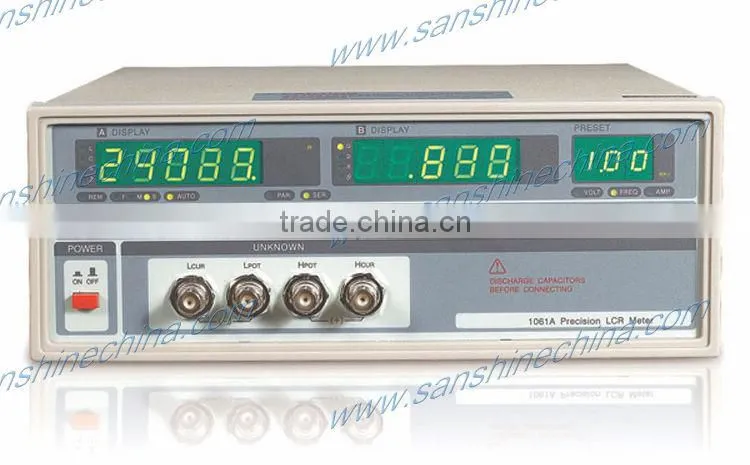

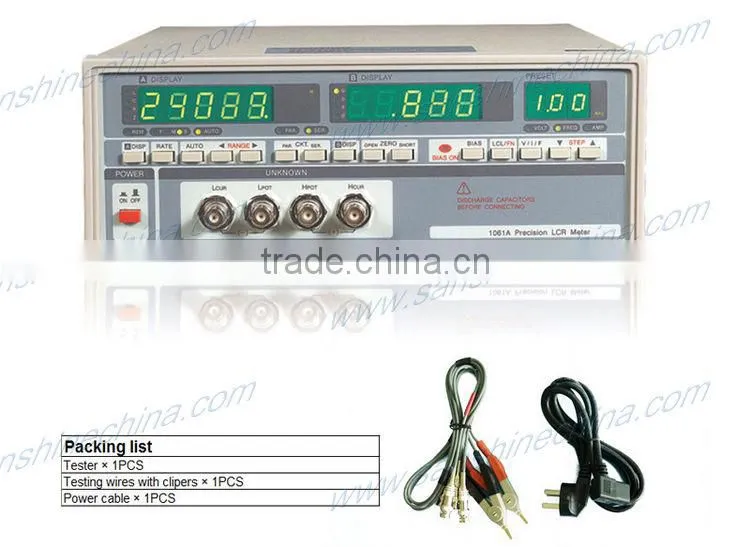

Pictures of SS1061A/1062A LCZ Meters replace WK3245 LCZ meter
