Industrial electric heating shrinking hot air cycled tunnel oven

customs approved wood box, different paking size by different size oven for SS-HSTO02 Industrial electric heating shrinking hot air cycled tunnel oven

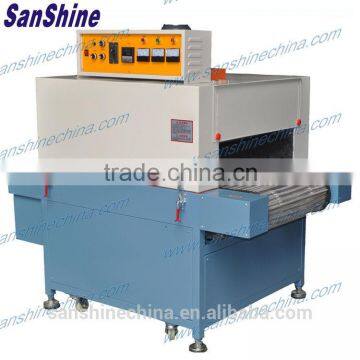

SS-HSTO02  Industrial electric heating shrinking hot air cycled tunnel oven

SS-HSTO02  Industrial electric heating shrinking hot air cycled tunnel oven

Description:

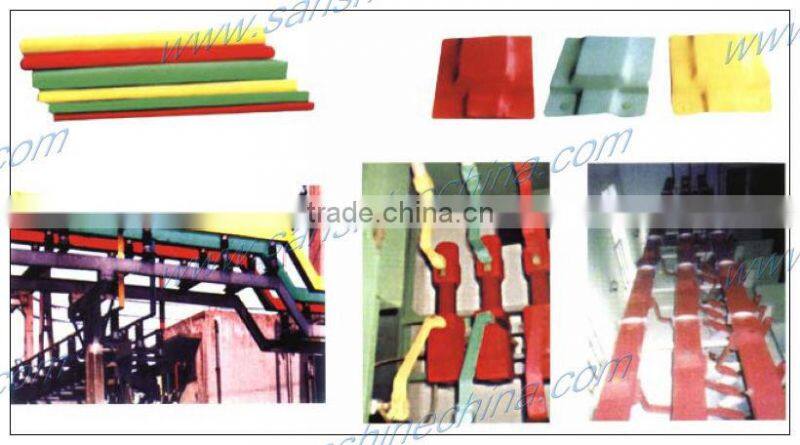

This SS-HSTO02  Industrial electric heating shrinking hot air cycled tunnel oven adopts the principle of level hot air cycle conveying and the programable digital temperature controller. It is designed specifically for shrinking the heat shrink tubing and shrink film, heat shrink packing, heating shrinking insulation sleeve / tube/ harness, etc.(for shrink-wrap process, electronics cables, electrical cables, electronics components, electrical parts, label of bottle, toys, hardware, etc. ).
SS-HSTO02 Heat shrink tubing oven adopts the electronic digital temperature controller and the conveyor speed controller, the conveyor motor is a speed reducing motor.The SS-HSTO02  Industrial electric heating shrinking hot air cycled tunnel oven
 is one tunnel type oven. It is perfect for manufacturing settings. Highly accurate electronic digital temperature controller and speed control allows for repeatable consistent results(easy operation.).The working temperature is invariableness by automatically.

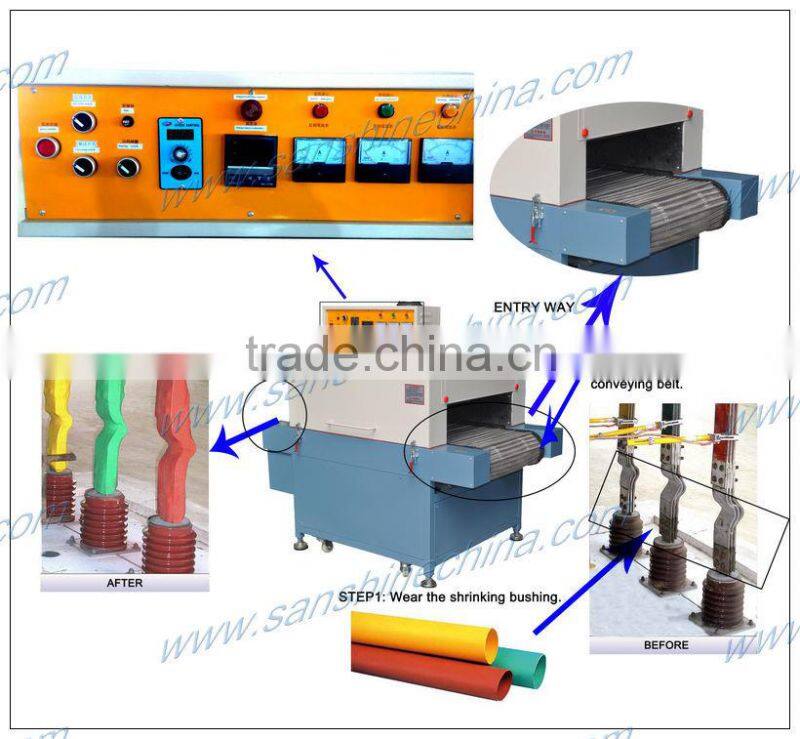

Put the processing products on the conveying belt, then the these products will be processed and out put automatically.

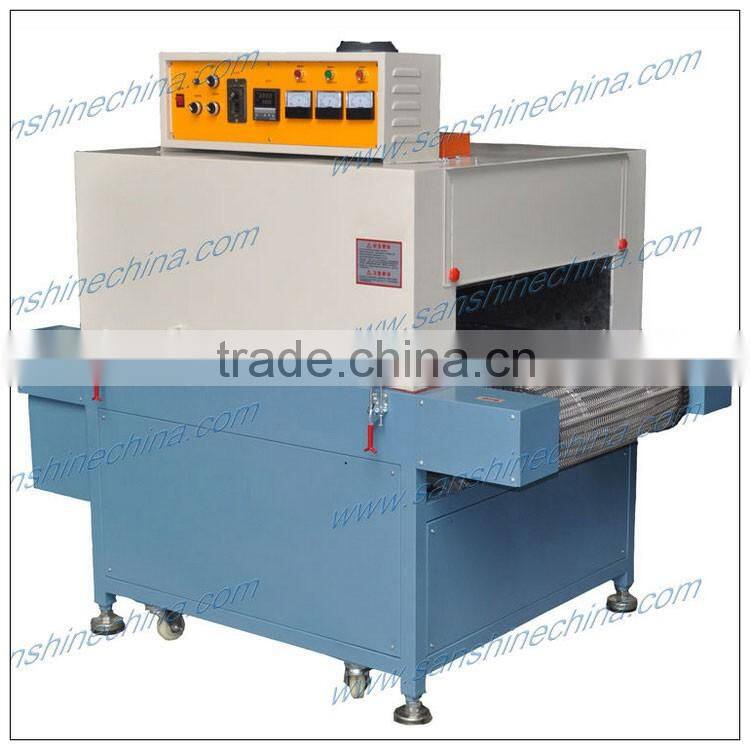

SS-HSTO02  Industrial electric heating shrinking hot air cycled tunnel oven
Specification:
1. machine total length: 1500mm.
2. heating zone length(inner working zone): 1000mm ( be customized according to user's requirements also).
3, conveying belt width(inner working zone): 600mm ( be customized according to user's requirements also ).
4, the entryway height of tunnel oven: 200mm ( be customized according to user's requirements also ).
5, the conveying belt length of entryway zone: 250mm ( be customized according to user's requirements also ).
6, the conveying length of exit zone: 250mm ( be customized according to user's requirements also ).
7, the height from ground to the conveying: 750mm.
8, heating way: electrical heating tubes with the hot air cycle.
9, heating power: 6KW.
10, the speed of conveyer: 50 ~ 1000mm/Minute.
11, working temperature: room temperature ~ 200ºC( be customized according to user's requirements also).
12, power source: 3 phase 380V 50Hz.
13, conveying belt of configuration: Φ1.2x8x10mm stainless net belt and chain belt.
14, conveying time: can be adjustable from 30seconds to 4 minutes.


*****This heat shrink tubing oven can be customized according to user's requirements, welcome to inquire****

SS-HSTO02  Industrial electric heating shrinking hot air cycled tunnel oven


Service tenet

Provide you the best service with “fast + satisfactory + safe”.

Warranty period

12 months long after the user received the product.

Warranty items

Only for abnormal breakdown caused by the machine design or manufacture defect,

free repair and accessory will be provided.

Technology service ability

All service engineers with many years experience are gotten special technology training, who can deal with various breakdown problem.

Guide the user to use accurately and how to maintain the product.

Provide free consultation about production process technology of electronic products.

Service after sell

In order to guarantee the machine used normally, we’d have training on how to operate, use and maintain our product by English manual, video, guiding on line.

Use instruction

Apply for the right complete size of product, otherwise, the wrong dimensions will affect the use effect.

Do ensure using the product accord to the use instruction completely.Do not exceed the scope of application of the products.

Maintain the product after use,Damp proof, rust proof, leak proof, explosion-proof, regular maintenance and inspection should

be taken care. All done help to extend the use period.

User document management

Establish perfect user document management in EPR system, Every product running details would be followed to manage.    The users would be taken good care.

About product

1. Product photo: All product photos are taken by real product, There is the color aberration between the product and photo, which is caused by shoot light, product size, manual technology and computer display etc. It’s not quality problem. Parts of products are changed in appearance due to technology revolutionary and process improvement. SanShine would ensure the parameter of product is unchanged, The product couldn’t affect to use.

2.Product size: All parameters are all measured by manual just for reference. There is a small deviation due to the difference of measure tools, lot products and produce process. Real size should be accordance with the final delivery product.

3.Quality inspection: All products should be inspected strictly before shipment. Ensure the good function and appearance.

Package and transport

General package(Paper carton or plastic bag):  For small goods, Package it with form and pack paper to guarantee unbroken during the transport.

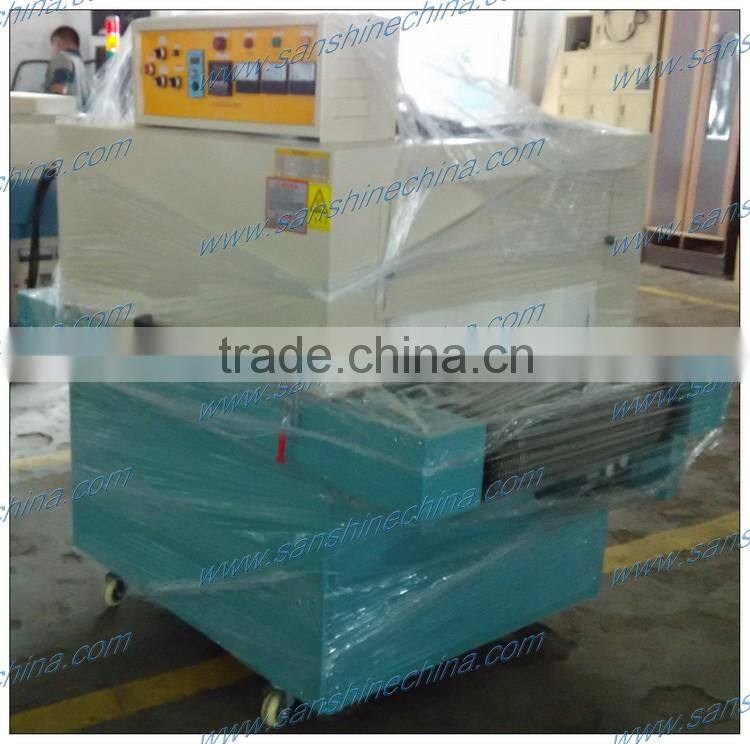

Wooden case package: For larger scale goods as machine equipment etc, we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock. We will inform you the delivery note. You just need to wait for phone call, then pick up the goods at the nearest logistic station .(Please let me know in advance if you want get the goods at home.)
