SS-SM01 Bench rotary insert wire stripping machine
Description of SS-SM01 Bench rotary insert wire stripping machine :

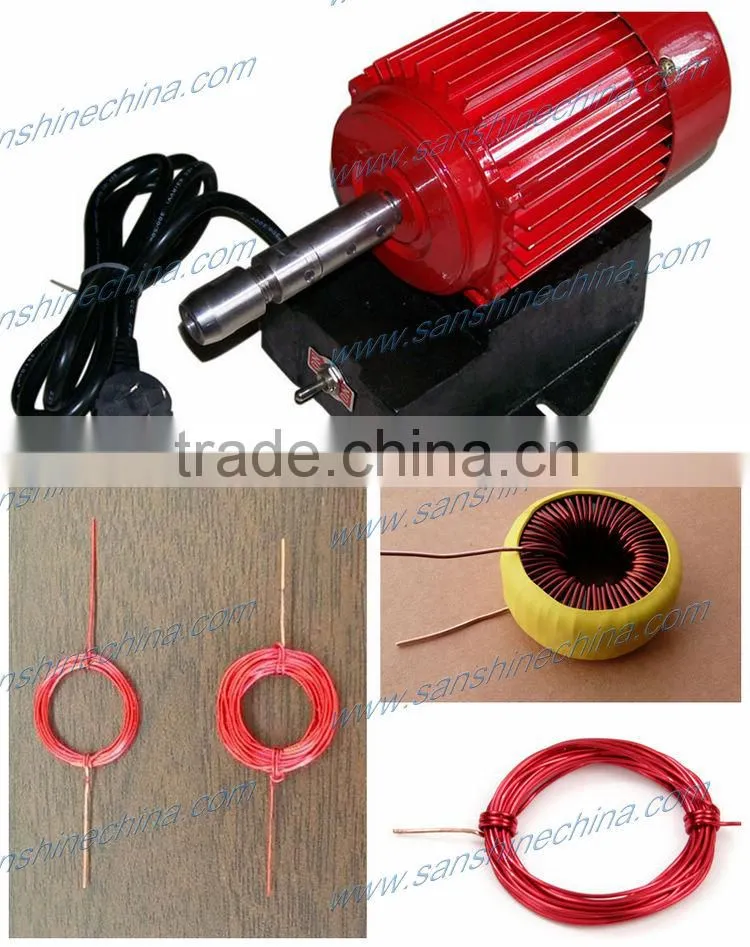

The SS-SM01 Bench rotary insert wire stripping machine from motor, power switch, stripping blade, blade cover. the blade be made of speciall alloy steel.Is very convenient to use, Which can strip a lot of surface insulation films of the magnetic wire quickly, and do not break wire core. It is used for strip enamel wires, varnished wires, be used widely in motor manufacture, transformer/inductor manufacture, cable manufacture, reactor manufacture,and so on. It is superior to knife, grinding wheel and chemical of stripping ways. It increases the processing efficiency and improve the soldering quality.
Specification of SS-SM01 Bench rotary insert wire stripping machine:
Wire diameter range: ¢ 0.28~3.25mm(depend on switch different model blade)
Wire stripping length: 0 ~ 60.0mm
Power line: 220V, 50/ 60Hz.
Power: 120W
Rotation speed: 2800r/min
Weight: 10Kg.
Enamel wire stripping machine
Stripping blades specification of SS-SM01 Bench rotary insert wire stripping machine:
| Columniform blade model | Wire diameter range | Coniform(subulate) blade model |
| 2SC | 29~24AWG(0.28~ 0.51mm ) | 2BF |
| 3SC | 24~20AWG(0.51~ 0.81mm ) | 3BF |
| 4SC | 20~16AWG(0.81~ 1.30mm ) | 4BF |
| 5SC | 15~13AWG(1.45~ 1.83mm ) | 5BF |
| 6SC | 13~11AWG(1.83~ 2.31mm ) | 6BF |
| 7SC | 11~9AWG(2.31~ 2.90mm ) | 7BF |
| 8SC | 9~8AWG(2.90~ 3.25mm ) | |

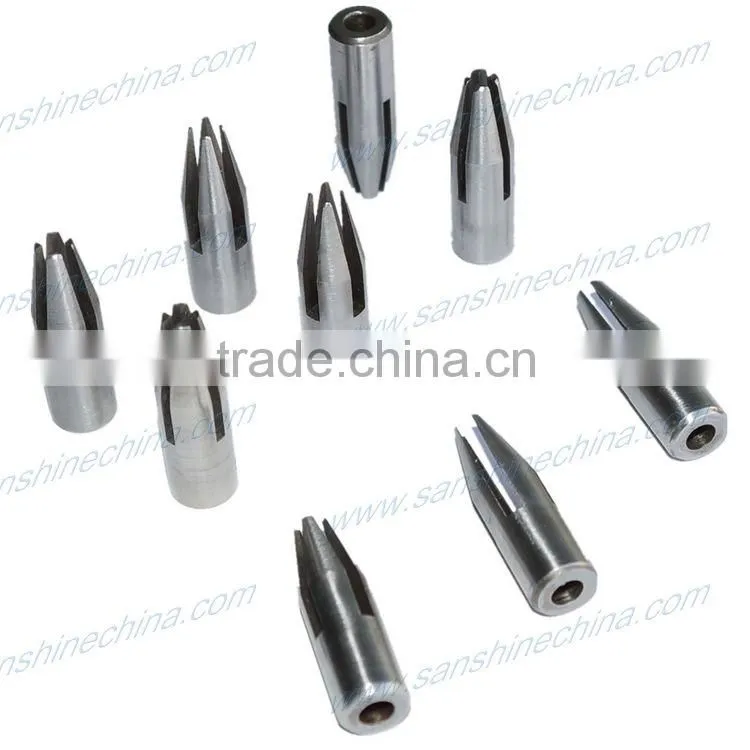

Pictures of stripping blades of SS-SM01 Bench rotary insert wire stripping machine:
Service tenet
Provide you the best service with “fast + satisfactory + safe”.
Warranty period
12 months long after the user received the product.
Warranty items
Only for abnormal breakdown caused by the machine design or manufacture defect,
free repair and accessory will be provided.
Technology service ability
All service engineers with many years experience are gotten special technology training, who can deal with various breakdown problem.
Guide the user to use accurately and how to maintain the product.
Provide free consultation about production process technology of electronic products.
Service after sell
In order to guarantee the machine used normally, we’d have training on how to operate, use and maintain our product by English manual, video, guiding on line.
Use instruction
Apply for the right complete size of product, otherwise, the wrong dimensions will affect the use effect.
Do ensure using the product accord to the use instruction completely.Do not exceed the scope of application of the products.
Maintain the product after use,Damp proof, rust proof, leak proof, explosion-proof, regular maintenance and inspection should
be taken care. All done help to extend the use period.
User document management
Establish perfect user document management in EPR system, Every product running details would be followed to manage. The users would be taken good care.
About product
1. Product photo: All product photos are taken by real product, There is the color aberration between the product and photo, which is caused by shoot light, product size, manual technology and computer display etc. It’s not quality problem. Parts of products are changed in appearance due to technology revolutionary and process improvement. SanShine would ensure the parameter of product is unchanged, The product couldn’t affect to use.
2.Product size: All parameters are all measured by manual just for reference. There is a small deviation due to the difference of measure tools, lot products and produce process. Real size should be accordance with the final delivery product.
3.Quality inspection: All products should be inspected strictly before shipment. Ensure the good function and appearance.
Package and transport
General package(Paper carton or plastic bag): For small goods, Package it with form and pack paper to guarantee unbroken during the transport.
Wooden case package: For larger scale goods as machine equipment etc, we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock. We will inform you the delivery note. You just need to wait for phone call, then pick up the goods at the nearest logistic station .(Please let me know in advance if you want get the goods at home.)
