Specifications
Copper Wire Mesh1.Direct factory and in stock
2.Fast Delivery&Good Faith!
3.Quality is Fist
4.Certificate:BUREAU VERITAS

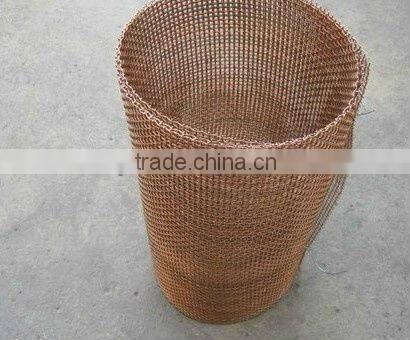

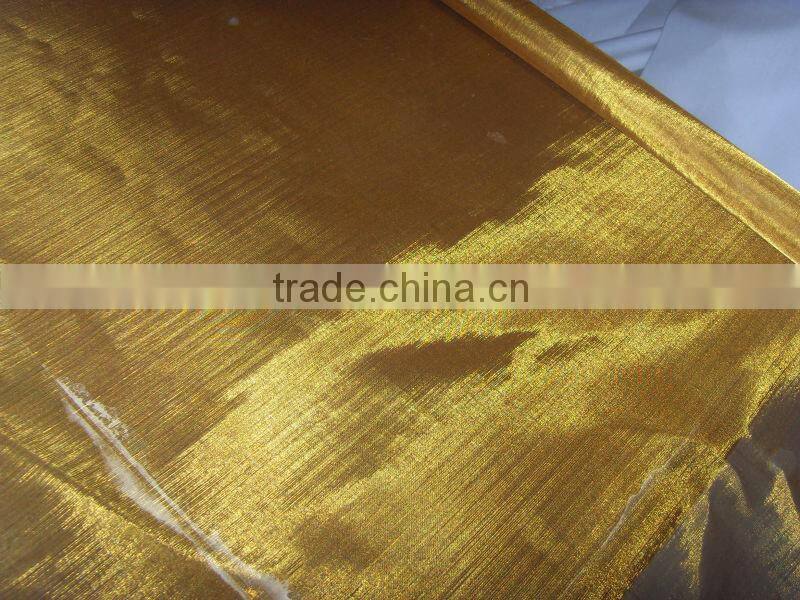

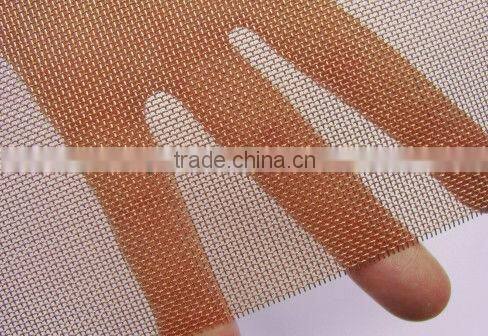

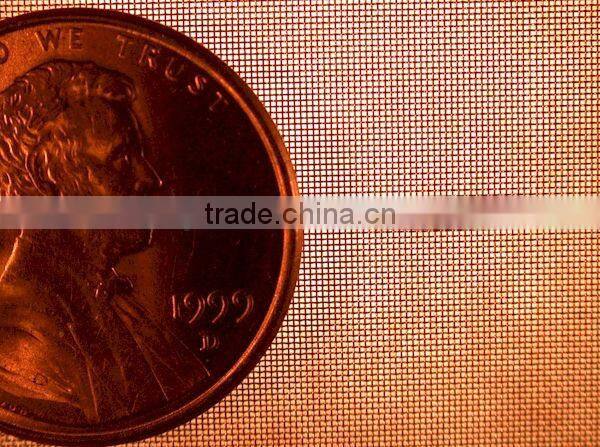

Copper Wire Mesh
The heat conduction and electrical conductivity of copper are better. Copper is soluble in nitric acid and hot concentrated sulfuric acid, slightly soluble in hydrochloric acid, and easy to be eroded by the alkali.
According to the materials, cooper mesh can divide into brass mesh (KDF mesh), Red copper mesh (pure copper mesh), and bronze mesh (tin bronze mesh).

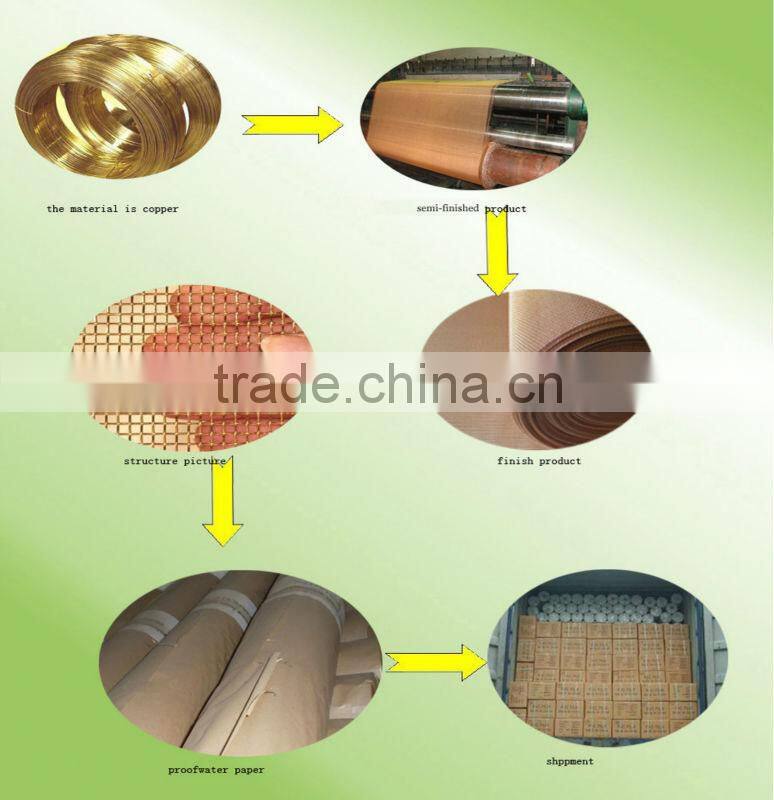

According to the production process, cooper mesh can divide into copper woven mesh, copper expanded mesh, copper perforated mesh, and copper knitted wire mesh.
Copper mesh is mainly used for weakly acidic, weakly alkaline condition of liquid or particulate filter, industrial equipment, electrodes, the electrode of the battery industry, the radio signal shielding.
Copper Wire Mesh material:Brass wire, Red copper wire, phosphor bronze wire.
Copper Wire Mesh weaving and characteristics: Plain weaving or twill weaving
Copper Wire Mesh uses:used in all kinds of liquid and gass filter of particulate, Powder ,Porcelain clay and glass print,sieving diversified pellet, powder, porcelain clay and glass,
chinaware printing, filteri
Specification List of Copper Wire Mesh
Mesh | Wire Dia. | Opening(mm) | ||
SWG | mm | inch | ||
6mesh | 22 | 0.711 | 0.028 | 3.522 |
8mesh | 23 | 0.610 | 0.024 | 2.565 |
10mesh | 25 | 0.508 | 0.020 | 2.032 |
12mesh | 26 | 0.457 | 0.018 | 1.660 |
14mesh | 27 | 0.417 | 0.016 | 1.397 |
16mesh | 29 | 0.345 | 0.014 | 1.243 |
18mesh | 30 | 0.315 | 0.012 | 1.096 |
20mesh | 30 | 0.315 | 0.0124 | 0.955 |
22mesh | 30 | 0.315 | 0.0124 | 0.840 |
24mesh | 30 | 0.315 | 0.0124 | 0.743 |
26mesh | 31 | 0.295 | 0.0116 | 0.682 |
28mesh | 31 | 0.295 | 0.0116 | 0.612 |
30mesh | 32 | 0.247 | 0.011 | 0.573 |
32mesh | 33 | 0.254 | 0.010 | 0.540 |
34mesh | 34 | 0.234 | 0.0092 | 0.513 |
36mesh | 34 | 0.234 | 0.0092 | 0.472 |
38mesh | 35 | 0.213 | 0.0084 | 0.455 |
40mesh | 36 | 0.193 | 0.0076 | 0.442 |
42mesh | 36 | 0.193 | 0.0076 | 0.412 |
44mesh | 37 | 0.173 | 0.0068 | 0.404 |
46mesh | 37 | 0.173 | 0.0068 | 0.379 |
48mesh | 37 | 0.173 | 0.0068 | 0.356 |
50mesh | 37 | 0.173 | 0.0068 | 0.335 |
60X50mesh | 36 | 0.193 | 0.0076 | - |
60X50mesh | 37 | 0.173 | 0.0068 | - |
60mesh | 37 | 0.173 | 0.0068 | 0.250 |
70mesh | 39 | 0.132 | 0.0052 | 0.231 |
80mesh | 40 | 0.122 | 0.0048 | 0.196 |
90mesh | 41 | 0.112 | 0.0044 | 0.170 |
100mesh | 42 | 0.012 | 0.004 | 0.152 |
120X108mesh | 43 | 0.091 | 0.0036 | - |
120mesh | 44 | 0.081 | 0.0032 | 0.131 |
140mesh | 46 | 0.061 | 0.0024 | 0.120 |
150mesh | 46 | 0.061 | 0.0024 | 0.108 |
160mesh | 46 | 0.061 | 0.0024 | 0.098 |
180mesh | 47 | 0.051 | 0.002 | 0.090 |
200mesh | 47 | 0.051 | 0.002 | 0.076 |
As We are the direct manufacturer of the copper wire mesh, we can hold each process by ourselves , so the cost will be the lowest and the quality will be the highest. If you are interested in our products, please do not hesitate to send us mails. We will provide our best products and service at our most competitive price!
We hope to establish good trade relations with customers from all over the world.
