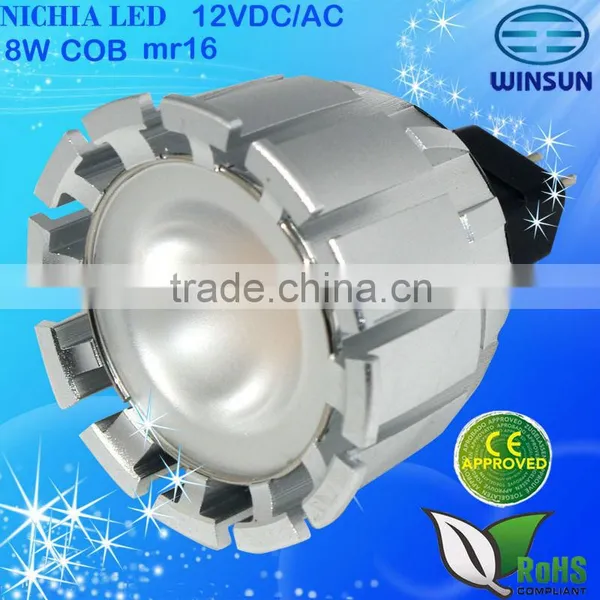

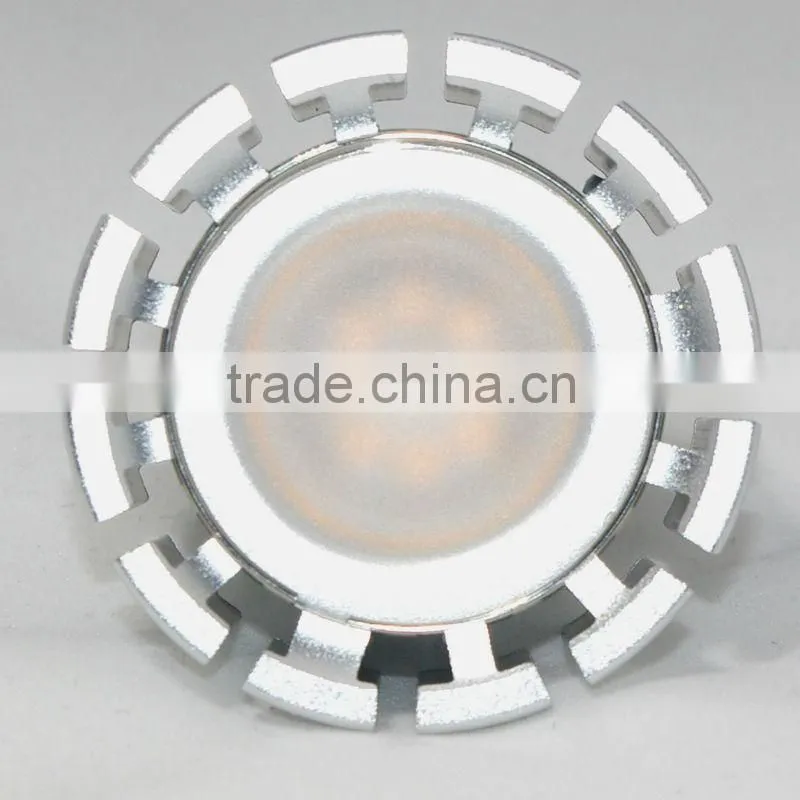

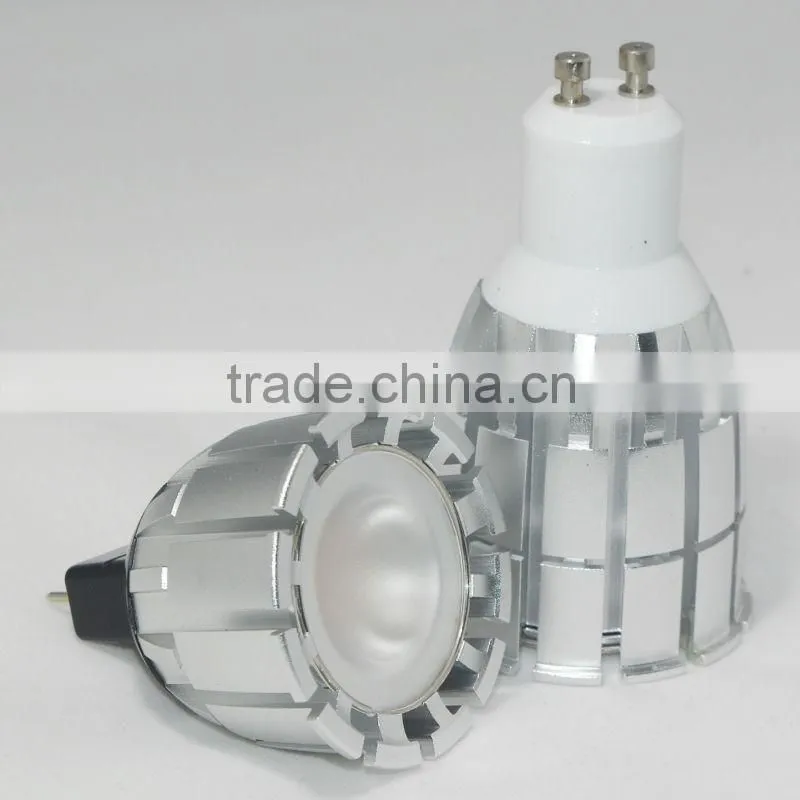

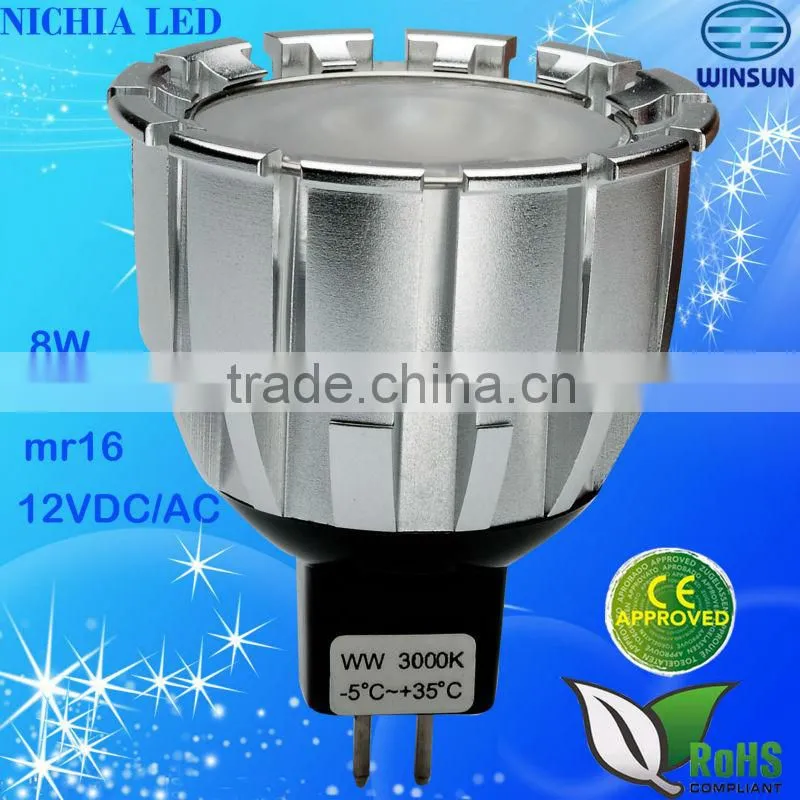

High Quality Cob Spotlight Led 8W 12VDC/AC Dimmable

Name: High Quality Cob Spotlight Led 8W 12VDC/AC Dimmable
Brand: WINSUN
SKU: 105202209

High Quality Cob Spotlight Led 8W 12VDC/AC Dimmable thumbnail-1

High Quality Cob Spotlight Led 8W 12VDC/AC Dimmable photo-1

US$ 6.8 - 7.7 MOQ: 5 Pieces

Key Specifications

Get Latest Price

LED Light Source:

NICHIA

Warranty(Years):

Input Voltage(V):

12VDC/AC

Contact Supplier Request Quote Chat Now

Shanghai Winsun Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source NICHIA

Warranty(Years) 5

Input Voltage(V) 12VDC/AC

Lamp Power(W) 8

Lamp Luminous Flux(lm) 620

Lamp Luminous Efficiency(lm/w) 77.5

Color Temperature(CCT) Other, 2400k,2700k,3000k,4000k,5000k

Working Temperature(℃) -5, 35

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum

Certification CE, Energy Star, EMC

Base Type MR16

Place of Origin Shanghai, China

Brand Name WINSUN

Model Number D5007-S-DIM-MR16

high quality cob spotlight led 8W 12VDC/AC dimmable

Product Features:
1. Adopting GENUINE NICHIA LED, lumens of
natural white up to 620Lm,and of warm white up to 580 Lm.
2. Its form-factor guarantees a 100% form-fit on the back-side of the lamp (exact form fit with halogen lamps)
3. Concentrated LEDs layout design let it delivers a uniform luminance like a COB LED lamp.
4. Delivers a beam intensity which reaches that of a 50W halogen lamp. That it can replacement for 50W halogen
lamp directly.
5. Dimmable down to 15% with most of trailing edge dimmers, when in conjunction with recommended electronic
transformers.
6. 0-100% dimmable with PWM or 0-10V dimmer.

Specification:

Model Number	D5007-S-DIM-MR16 (WW)	D5007-S-DIM-MR16(NW)
Power Consumption	8W	8W
LED	NICHIA	NICHIA
Efficiency(lm/W)	72.5lm/W	77.5lm/W
Color Temperature	2400±100K, 2700±100K, 3000±100K	4000±200K,5000±200K
Beam Angle	65°	65°
Input Voltage	12VDC/AC	12VDC/AC
Working Temperature	-5°C~+35°C	-5°C~+35°C
Base Type	MR16	MR16
Dimension(mm)	φ49.8×58	φ49.8×58
Net Weight	56g	56g
Lifetime(hr)	50000	50000

Packaging information:

Packing: 100 boxes / carton
Box	52×52×70(mm)	0.073kg
Carton	46×29×24(cm)	8.5kg

Optical Performance:

Model Number

Beam Angle

Color Temperature

Light

Intensity

Lumens

CRI

D5007-S-DIM-MR16(WW)

65°

3000±100K

420cd

580

D5007-S-DIM-MR16(NW)

65°

5000±200K

450cd

620

WINSUN Target
Creat energy saving and environmental protection products and bring them to the whole world.

WINSUN Mission
Produce the most reliable lighting products and let people easy to get them.

WINSUN Core Values
1. High quality wins value
2 .Innovation makes motivation
3. Frank honesty and mutual trust
4. Enterprising spirit and synchronous progress
5. Realistic and insistent

OEM/ODM Provided
With more than 10 years experience in the lighting industry of WINSUN's R&D department and professional trained workers who has rich assembly knowledge. With our own brand "WINSUN", OEM and ODM services can also be provided, customized products and color box with your own brand can be designed.
