Home > Auto, Motorcycle Parts & Accessories > Auto Engine Structure > Air Intake > GT1749V 454231 028145702H Turbine Shaft Wheel
GT1749V 454231 028145702H Turbine Shaft Wheel
US$ 215 - 230
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Type:
Turbochargers
Size:
30cm*30cm*25cm
Car Make:
Cars
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TD025M-09T-3.3 Turbine Wheel 49173-02401 28231-27000 28200-4A201shaft WheelUS$ 18.00 - 20.00MOQ: 1 Piece -
Shaft Wheel Turbine Wheel for GT4088 Turbo 452231-0002 449022-0013 1314933US$ 35.00 - 45.00MOQ: 1 Piece
-
Turbine Wheel for GT2860R Ball Bearing TurbochargerUS$ 15.00 - 20.00MOQ: 1 Piece
-
GTB1749VM 757042 757042-10/13/14/15/16 Turbine Shaft and WheelUS$ 17 - 19MOQ: 5 Pieces
-
GT2556V 740244-0001 Turbine Shaft Wheel for Turbo 454191-0015, 454191-0001, 454191-0003, 454191-0004US$ 17 - 19MOQ: 5 Pieces
Type
Turbochargers
Size
30cm*30cm*25cm
Car Make
Cars
OE NO.
028145702H, 028145702HV225
Place of Origin
Anhui, China
Brand Name
Raiko
Model Number
GT1749V
Warranty
12 Months
GT1749V 454231 028145702H turbine shaft wheel
Product details:
| Part Number | 454231-5007S |
| Previous Version | 454231-0001, 454231-0003, 454231-0004, 454231-0007, 454231-5005S, 454231-5012S, 454231-9012S, 454231-0007, 454231-7 |
| OE number | 028145702H, 028145702HV225, 028145702HV500, 028145702HX, 028145702HV |
| Year | 1997-04 |
| CHRA | 433395-0019 (433395-5019S) |
| Turbo Model | GT1749V (S1), GT1749V(S2) |
| Engine | AVB, AHH/AFN, TDI 110 PD, TDI 115 PD, PD UI |
| Displacement | 1.9L, 1900 ccm |
| KW | 110/115 |
| Fuel | Diesel |
| Bearing Housing | 434533-0002/433145-0004 |
| Turbine Wheel | 434533-0002 |
| Comp. Wheel | 434812-0001 |
| Back plate | 434813-0001/700593-0006 |
| Heat Shield | 433112-0001 |
| Repair Kit Minor | 732136-0001 |
| Repair Kit Major | 732248-003/732245-0001 |
| Thrust Kit | 732248-0003 |
| Nozzle Ring Assembly | 434596-0001 |
| Turbine Housing | 701227-0001 |
| Compressor Cover | 434808-0002 |

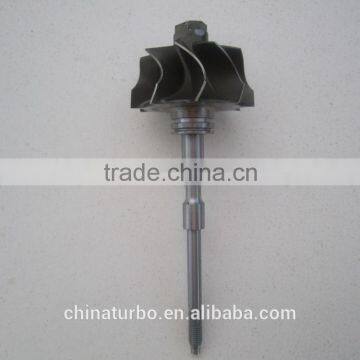

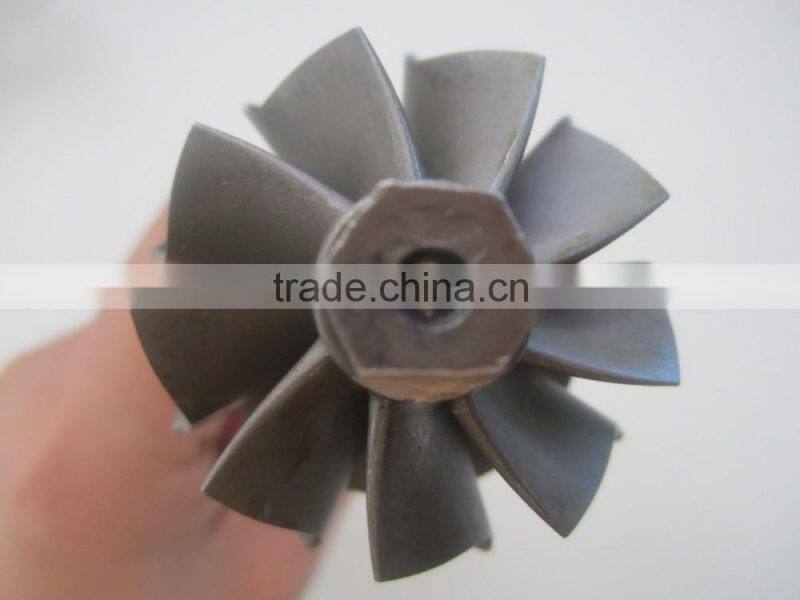

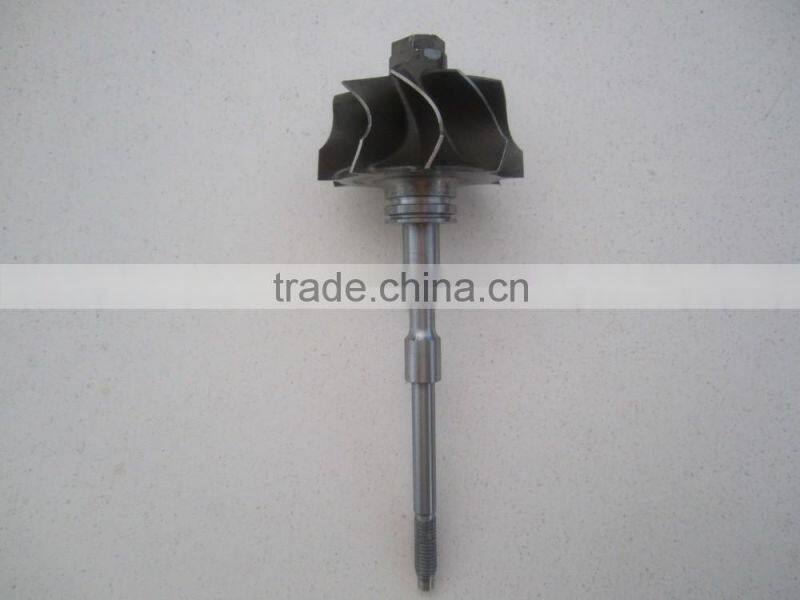

Product photos:
Turbos welcomed in Euro Market:
| No. | PART No. | Turbo Model | Engine |
| 1 |
753420 /740821 |
GT1544 | DV6TED4 - 9HZ, DV6TED4 Euro 4 |
| 2 | 708639 | GT1749V | F9Q |
| 3 |
49173-07502 49173-07506 |
TD05 | DV6ATED4 |
| 4 | 709836 | GT1852V | OM611, OM611 DE22LA |
| 5 | 700447 | GT1549V | M47D, M47D E46/E39 |
| 6 |
54359700000/ 54359700002 |
KP35 | K9K |
| 7 | 703245 | GT15S | F9Q-732/733/740/751 |
| 8 |
750431/ 717478 |
GT1749V | M47 |
| 9 |
717858/ 716215/ 712077 |
GT1749V | AVF, AWX, BLB, BPW |
| 10 | 454231-0002 | GT1749V | PD UI 100HP, TDI 115 PD |
| 11 | 701854-5004S | GT1749V | ASV, TDI 110 |
| 12 |
54399880022 54399880011 |
KP39 | BJB, BKC, AVQ |
| 13 | 713673-0002 | GT1749V | AUY/AJM, ASV, ATD/ASV, PD UI |
| 14 |
724930-5009S 756062-0001 |
GT1749V | BKD |
| 15 | 713672-0002 | GT1749V | ALH, AHF, AJM, AUY |
| 16 | 454191-0001 | GT2556V | M57 D30, M57D E38/E39 |
| 17 | 720931 | GT2052V | T4 2.5L |
Packing & Shipping:
Company Description:
RAIKO Turbo has been making turbocharger and components( including cartridge, compressor wheel, turbine wheel, turbine housing, compressor housing, waste gate, nozzle ring, repair kits,etc) for the aftermarket heave diesel trucks and light vehicles.
We develop new part to keep with the changing market request and supply arround 800 turbo models now.We producing custom turbo parts according the clients' sample or drawing.
Quality is our culture. Our quality and price is highly welcomed by many European, Japanese and South American customers. Sample order is accepted so you could check quality firstly.
We also can supply
| ITEM | TURBO MOODEL | TURBO PART NO. | ENGINE |
| TURBOCHARGER | GTA4294 | 714788-0001 | Series 60 |
| TURBOCHARGER | GTA4502V | 758204-5006S | Series 60 |
| TURBOCHARGER | TMF55 | 466713-5002S | Series 60 |
| TURBOCHARGER | HT60 | 3537074 | N14 Euro-2 Engine |
| TURBOCHARGER | HT60 | 3536804 | N14 |
| TURBOCHARGER | HX60W | 3598762 | QSX15 |
| TURBOCHARGER | HX55 | 4036892 | ISX1, ISX Signature 450 |
| TURBO | HX55W | 4090042 | ISX2 |
| TURBO | HC5A | 3523850 | KTA38 |
| TURBO | HX35W | 3536971 | 6BTA |
| TURBO | BHT3B | 3529040 | NTA855-P |
| complete turbo | HX55 | 3590044 | ISM, ISME, M11, |
| complete turbo | H1C | 3522778 | 6T590, 6BTA590 |
| complete turbo | HE351W | 4043980 | ISDE6 |
| complete turbo | HX50 | 3537245 | M11-350, M11 |
| turbo charger | HX30W | 4040353 | 4B |
| turbo charger | HX40W | 4045055 | ISLE |
| turbo charger | HX35W | 3597912 | 6BT |
| turbo charger | H2C | 3519092 | LTA 10 |
| turbo charger | H2D | 3531773 | LTA10 |
| supercharger | BHT3B | 167713 | NTA855, 88NT400 |
| supercharger | HX30W | 3592317 | 4BTA |
| supercharger | HX40W | 3592502 | 6BT |
| supercharger | HT3B | 196464/3522867 | NTC855, NT855 |
| turbo parts | HX55W | 4037480/4040844 | ISX2 |
| turbo parts | HX40W | 4038425/4089189/4090015 | 6C |
| turbo parts | HX35W | 3538414 | 6BTAA |
| turbo parts | RHF4V | VV14 | OM646.982, OM646 DE22LA |
| turbo parts | RHF4H | VN3 | YD25DDTi |
| turbocharger | RHF4 | VT10 | 4D5CDI |
| turbocharger | T04E66 | 466646-0041 | OM366LA |
| turbocharger | GT2256VK | 736088-5003S | OM647, OM647 DE LA 27, |
| turbocharger | K31 | 172743/53319887001 | Series 60 LMY98 |
| turbocharger | K16 | 53169887016 | OM904LA Euro-2, OM904LA-E2 |
| turbocharger | K16 | 53169887100 | OM904LA Euro-2 / Euro-3 |
