Product feature
GENUINE NICHIA COB LED, CRI 85, lumens of natural white up to 880Lm, and of warm white up to 800Lm.
Smart dimmable down to 5% with most trailing edge and leading dimmers or dimming systems.
Full range color temperature 2700K, 3000K, 4000K, 5000K for wide selection.
UGR<19, the anti-glare qualities feast of your eyes perfectly.
CE/EMC/LVD/SAA/C-tick approved external driver.
Unique design for good heat elimination performance.
| Model Number | D4015-COB-DIM(WW)/D4015-COB-DIM(NW) |
| Power consumption | 12W |
| LED | NICHIA |
| CRI | 85 |
| Efficiency(lm/W) | 63lm/W / 71lm/W |
| Colour Temperature | 2700K/3000K/4000K/5000K |
| Beam Angle | 50°/75° |
| Input Voltage | 220-240VAC |
| Lumens | 750lm / 850lm |
| Material | Aluminum |

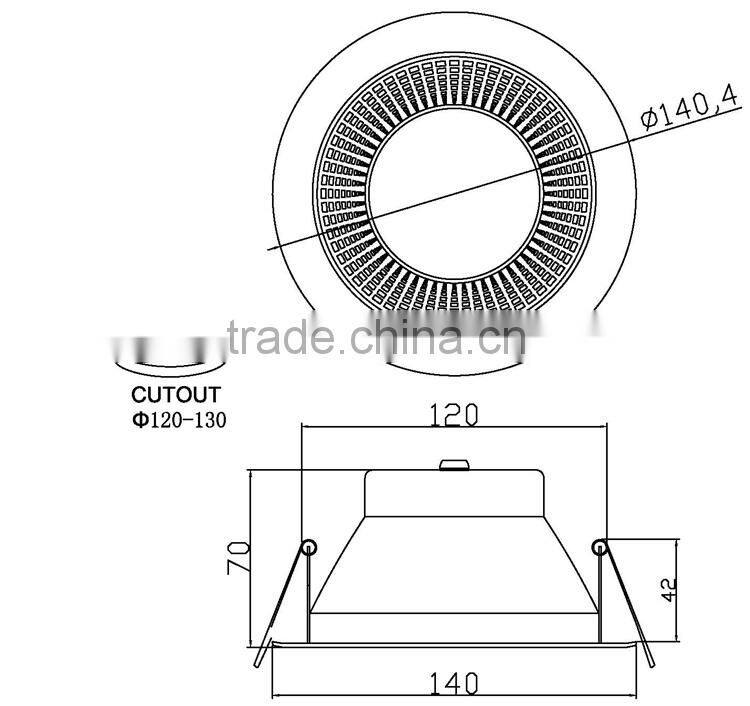

| Cutting Size(mm) | 120-130 |
| Dimension(mm) | Φ140×70 |
| Net Weight | 542g |
| Lifetime(hr) | 40000 |
| Working Temperature | -5℃+35℃ |
| Dimmable | Yes |
Note: CRI95 is also can be customized, non-dimmable version is also available.
Application:
- Area: Indoor use only.
- Purpose: Accent lighting, local lighting.
- General lighting, BAR/Restaurant, Hotel, Store, Hall / Lobby, Art gallery,
- Jewelry store, Museum, Theater, School...
General characteristics
Model Number |
Product name |
Material |
Driver |
IP Rating |
Dimension (mm) |
Cut size(mm) |
D4015-COB-DIM(WW) |
LED Down Light |
Aluminum |
External |
IP20 |
Φ140x70 |
120-130 |
D4015-COB-DIM(NW) |
LED Down Light |
Aluminum |
External |
IP20 |
Φ140x70 |
120-130 |
Product show
Packaging information
Packing: 18 PCS / carton | ||
Box |
148×148×110(mm) |
353g |
Carton |
49×48×26(cm) |
7.2 kg |
individual inner carton for each product, 10pcs/ Outer carton.
