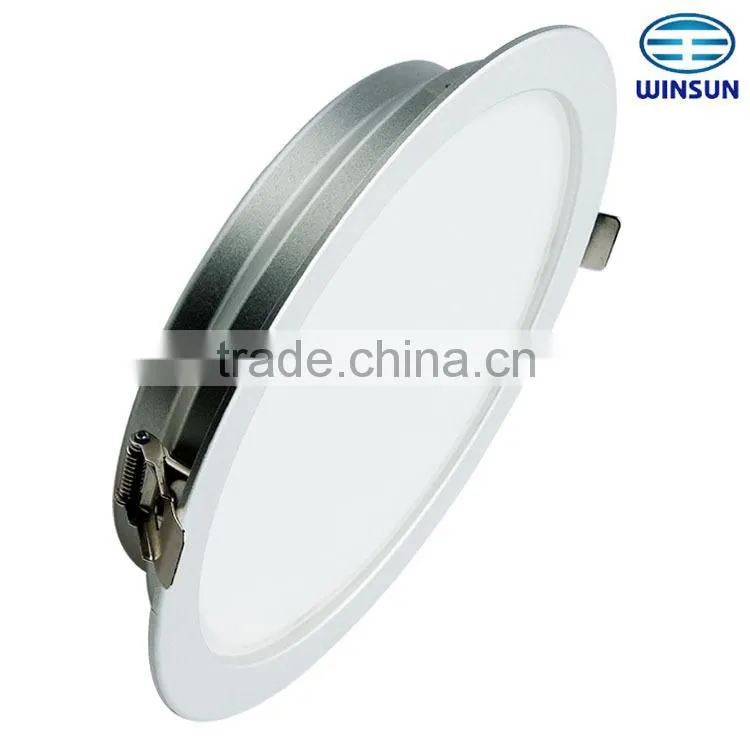

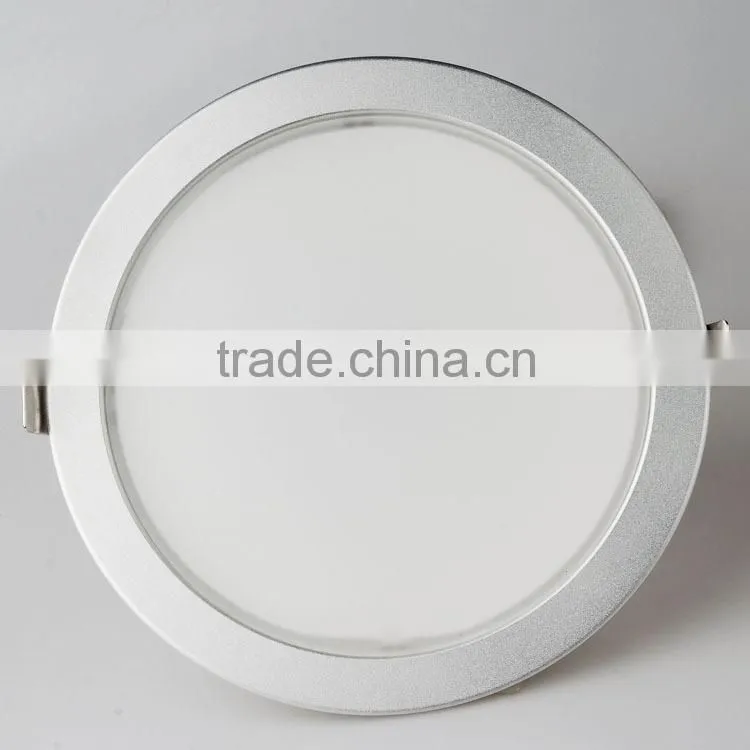

dimmable led downlight 25W Nichia LED CE SAA C-TICK approved
GENUINE NICHIA LED, lumens of natural white up to 1950Lm, and of warm white up to 1800Lm.

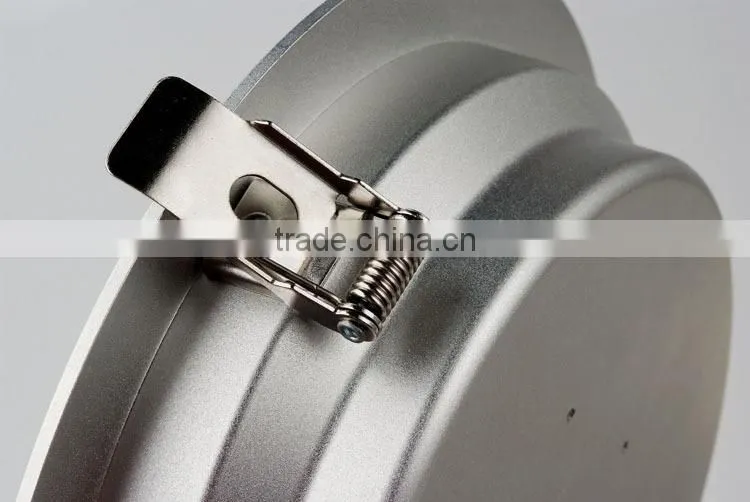

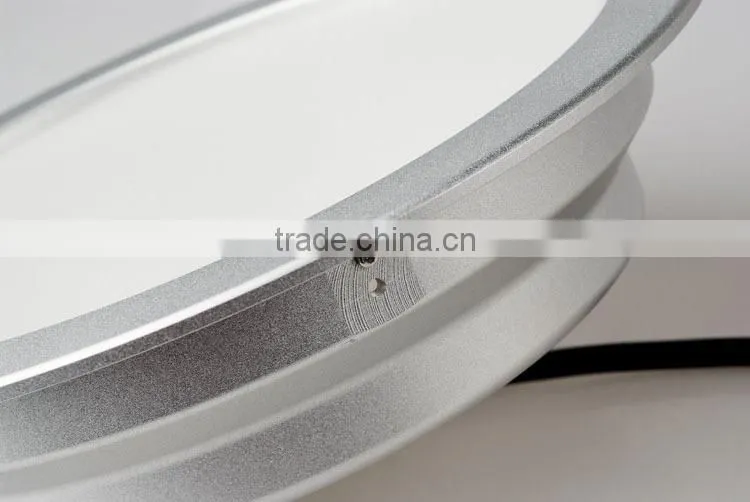

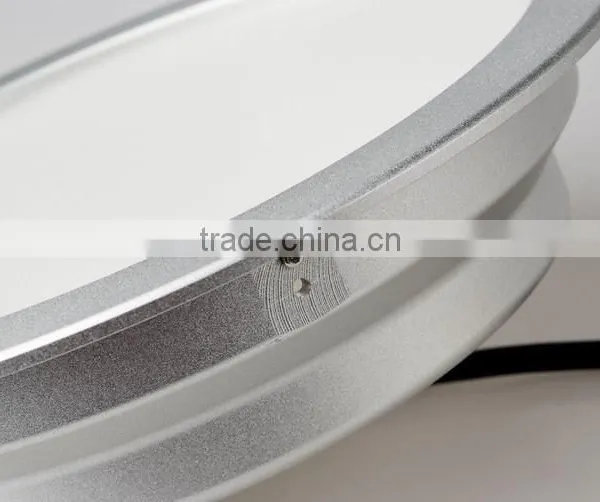

Unique design for good heat elimination performance.
Perfect optical feast of eyes.
Dimmable down to 10% with most of trailing edge dimmers.

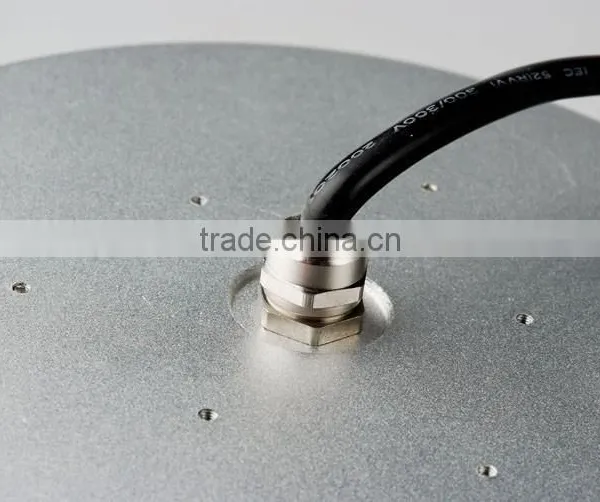

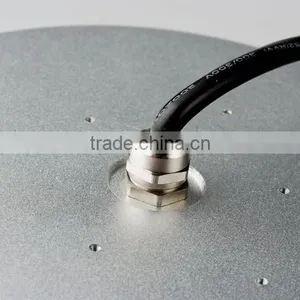

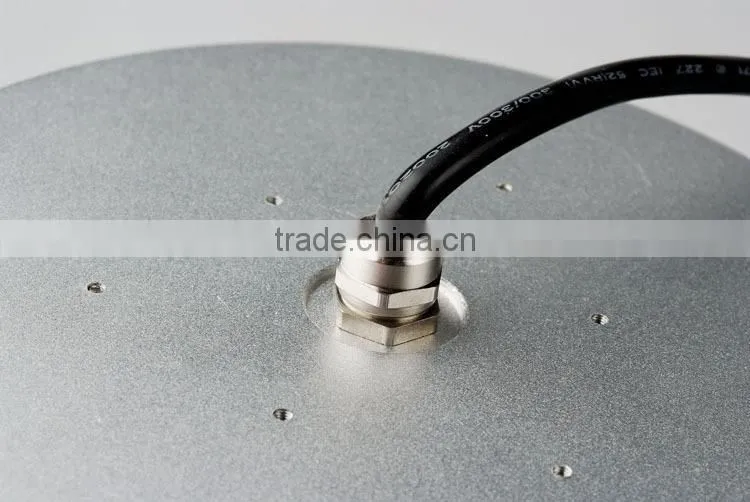

External driver with 220-240VAC multi-voltage input.
Full range color temperature 2400K, 2700K, 3000K, 4000K, 5000K for wide selection.
| Model Number | D2020A-DIM(WW)/D2020A-DIM(NW) |
| Power consumption | 25W |
| LED | NICHIA |
| CRI | 85 / 95 |
| Efficiency(lm/W) | 75lm/W / 81lm/W |
| Colour Temperature | 2400K/2700K/3000K/4000K/5000K |
| Beam Angle | 90° |
| Input Voltage | 220-240VAC |
| Lumens | 1800lm / 1950lm |
| Material | Aluminum |
| Cutting Size(mm) | Φ195 |
| Dimension(mm) | Φ230×65 |
| Net Weight | 750g |
| Lifetime(hr) | 40000 |
| Working Temperature | -5℃+35℃ |
| Dimmable | Yes |
Note: Lumens of CRI 95 LED is around 15% lower than lumens of CRI 85 LED.
General characteristics
Model Number |
Product name |
Material |
Driver |
IP Rating |
Dimension (mm) |
Cutting size(mm) |
D2020A-DIM(WW) |
LED down light |
Aluminum |
External |
IP44 |
Φ230x65 |
195 |
D2020A-DIM(NW) |
LED down light |
Aluminum |
External |
IP44 |
Φ230x65 |
195 |

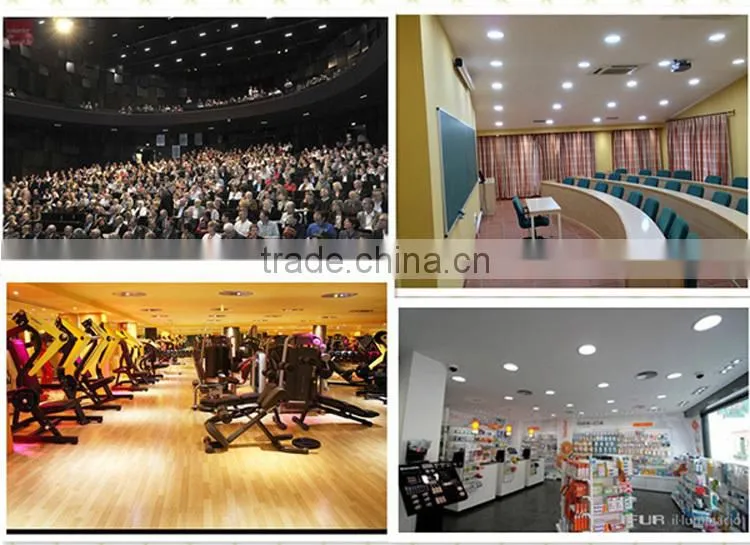

Application:
- Area: Indoor use only.
- Purpose: Accent lighting, local lighting.
- General lighting, BAR/Restaurant, Hotel, Store, Hall / Lobby, Art gallery,
- Jewelry store, Museum, Theater, School...
Packaging information
Packing: 10 PCS / carton | ||
Box |
24x24x10(cm) |
920g |
Carton |
49×48×26(cm) |
9.55kg |
individual inner carton for each product, 10pcs/ Outer carton.
