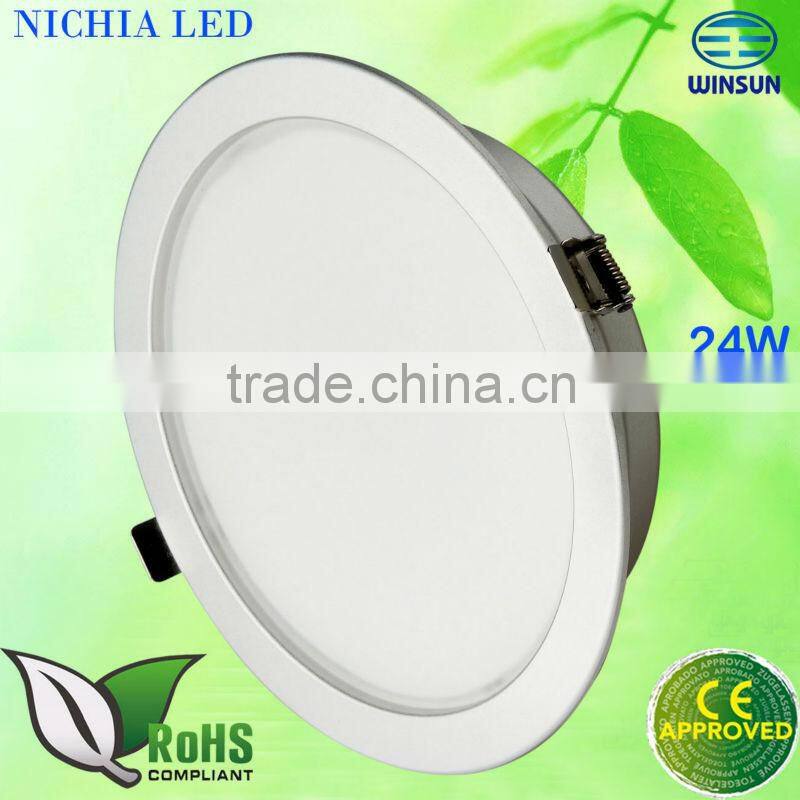

LED Recessed Downlight 24Watts (8"/200mm)with CE,SAA,C-tick approved, dimmable 100-240VAC , 45000 hrs lifetime with genuine NICHIA LED

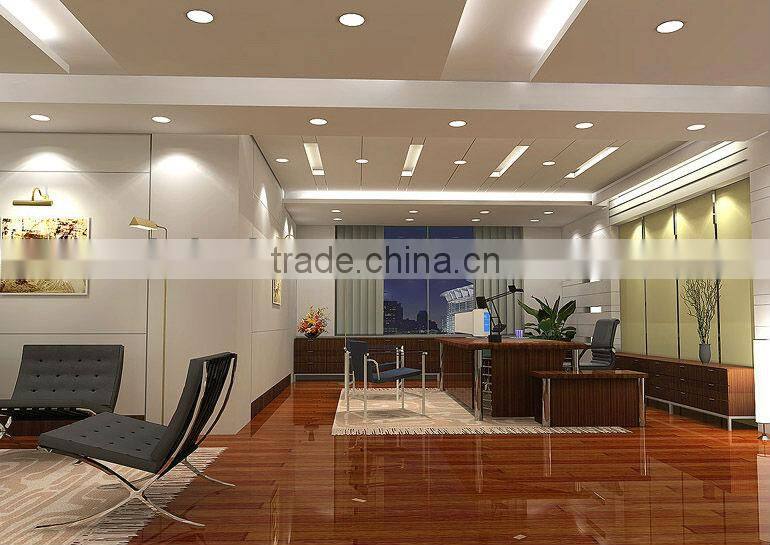

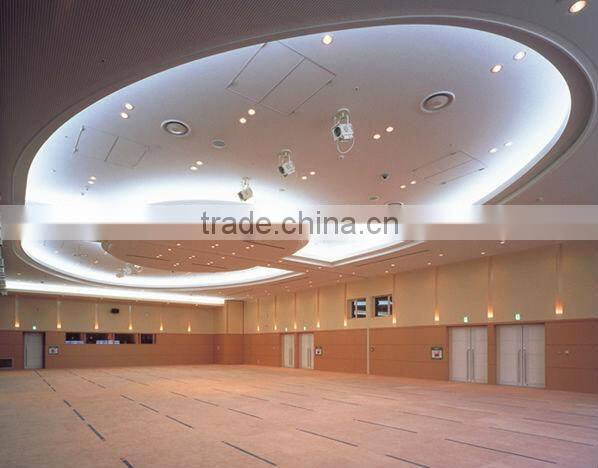

Application:
Area: Indoor use only.

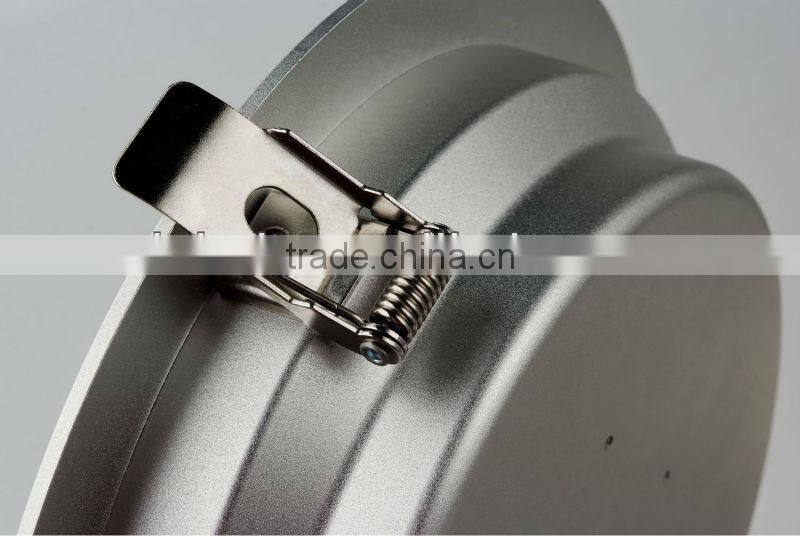

Easy use and easy installation
Product feature:
1.NICHIA 757 LED
2.Dimmable with most of leading edge or trailing edge dimmers, dimming level is as low as 10%,real dimming performance depends on dimmer type.
3. Perfect optical feast of eyes
4. Unique design for good heat elimination performance.
5. Long life time
Specification:
Model Number | D2020A-DIM(WW) | D2020A-DIM(NW) |
Power Consumption | 24 (24×0.8W) | 24 (24×0.8W) |
LED | NICHIA | NICHIA |
Efficiency(lm/W) | 66.7 lm/W | 72.9 lm/W |
Color Temperature | 2700±100K , 3000±100K | 4000±200K , 5000±200K |
Beam Angle | 90° | 90° |
Input Voltage | 100-240VAC | 100-240VAC |
PFC | 0.9 | 0.9 |
Working Temperature | -5°C~+35°C | -5°C~+35°C |
Dimension | A225*65 (mm) | A225*65 (mm) |
Cutting Size | 200mm | 200mm |
Net Weight | 813 g | 813 g |
Lifetime(hr) | 40000 | 40000 |
Packaging Information
Packing: 10 PCS / carton | ||
Box | 24x24x10(cm) | 1055g |
Carton | 50×50×25(cm) | |
Optical Performance:
Model Name | Color Temperature | Light Intensity | Lumens | CRI |
D2020A-DIM(WW) | 3000±100K | 740cd | 1600lm | 85 |
D2020A-DIM(NW) | 5000±200K | 900cd | 1750lm | 85 |
