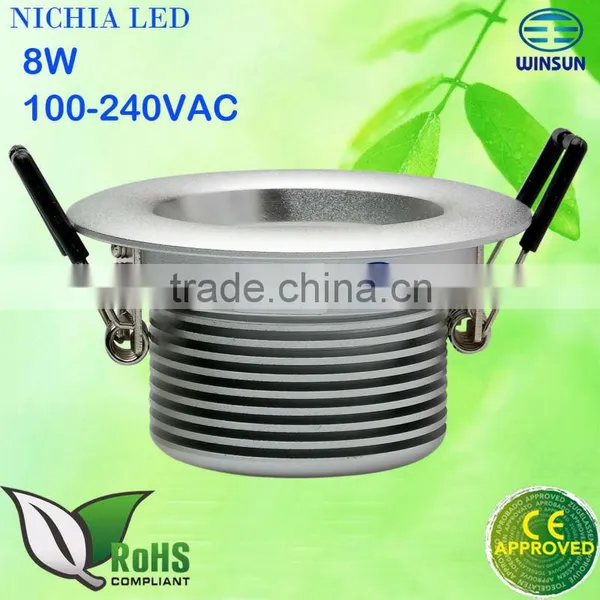

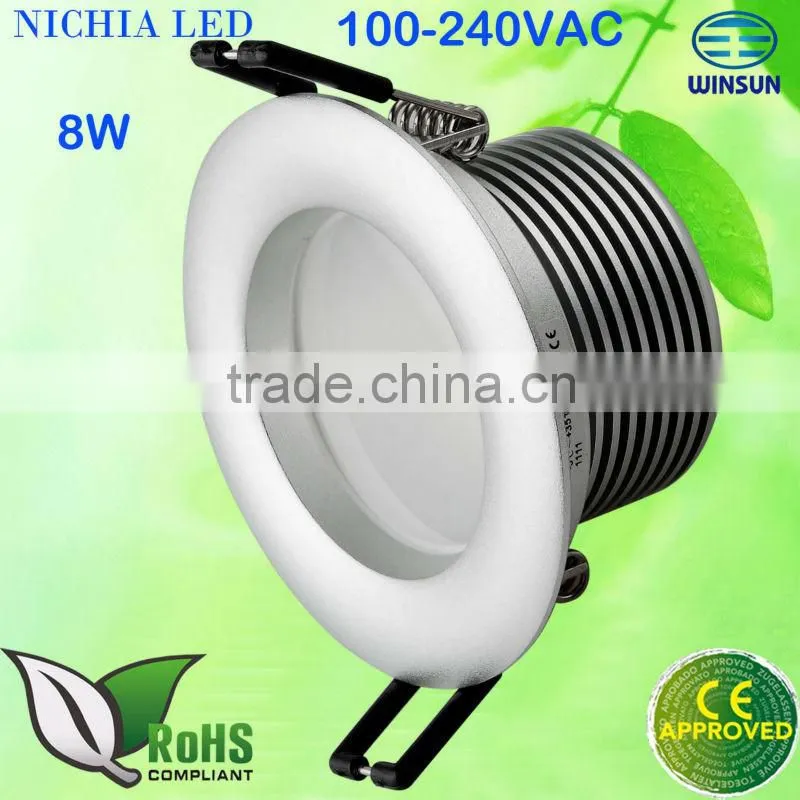

CE&RoHS LED downlight 8W 100-240VAC
- 10000 Piece / Pieces per Month
- Shanghai
- D/P D/A Credit Card PayPal
- Linear Downlight
- LED Downlight
- A Anti-glare Waterproof IP65 led downlight project waterproof spots light 5w 7w 9w 12w downlight
- A Surface Mounted Led Downlight AC LED Bulb Outdoor Adjustable Led Downlight Lamp Spot Light
- Dimmable IP65 LED Down Lights (30-300W)
- Emergency IP65 LED Down Lights (30-300W)
Product Details
LED Light Source: | NICHIA | Warranty(Years): | 3 | Input Voltage(V): | 100-240VAC |
Lamp Power(W): | 8 | Lamp Luminous Flux(lm): | 360 | Lamp Luminous Efficiency(lm/w): | 45.00 |
Color Temperature(CCT): | Other, 2700K,3000K,4000K,5000K | Working Temperature(℃): | -5, 35 | Working Lifetime(Hour): | 45000 |
Lamp Body Material: | Aluminum Alloy | IP Rating: | IP44 | Certification: | CE, Energy Star, EMC |
Model Number: | D7505-DIM | Place of Origin: | Shanghai, China | Brand Name: | WINSUN |
Product Description
NICHIA led cob led downlight 22.5W ,100-240VAC ,CE and ROHS approved ,45000 hrs lifetime with genuine NICHIA LED
Applications:
1. Area: Indoor use only.
2. Easy use and easy installation
Features:
1.NICHIA LED
2. Dimmable with most of leading edge or trailing edge dimmers, dimming level is as low as 10%, real dimming performance depends on dimmer type.
3.Perfect optical feast of eyes
4. Unique design for good heat elimination performance.
5.Long life time,
Specification:
Model Number | D7505-DIM(WW) | D7505-DIM(NW) |
Power Consumption | 8W (3×2.2W) | 8W (3×2.2W) |
LED | NICHIA | NICHIA |
Efficiency(lm/W) | 41.3 lm/W | 45.0 lm/W |
Color Temperature | 2700±100K, 3000±100K | 4000±200K, 5000±200K |
Beam Angle | 60°/ 90° | 60°/ 90° |
Input Voltage | 100-240VAC | 100-240VAC |
PFC | 0.9 | 0.9 |
Working Temperature | -5°C~+35°C | -5°C~+35°C |
Dimension | A92*50.5 (mm) | A92*50.5 (mm) |
Cutting Size | 75mm | 75mm |
Net Weight | 350g | 350 |
Lifetime(hr) | 40000 | 40000 |
Packaging information:
Packing: 30 boxes / carton | ||
Box | 106×106×106(mm) | 386g |
Carton | 38X31X38(cm) | 12.40kg |
Optical Performance:
Model number | Beam Angle | Color Temperature | Light intensity | Lumens | CRI |
D7505-DIM(WW) | 60° | 3000±100K | 280cd | 330lm | 85 |
D7505-DIM(NW) | 60° | 5000±200K | 310cd | 360lm | 85 |
D7505-DIM(WW) | 90° | 3000±100K | 210cd | 330lm | 85 |
D7505-DIM(NW) | 90° | 5000±200K | 220cd | 350lm | 85 |
WINSUN Target
Creat energy saving and environmental protection products and bring them to the whole world.
WINSUN Mission
Produce the most reliable lighting products and let people easy to get them.
WINSUN Core Values
1. High quality wins value
2 .Innovation makes motivation
3. Frank honesty and mutual trust
4. Enterprising spirit and synchronous progress
5. Realistic and insistent
OEM/ODM Provided
With more than 10 years experience in the lighting industry of WINSUN's R&D department and professional trained workers who has rich assembly knowledge. With our own brand "WINSUN", OEM and ODM services can also be provided, customized products and color box with your own brand can be designed.
