Home > Products > LED Down Light > led down light 20W 1900lm CE SASO IC-F rating certificated
led down light 20W 1900lm CE SASO IC-F rating certificated
- 100000 Piece / Pieces per Month
- Shanghai
- T/T Credit Card
-
Linear Downlight
-
LED Downlight
-
A Anti-glare Waterproof IP65 led downlight project waterproof spots light 5w 7w 9w 12w downlight
-
A Surface Mounted Led Downlight AC LED Bulb Outdoor Adjustable Led Downlight Lamp Spot Light
-
Dimmable IP65 LED Down Lights (30-300W)
-
Emergency IP65 LED Down Lights (30-300W)
Product Details
| LED Light Source: | SMD LED | Warranty(Years): | 2years | Input Voltage(V): | 220-240VAC |
| Lamp Power(W): | 20 | Lamp Luminous Flux(lm): | 1900 | Lamp Luminous Efficiency(lm/w): | 95 |
| Color Temperature(CCT): | Other, 2700K, 3000K, 4000K, 5000K | Working Temperature(℃): | -5, 35 | Working Lifetime(Hour): | 25000 |
| Lamp Body Material: | Aluminum | IP Rating: | Other, IP20 | Certification: | C-tick, CE, LVD, SAA, SASO |
| Model Number: | D1520V | Place of Origin: | Shanghai, China | Brand Name: | Winsun |
Product Description
Product feature
Adopted high quality SMD LED, high CRI 80.
Lumens of natural white up to 1900lm, and of warm white up to 1750lm.
Aluminum +Heat-conductive plastic material allows best value price with good heat elimination.
Integrated internal driver design makes it easy for installation.
CE/EMC/LVD approved internal driver with 220-240V input.
CE/IC-F approved internal driver with PFC>0.9.
Full range color temperature 2700K, 3000K, 4000K, 5000K for wide selection.
| Model Number | D1520V(WW)/D1520V(NW) |
| Power consumption | 20W |
| LED | SMD |
| CRI | 85 |
| Efficiency(lm/W) | 95lm/W / 88lm/W |
| Colour Temperature | 2700K/3000K/4000K/5000K |
| Beam Angle | 90° |
| Input Voltage | 220-240VAC |
| Lumens | 1900lm / 1750lm |
| Material | Heat-conductive plastic+ Aluminum |
| Cutting Size(mm) | Φ145-155 |
| Dimension(mm) | Φ183×85 |
| Net Weight | 260g |
| Lifetime(hr) | 25000 |
| Working Temperature | -5℃+35℃ |
| Dimmable | NO |
Application:
- Area: Indoor use only.
- Purpose: Accent lighting, local lighting.
- General lighting, BAR/Restaurant, Hotel, Store, Hall / Lobby, Art gallery,
- Jewelry store, Museum, Theater, School...
General characteristics
Model Number | Product name | Material | Driver | IP Rating | Dimension (mm) | Cut size(mm) | Net Weight | Lifetime (hr) |
D1520V(WW) D1520V(NW) | LED Down Light | Aluminum + Heat-conductive plastic
| Internal | IP20 | Φ183x85 | 145-155 | 260g | 25000 |

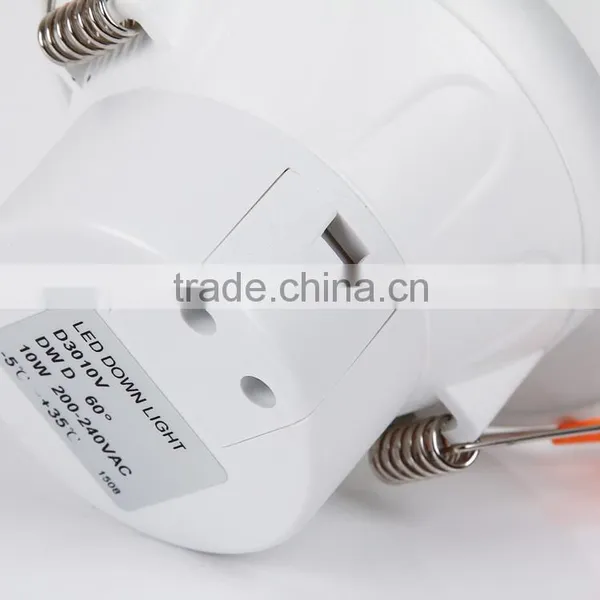

Product show
Packaging information
Packing: 12 PCS / carton | ||
Box | 19x19x10(cm) | 380g |
Carton | 58×40×22(cm) | 5.5kg |
individual inner carton for each product, 12pcs/ Outer carton.
WINSUN established in 2008, is a fast developing company who specializes in designing and manufacturing high power LED lights for indoor use like LED Spot Light (MR16 / GU10 / AR111 / PAR Light), LED Down Light, LED Ceiling Light and LED Bulb. All our products use original NICHIA LED with patent design. Having exported to most European countries and Oceania, and was highly praised by our old customers.
For more information please visit:
WINSUN Target
Creat energy saving and environmental protection products and bring them to the whole world.
WINSUN Mission
Produce the most reliable lighting products and let people easy to get them.
WINSUN Core Values
1. High quality wins value
2 .Innovation makes motivation
3. Frank honesty and mutual trust
4. Enterprising spirit and synchronous progress
5. Realistic and insistent
