AR111 LED COB G53 12VAC/DC 12W 1030lm CE approved CRI85/95
- 50000 Piece / Pieces per Month
- Shanghai
- Credit Card
Product Details
| LED Light Source: | LUMINUS COB LED | Warranty(Years): | 5 | Input Voltage(V): | 12VDC/AC |
| Lamp Power(W): | 12 | Lamp Luminous Flux(lm): | 1030 | Lamp Luminous Efficiency(lm/w): | 86 |
| Color Temperature(CCT): | Other, 2700K, 3000K, 4000K and 5000K | Working Temperature(℃): | -5, 35 | Working Lifetime(Hour): | 50000 |
| Lamp Body Material: | Aluminum | Certification: | CE, EMC, LVD, SAA | Base Type: | Other, G53 |
| Place of Origin: | Shanghai, China | Brand Name: | Winsun | Model Number: | S13-COB-DIM-AR111 |
Product Description
AR111 LED COB G53 12VAC/DC 12W 1030lm CE approved CRI85/95
1. Adopting LUMINUS LED, lumens of natural white up to 1030lm,and of warm white up to 980lm.
2. Dimmable down to 15% with most of trailing edge dimmers when in conjunction with recommended electronic transformers.
3. Aluminum + Heat-conductive plastic material perfects the heat elimination.
4. When using electronic transformer, the brightness of this lamp is more than 90% of the one with DC transformer.
5. Long life time up to 50000hrs.
| Model Number | S13-COB-DIM-AR111(WW)/ S13-COB-DIM-AR111(NW) |
| Power consumption | 12W |
| LED | NICHIA COB |
| CRI | 85 |
| Efficiency(lm/W) | 82lm/W / 86lm/W |
| Colour Temperature | 2700K/3000K/4000K/5000K |
| Beam Angle | 15°/24°/ 45° |
| Input Voltage | 12VDC/AC |
| Lumens | 980lm / 1030lm |
| Material | Aluminum + Heat-conductive plastic |
| Base Type | G53 |

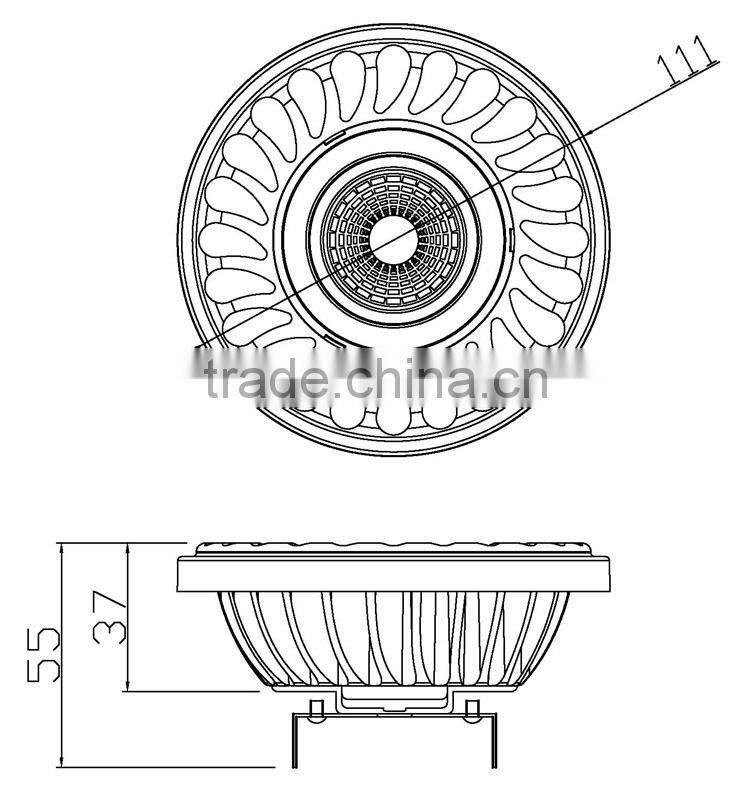

| Dimension(mm) | Φ111×55 |
| Net Weight | 159g |
| Lifetime(hr) | 50000 |
| Working Temperature | -5℃+35℃ |
| Dimmable | YES |
Application:
- Area: Indoor use only.
- Purpose: Accent lighting, local lighting.
- General lighting, BAR/Restaurant, Hotel, Store, Hall / Lobby, Art gallery,
- Jewelry store, Museum, Theater, School...
General characteristics
Model Number | Product name | Material | Base type | IP Rating | Dimension (mm) | Net Weight |
S13-COB-DIM-AR111(WW) | LED spot AR111 | Aluminum + Heat -Conductive Plastic | AR111 | IP20 | Φ111×55 | 159g |
S13-COB-DIM-AR111(DW) S13-COB-DIM-AR111(NW) | LED spot AR111 | Aluminum + Heat -Conductive Plastic | AR111 | IP20 | Φ111×55 | 159g |
Packaging information
Packing: 40 PCS / carton | ||
Box | 118×118×87(mm) | 242 g |
Carton | 62×39×27(cm) | 10.6 kg |
individual inner carton for each product, 40pcs/ Outer carton.
