5 wire NO+NC AC+DC 50CM light detector photoelectric sensor E3JK-DS50M1

Specifications

E3JK 5wire NO+NC AC+DC light detector photoelectric sensor
Photoelectric sensor factory
Specialized in light detector
CE

Welcome,my friend! Glad to introduce  5 wire NO+NC AC+DC 50CM light detector photoelectric sensor E3JK-DS50M1  and our company Hugong Group to you. If you have any questions, please don't hesitate to ask me.







Product details





       The specification of   5 wire NO+NC AC+DC  50CM light detector photoelectric sensor E3JK-DS50M1



Dimension				18*50*50
Detection mode				Diffuse type
Detection distance				50cm
Detection range adjustment				Potentiometer adjustment

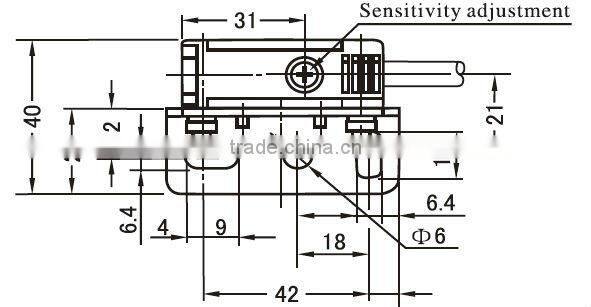

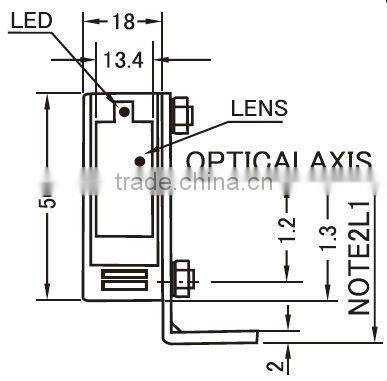

Dimensional drawing
Model	DC type	NPN	NO	E3JK-DS50N1
			NC	E3JK-DS50N2
		PNP	NO	E3JK-DS50P1
			NC	E3JK-DS50P2
		Relay output 5-wire	NO+NC	E3JK-DS50M1   DC
	AC type	Relay output 5-wire	NO
			NC
			NO+NC	E3JK-DS50M1   AC
	AC+DC type	Relay output 5-wire	NO+NC	E3JK-DS50M1   AC/DC

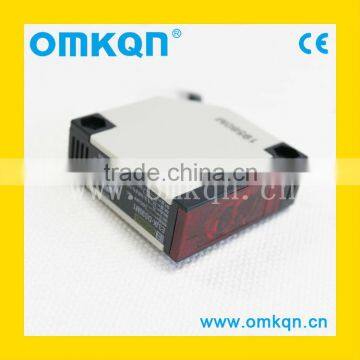

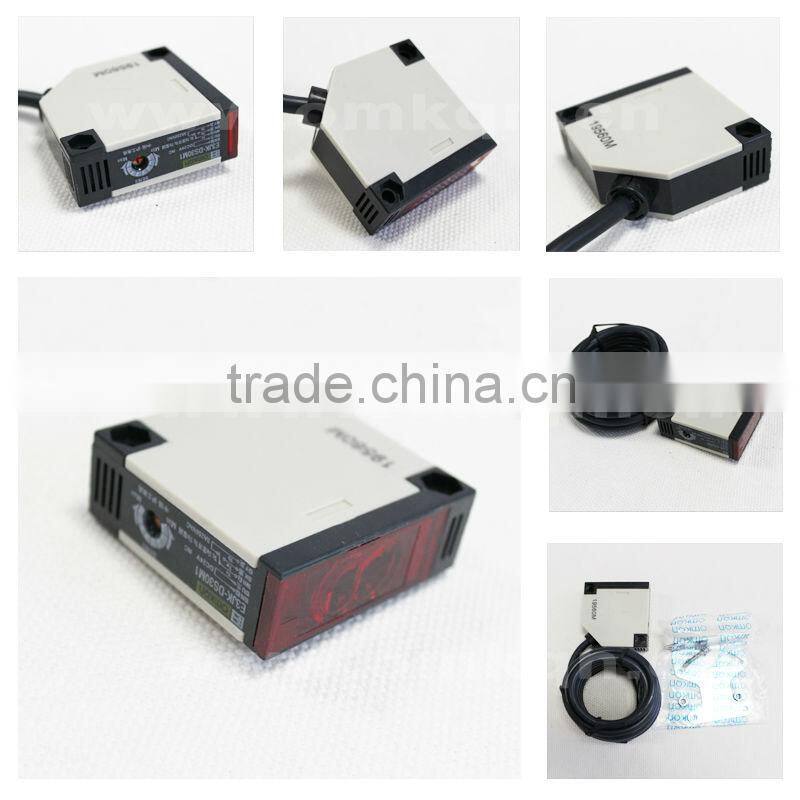

           Product appearance pictures of  5 wire NO+NC AC+DC  50CM light detector photoelectric sensor E3JK-DS50M1







            Installation







                Applications legend















           Whate type of sensor do you need? You need to consider the following factors:



Detected object	magnetic metal	inductive proximity sensor
	conventional object	capacitive proximity sensor
		photoelectric sensor
Detecting range	less than 50mm	proximity sensor
	greater than 50mm	photoelectric sensor
Detection mode	magnetic	hall effect sensor
		reed sensor
	infrared	photoelectric sensor
Installation dimension	cylindrical	cylindrical type
	square	square type
	groove	groove type
Connection	cable	cable type
	connector	connector type



There are other factors like current,voltage,housing material,accessory and so on.If you are confused on choosing a right type of sensor,  please contact us without hesitation.





Factory information





         2.We are professional sensor manufacturer with professional R & D team ,mass production, complete type of sensors and  large inventory spot.







        3.Process:our products will be packed and shipped ,undergoing the strict material selection,production ,inspection and a series of steps







        4.CE certification





         5.Here are our ministry of foreign trade's members.







Thanks for your time , Waiting for your kindly inquiry:)
