Wholesale Professional OBD II Multi Language VW & AUDI Code Reader VAG

Specifications

  VW & AUDI Code Reader

Features of Product:

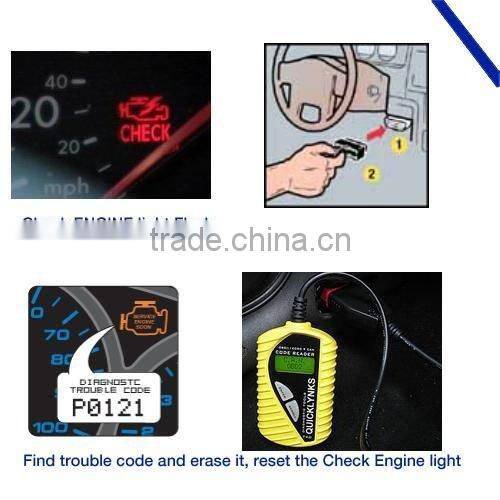

1.       Read vw and Audi codes, including engine, abs, airbag, auto trans.
2.       Supports VW CAN (Controller Area Network) Protocol
3.       Erase touble codes
4.       Resets Check Engine Lights / MIL ( malfunction indicator lamp) Status
5.       Professional scanner for vw and Audi
6.        Dispay: LCD, 2 lines, 8 characters, backlit
7.       2-Keypads
8.       Mini Carrage
9.       Language Version: English.

10.     One year warranty.

Specifications:
1. Display: Backlit LCD 2-line , 8 characters.
2. Operating Temperature: 0 to 50C (32 to 122 F).
3. Storage Temperature: -20 to 70C (-4 to 158 F).
4. Power: 8 to 16 Volts provided via vehicle battery.
5. Dimensions: L: 126mm (5.0") * W: 78 mm (3.2") * H: 28 mm (0.85")
6. Weight : 200g (7.12oz).

Accessories Included:

1. User's Manual  (Instructions on tool operations)
2. CDs  (Includes user's manual, DTCs lookup library)

3. Nylon bag

4. color box

Car coverage

Works with Volkswagen and Audi (Audi/Seat/Skoda/Jetta/Golf/
Beetle/Touareg/GTI/Passat and more) sold worldwide of 1990 or newer
models.

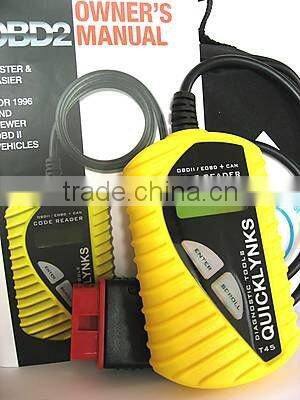

The T45 VW/AUDI Code Reader is specially designed to work with
most Volkswagen and Audis sold Worldwide of 1990 or newer models.
If a VW/AUDI has a 16-pin "OBD-II style" Data Link Connector(DTC),
the code reader will certainly work. If it has an old-style 2x2 Data Link
Connector(DTC), then it depends on whether there are 4 or 3 wires
connecting to the pins. If there are 4 wires, each connecting a pin, then it
will work. If there are only 3 wires, leaving one pin disconnected, then it will
not work .
For VW/AUDIs with old-style 2x2 Data Link Connector(DTC), you
need to have a 2x2 cabling adapter which is not included in this product
package.
