Help CenterAWS A5.20 E71T-1 Flux Cored Welding Wires 0.8MM
Related Products
Specifications
1.ISO9001:20082.manufacture flux cored wire for 10years

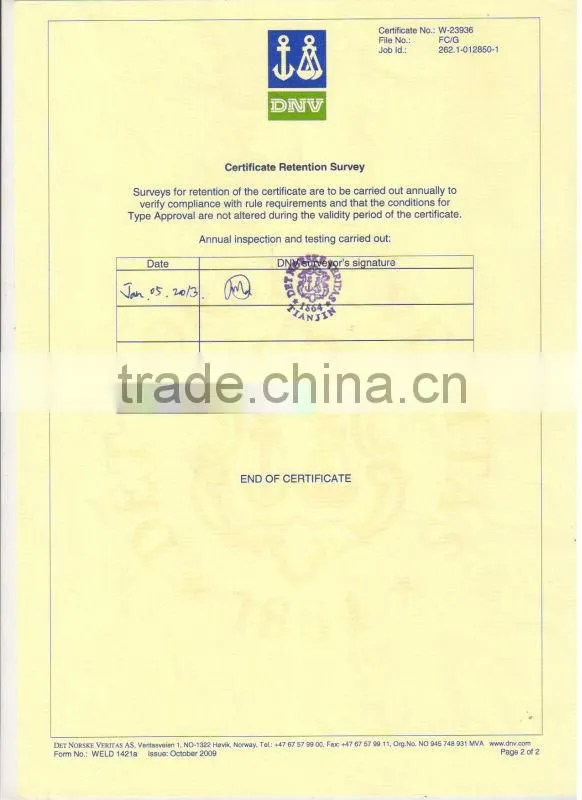

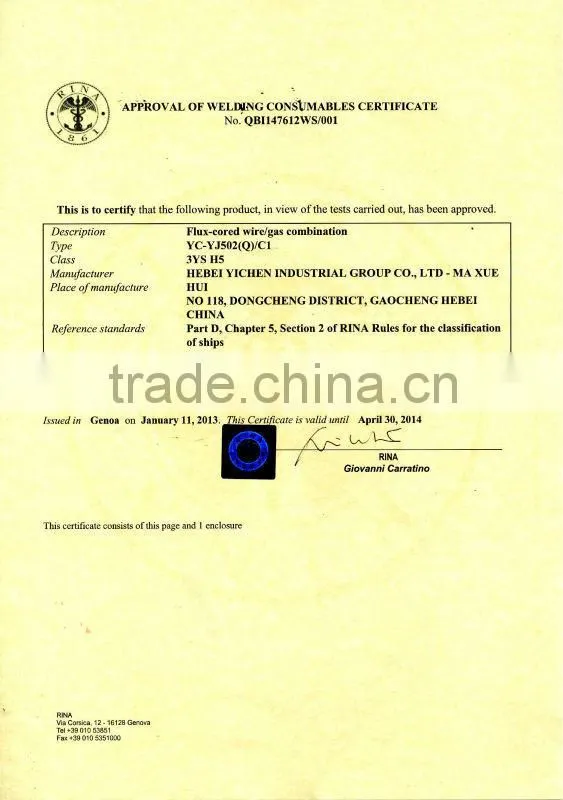

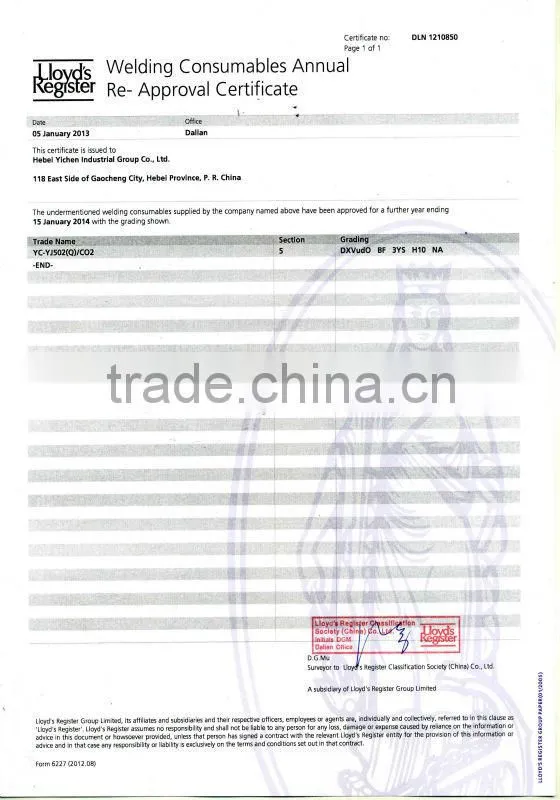

3.approve ABS,CCS,DNV,LR,GL,BV,NK,KR,RINA ship classification
1. Specification Conformance
AWS A5.20 E71T-1 GB/T10045-2001 E501T-1 / JIS Z3313 / YFW C50DR
2.Description

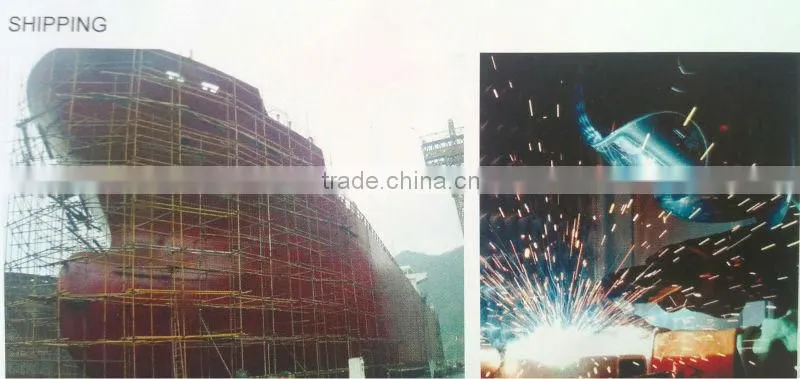

AWS A5.20E71T-1 is a kind of TI type flux cored wire for CO2 welding ,it has high cladding efficiency, good welding technical performance in all-position welding, apply for low carbon steel and 500MPA grade strength steel welding, such as ships, pressure vessels, mechanical equipments and bridges.
3. Chemical Composition of Deposited Metal (%)
C≤0.18, Mn≤1.75, Si≤0.90, P≤0.03, S≤0.03, Cr≤0.20, Ni≤0.50, Mo≤0.30, V≤0.08, Cu≤0.35
4.Mechanical Properties of Deposited Metal
Yield Point≥480 Mpa, TensileStrength≥400 Mpa,
Elongation≥22%, Test Temp -20°C, Impact Energy ≥27 J
5. AVAILABLE DIAMETER
0.8MM/0.9MM/1.0MM/1.2MM/1.4MM/1.6MM

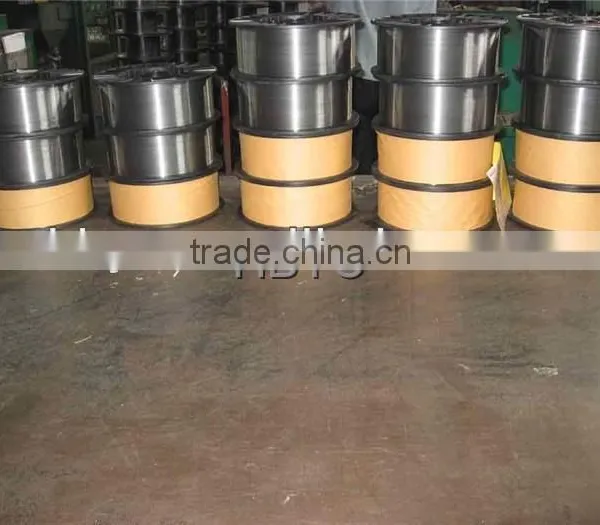

6. PACKAGE
0.45kgs/spool, 0.9kgs/spool, 1kgs/spool: 40spools / box, 32boxes/ pallet
5kgs/spool : 5kgs/carton, 200cartons/pallet
15kgs/spool :72cartons/pallet, 22pallets/20'container
One spool is vacuum packed by aluminum film and then one carton outside
7. Shielding Gas
100% CO2
8. Recommended Current (DC+) and Voltage Ran
|
Welding position |
Dia.1.2 mm |
Dia.1.6 mm |
||||
Current Range |
Voltage Range |
CO2 Flow |
Current Range |
Voltage Range |
CO2 Flow |
|
Flat |
120~320A |
16~34V |
15~25 L/Min |
180~400A |
22~42V |
15~25 L/Min |
Horizontal |
120~280A |
16~29V |
15~25 L/Min |
180~400A |
22~42V |
15~25 L/Min |
Overhead |
120~240A |
16~28V |
15~25 L/Min |
|
|
|
Vertical Up |
120~240A |
16~27V |
15~25 L/Min |
180~260A |
23~30V |
15~25 L/Min |
Vertical Down |
120~260A |
16~29V |
15~25 L/Min |
180~260A |
23~30V |
15~25 L/Min |
