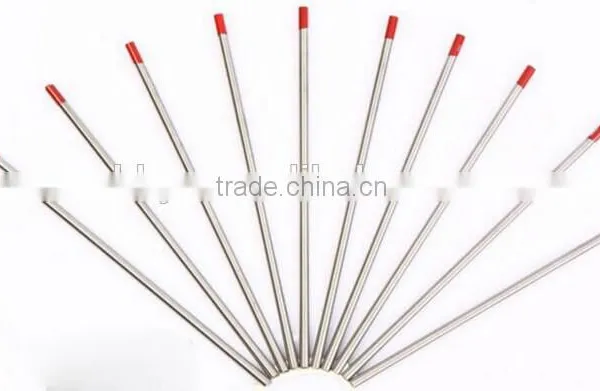

tungsten electrode wt20 RED

Specifications

tungsten electrode
1.Model: WP,WT20,WZr3,WZr8,WL10, WL15, WL20,Wc20,WY20
2.Dia 1.0-20.0mm
3.Length 50,75,150,175mm



welding electrode Tungsten Electrode  tungsten electrode wt20







Thoriated tungsten electrode is the most widely used welding material.

Characteristic: Thoriated tungsten electrode is the most widely used welding material. 2% Thoriated Tungsten contains 2% thorium oxide (ThO 2 ) that is dispersed inside the whole length of the Tungsten rod. 2% Tungsten electrode provides excellent resistance from weld pool contamination and offers the welder easier arc starting capabilities and a more stable arc.

1) 2% thoriated tungsten contains a nominal 2wt-% or thorium oxide (tho2) that is evenly dispersed throughout the entire length of the tungsten. The most common type of tungsten used today. Provides excellent resistance from weld pool contamination while at the same time offers the welder easier arc starting capabilities and a more stable arc. Generallyused for DC electrode negative or straight polarity applications such as carbon and stainless steels, nickel alloys and titanium.

2) color mark: Wt20 (red)

3) other impurity: _0.20%

4) diameter: 1.0 - 12.0mm

5) length: 50.00, 75.00, 150.00, 175.00mm

6) quality of surface: Ground finish, polish finish







Production: Forming production process control

Our company strictly enforce national standards consumables batch inspection requirements







Shipping:Logistics convenience, the company itself has a large warehouse store stocking, the company is located 30 kilometers east of Shijiazhuang, close to Shi railway, 307 State Road and Shi Huang highway. 30 km from Shijiazhuang airport, close to the port of Tianjin Port, the goods brought into the output is very convenient.
