Specifications
1.Welding Rods factory2.export 12 years
3.free sample

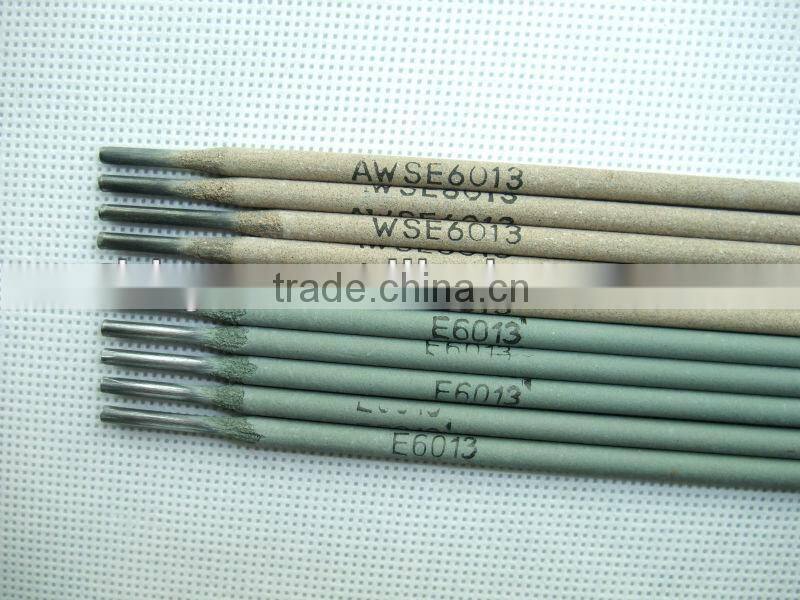

Welding Electrodes e6013 Price
Specification Conformance
AWS E6013
Description
E6013 is the most popular mild steel welding rod with titania type coating. It is able to provide excellent welding performance and satisfactory weld can be obtained in all position welding.It is widely used in ordinary tensile strength mild steel structures especially suitable for intermittent welding to sheet steel and small work pieces as well as cosmetic welding with smooth and shiny appearance.
Application:
The E6013 welding electrodes are widely used on both AC and DC in all position and suitable for welding sheet metal structure made of low-carbon steel, such as ships, vehicles, building, and general machinery
Chemical Compossition of Deposited Metal (%)
|
C |
Mn |
Si |
S |
P |
Guaranteed value |
≤0.2 |
≤1.2 |
≤1.00 |
≤0.035 |
≤0.040 |
Typical value |
0.07 |
0.4 |
0.25 |
0.019 |
0.025 |
Sizes, Length & Recommended Current (AC/DC)
Diameter (mm) |
φ2.0 |
φ2.5 |
φ3.2 |
φ4.0 |
φ5.0 |
Length (mm) |
300 |
300/350 |
350 |
400 |
400 |
Current (A) |
40~70 |
50~90 |
80~130 |
150~200 |
180~250 |
Mechanical Properties of Deposited Metal
|
Rm (Mpa) |
ReL(Mpa) |
A(%) |
KV2(J) |
KV2(J) |
Guaranteed value |
σb≥420 |
σs ≥ 306 |
δ5 ≥ 22 |
(normal temperature) |
-(0°C) |
Typical value |
460~540 |
≥ 340 |
23~29 |
50-80 |
|
Available size:
2.0x300,2.5x300,2.5x350,3.2x350,4.0x400,4.0x450,5.0x400,5.0x450
Raw Material:Our products from raw materials through to finished product, quality control points are very tight and strict implementation of quality system requirements, have a track record to be investigated, our products have traceability.
Production:Shaping control. Production control process critical mass point. Mainly reflected in the quality of the detection points for each process. Form size detection strip, strip cleaning quality checks, observation roll greasy, powder flowability observed, the product powder filled sampling tests, sampling tests in diameter were observed lubricating powder layer around the detection, weight checks. To ensure product quality.
Production: Forming production process control
Our company strictly enforce national standards consumables batch inspection requirements

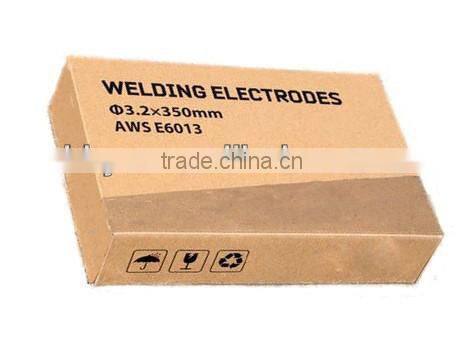

Packing: 5kg / box / shrink wrapped, 20kg (4boxes) / carton, 1,000kg (50cartons) / pallet
Uses: E6013 welding electrodes are widely used on both AC and DC in all position and suitable for welding sheet metal structure made of low-carbon steel, such as ships, vehicles, building, and general machinery
Shipping:Logistics convenience, the company itself has a large warehouse store stocking, the company is located 30 kilometers east of Shijiazhuang, close to Shi railway, 307 State Road and Shi Huang highway. 30 km from Shijiazhuang airport, close to the port of Tianjin Port, the goods brought into the output is very convenient.
Fair : The 19th Beijing Essen Welding and Cutting Fair
The 19th Beijing Essen Welding & Cutting Fair is to be held at the New China International Exhibition Centre in Beijing on 10-13, June, 2014. Welcome your attention.
