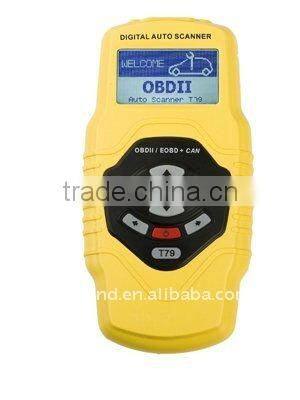

OBD2/OBDII: Newest Highend Code Reader T79 With 5 Languages

Specifications

Features & Benefits:

1. Supports data stream or live engine data;

2. Displays the vehicle's sensors status information;

3. Reads Generic Codes(P0, P2, P3, U0) and Manufacturer Specific Codes (P1, P3, and U1);

4. Erases trouble codes and resets check engine lights;

5. Displays I/M readiness status;

6. Detects OBD2 freeze frame information;

7. Determines the malfunction indicator lamp(MIL) status;

8. Identifies and displays Pending Codes;

9. Retrieves VIN(Vehicle Identification No.) on 2002 and newer vehicles that support mode 9;

10.Wider vehicle coverage with CAN protocol support;

11.Displays total # of codes retrieved;

12.Code definitions displayed on unit screen;

13.Unit upgradeable via flash programming;

14.Easy to use with friendly menu interface;

15.Large, 128 x 64 easy-to-read backlight LCD display with adjustable contrast;

16.Detachable and replaceable 16-pin OBD2 cable;

17.Multilingual(English, German, Spanish, French, Dutch);

18. Grape the live data(near 300 data stream);

19. Auto-save the data and Print function at off-vehilcle status;

20. one year warranty;

21. Views trouble code history record.

Specifications:
Display: backlight, 128 x 64 pixel display with contrast adjustment.
Operating temperature: 0 to 50C (32 to 122 F).
Storage temperature: -20 to 70C (-4 to 158 F).
Power: 8 to 16 Volts provided via vehicle battery. (we won’t provide the battery in the product)

Dimensions:
Length                      Width                          Height
209 mm (8.22")       107 mm (3.74")       37 mm (1.38")
NW: 0.73kg (1.611b),    GW: 0.98kg(2.161b)
Vehicle Coverage:
All OBD2 & EOBD & JOBD compliant vehicles with a 16-pin interface(include all 1996 and newer cars, light trucks and SUVs sold in the United States,all 2000 and newer sold in the Europe, Japan and Asian Area) CAN, VPW, PWM, ISO9141, KW2000 protocols compliant vehicles(including those equipped with the next-generation protocol Control Area Network.)

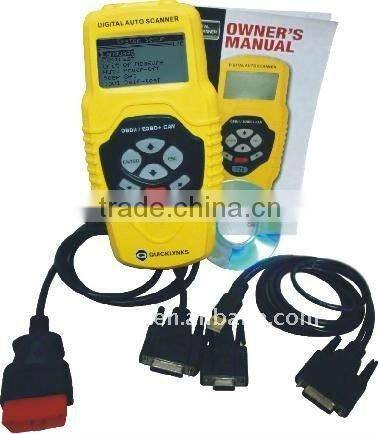

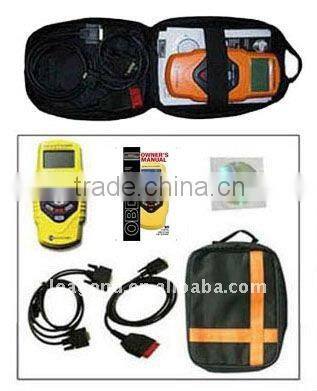

 Accessories Included
1.User's Manual  (Instructions on tool operations)
2.CD  (Includes user's manual, DTCs lookup library, etc.)
3.OBD2  Cable  (Works between OBD2 tool and vehicle)
4. USB Cable  (Used to update the scan tool)
5. Carry Case  (A nylon case to store the whole set scan tool)
