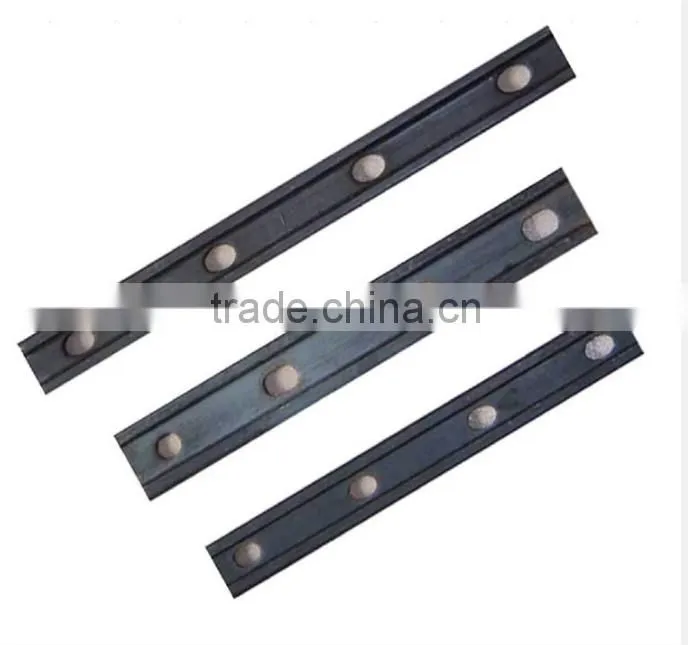

Railway Fish Plate / Railway Joint Bar

Name: Railway Fish Plate / Railway Joint Bar
Brand: yichen
SKU: 105155327

US$ 0.1 - 10 MOQ: 5000 Pieces

Key Specifications

Type:

Other, Q235, #45 etc or as per requirements

Material:

Q235, #45 etc or as per requirements

Dimensions (L x W x H) (mm):

(L x W x H) (mm): as per drawings

Hebei Yichen Industrial Group Corp. Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Type Other, Q235, #45 etc or as per requirements

Material Q235, #45 etc or as per requirements

Dimensions (L x W x H) (mm) (L x W x H) (mm): as per drawings

Place of Origin Hebei, China

Brand Name yichen

Model Number BS80A;BS90A;115RE;132RE;UIC54;UIC60;TJ45;TJ57;BS60;BS75

railway joint bar railway fish plate

Brand	YICHEN
Name	BS80A railway joint bar railway fish plate
Type	Length /Diameter	Weight(Kg)	Material
115RE	4 hole- 24″	17.04	45# Chemical composition(%): C:0.42-0.50, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035	50# Chemical composition(%): C:0.62-0.70, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035
115RE	6 hole -36″	25.56
132-136RE	4hole-24″	17.75
132-136RE	6hole-36″	26.63
UIC60	4 hole - 630/Ø26	18.07
UIC60	4 hole-600/ Ø 28	17.47
UIC60	4 hole - 630/ Ø 25	18.1
UIC54	4hole	14.34
UIC54	6hole- 800	19.94
BS80A	4hole	6.5
BS90A	685.8 / Ø 26	13.23
BS90A	792.9/ Ø 26 .2	15.34
90/91LB	4 hole	18.08
90/91LB	6hole	19.9
50Kg	4hole	14.3
50Kg	6hole	19.5
BS75R	4hole	6.56
BS60A	4hole	5.61
S49	4 hole	9.71
