Specifications
1.High welding efficiency2.Little spatter and fume
3.Beautiful weld shape
4.Good slag detachability
co2 gas shielded 1.2 MM flux cored arc welding wire AWS A5.20E71T-1C/1M
Application:
1) Adequate for welding carbon steel, certain kind of 500Mpa low-alloyed steel.
2) Suitable for welding of D or E grade steel for shipbuilding.
Main Characteristics:
1) Suitable for all-position welding as well as vertical and downward welding.
2) Stable electric arc with little spatter and fume.
3) Forming beautiful weld shape with good slag detachability.
4) Fast welding speed and high welding efficiency.
Protective Gas:
100% CO2
Equivalent Standard:
AWS E71T-1C
Approves:ABS,CCS,DNV,RINA,LR,GL,BV,NK,KR.RS
Chemical Composition of the Deposited Metal (%):
C |
Si |
Mn |
S |
P |
≤0.18 |
≤0.90 |
≤1.75 |
≤0.030 |
≤0.030 |
Mechanical Property of Deposited Metal:
Tensile Strength (Mpa) |
Yield point |
Elongation Rate(%) |
Test Temp.(°C) |
Impact Value (J) |
≥480 |
≥400 |
≥22 |
-20 |
≥27 |
Diameter and Reference Current of the Welding Wire:
Diameter (mm) |
Ø1.2 |
Ø1.4 |
Ø1.6 |
Current (A) |
120~320 |
150~400 |
180~400 |

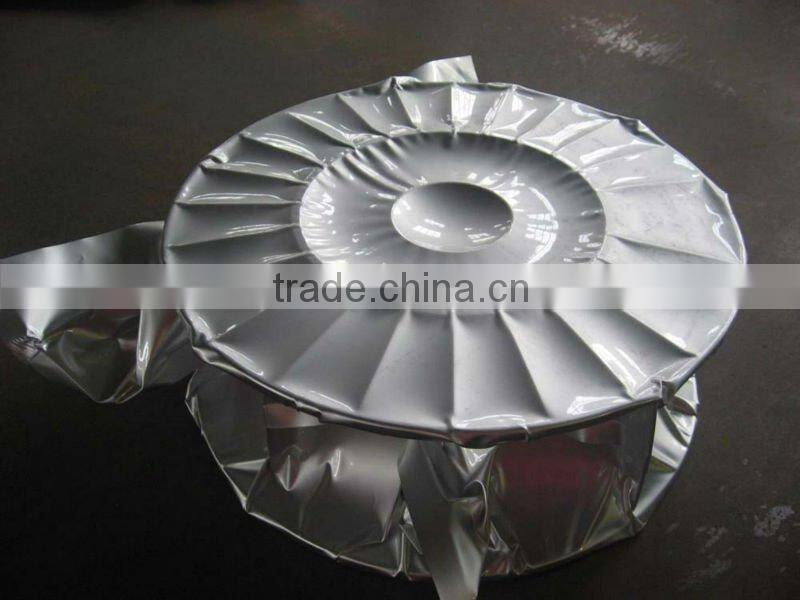

Packing Details:
Item.No.& Spec. |
Packing |
Carton Size(cm) |
GW/NW(kg) |
E711-Ø1.2 |
Wire spool+vacuumized aluminium plastic+carton box+wooden pallet |
27.5*10.7*27.5 |
15.5/15 |
E711-Ø1.4 |
27.5*10.7*27.5 |
15.5/15 |
|
E711-Ø1.6 |
27.5*10.7*27.5 |
15.5/15 |
