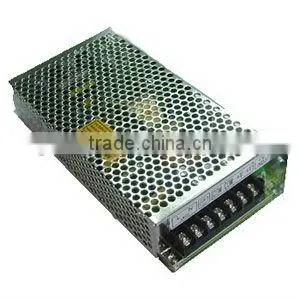

100W LED Switch Power Supply

Shenzhen G&G Technology Co., Ltd.
100W LED Switch Power Supply thumbnail-1
100W LED Switch Power Supply photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GG
Model Number:
GG-S-100
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name GG
Model Number GG-S-100
Output Power 51 - 100W
Output Type Single
Input Voltage 220V
Output Voltage DC5V, DC12V or DC24V

Specifications

100W LED switch Power supply
Input voltage: 170-250VAC
Output voltage: 5V, 12V ,24V
2 years Warranty
CE & RoHS

 100W LED switch Power supply



Input voltage: 170-250VAC
Output voltage: 5V, 12V ,24V
Output current: 20A, 8.5A, 4.5A
Output power:  100W



Features   1,Non-waterprooof design for indoor use only
                  2,Protections: Short circuit / Overload/Over temperature
                  3,Products through CE, RoHS Certification



Specification:



ModelS-100-5S-100-12S-100-24
DC output voltage5V12V24V
Output voltage error(Note2)±2%±1%±1%
Rated output current20A8.54.5A
Output current rage0-20A0-8.50-4.5A
Wave and noise(Note 3)100mVp-p125mVp-p150mVp-p
Inlet stability(Note 4)±0.5%±0.5%±0.5%
Load stablity (Note 5)±1%±0.5%±0.5%
DC output power100W102W108W
Efficiency76%80%83%
Adjustable range for DC voltage10%10%10%
AC input voltage range85-132VAC /176~264VAC selected by swich 47~63Hz;248~370VDC
Input current2A/115V 1A/230A
AC INnrush currentCold-start current30A/115V 60A/230V
Leakage current<1mA/240VAC
Overload proctection105%-150%Type:Foldback:current limiting reset:auto recovery
Over-voltage protection115%-135
High-temperature protectionYes
Temperature coefficient±0.03%/°C(0-50°C)
Setup rise hold up time1s,30ms,15ms
Vibration10-500Hz,2G 10min,/1cycle,Period for60min,Each axes
Withstand voltageInput and output internal: 1.5KVAC,Input and enclosure : 1.5KVAC,Output and enclosure: 0.5KVAC
Isolation resistanceInput and output internal:Input and enclosure,Output and enclosure: 500VDC/100MΩ
Working temperature and humidity-10°C~+60°C(Refer to output derating curve),20%~90%RH
Store temperature and humidity-20°C~+85°C.10%~95%RH
Overall dimension199×98×38mm
Weight0.65Kgs
Safety standardsUL1012 TUV EN6050(IEC950,UL1950)Approved
EMC standardsCISPR22(EN55022),IEC801-2,3,4,IEC555-2 Verification
Note
1.The testing condition for the paramenter above is :230VAC input,rated load,25°C70% RH.Humidity.
2.Error.include the setting error,line stability and load stability.(Note:5).
3.Wave test:adopting "A12"double wire for 20MHz,and 0.1UF&47UF capacitor short-circuit for interrupting.
4.Inlet voltage stability test:when is over load,the lowest voltage of inlet is up to the highest voltage.
5.Load stability test:the load is from 0% to 100%.
