Help Center360W LED AC/DC 12v 30A Switch Power Supply
Related Products
-
Rainproof 360W AC/DC 12v 30a Auto Switching Power SupplyNegotiableMOQ: 100 Pieces -
60W 12v/24v LED Waterproof Power SupplyNegotiableMOQ: 300 Pieces
-
Rainproof 360W LED AC/DC 12v 30a Switch Power SupplyNegotiableMOQ: 100 Pieces
-
Switch Power Supply for Led 150WattNegotiableMOQ: 12 Pieces
-
Led Power Supply for Led 150WattUS$ 2 - 5MOQ: 12 Pieces

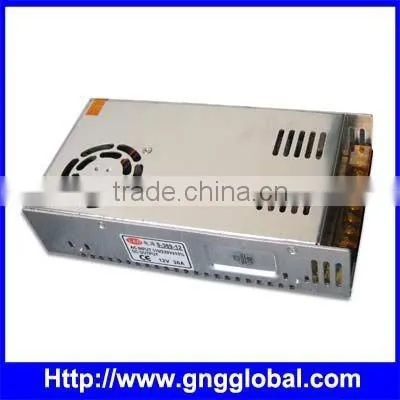

360W switch Power supply, OEM service availiable.
Input voltage:170-250VAC
Output voltage:5V, 12V ,24V
Output current: 70A, 30A, 15A
Output power:360W
Features 1,Non-waterprooof design for indoor use only
2,Protections: Short circuit / Overload/Over temperature
3,Products through CE, RoHS Certification
Specification:
| Model | S-360-5 | S-360-12 | S-360-24 |
| DC output voltage | 5V | 12V | 24V |
| Output voltage error(Note2) | ±2% | ±1% | ±1% |
| Rated output current | 70A | 30 | 15 |
| Output current rage | 0-70A | 0-30A | 0-15A |
| Wave and noise(Note 3) | 100mVp-p | 125mVp-p | 150mVp-p |
| Inlet stability(Note 4) | ±0.5% | ±0.5% | ±0.5% |
| Load stablity (Note 5) | ±1% | ±0.5% | ±0.5% |
| DC output power | 360W | 365W | 370W |
| Efficiency | 76% | 80% | 83% |
| Adjustable range for DC voltage | 10% | 10% | 10% |
| AC input voltage range | 85-132VAC /176~264VAC selected by swich 47~63Hz;248~370VDC | ||
| Input current | 2A/115V 1A/230A | ||
| AC INnrush current | Cold-start current30A/115V 60A/230V | ||
| Leakage current | <1mA/240VAC | ||
| Overload proctection | 105%-150%Type:Foldback:current limiting reset:auto recovery | ||
| Over-voltage protection | 115%-135 | ||
| High-temperature protection | Yes | ||
| Temperature coefficient | ±0.03%/°C(0-50°C) | ||
| Setup rise hold up time | 1s,30ms,15ms | ||
| Vibration | 10-500Hz,2G 10min,/1cycle,Period for60min,Each axes | ||
| Withstand voltage | Input and output internal: 1.5KVAC,Input and enclosure : 1.5KVAC,Output and enclosure: 0.5KVAC | ||
| Isolation resistance | Input and output internal:Input and enclosure,Output and enclosure: 500VDC/100MΩ | ||
| Working temperature and humidity | -10°C~+60°C(Refer to output derating curve),20%~90%RH | ||
| Store temperature and humidity | -20°C~+85°C.10%~95%RH | ||
| Overall dimension | 199×98×38mm | ||
| Weight | 0.65Kgs | ||
| Safety standards | UL1012 TUV EN6050(IEC950,UL1950)Approved | ||
| EMC standards | CISPR22(EN55022),IEC801-2,3,4,IEC555-2 Verification | ||
| Note | |||
| 1.The testing condition for the paramenter above is :230VAC input,rated load,25°C70% RH.Humidity. | |||
| 2.Error.include the setting error,line stability and load stability.(Note:5). | |||
| 3.Wave test:adopting "A12"double wire for 20MHz,and 0.1UF&47UF capacitor short-circuit for interrupting. | |||
| 4.Inlet voltage stability test:when is over load,the lowest voltage of inlet is up to the highest voltage. | |||
| 5.Load stability test:the load is from 0% to 100%. | |||
G&G Technology Co., Ltd. is a leading led lighting solution provider in China, own its GG and YM brands, design and manufactures a wide range of Lighting products,LED light, LED display, LED stip,LED control system, LED module, LED point source pixel,LED drivers, Power supply, and can design and delelop lighting solution per customer's requirement. Our spacious factory is equipped with the latest manufacturing equipment and first-class research and development technology, enabling us to provide high-quality products.
1.Manufacturer with our competitive price
2.Excellent management and technology QC Depa.aftersale team,we can do high technology
aftersale service.good quality products.
3.Prompt response to your request,
4.Short delivery,
5.Reliable warranty
6.OEM/ODM
7.GG and YM brand get the good repulation from all over the world
1.Payment methods:T/T,Western Union
100% payment if the total amount less than 5000USD
30% deposit and 70% balance before shipment if the total amount is more than 5000USD
2.Lead time:3-5 working days,subject to the order quantity
3.Delivery ways:DHL,EMS,UPS,FedEx door to door service,by sea, air and etc
4.MOQ:No quantity limit for the trial order
