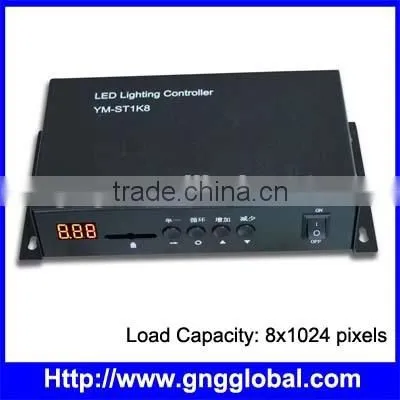

YM-ST1K8 8x1024pixels Programmable RGB LED Controller, addressable led controller,
programmable rgb led controller, address led controller, off-line led controller, sd card LED Controller,
Introduction:
YM supply you a new kind of LED simple controller with unique performance and higher performance price
ratio. Adopting by the latest control technology in the global, LED simple controller has lots of advantages:
super loading data capacity, freedom and easy to wiring, compatible with various normal LED drive IC and
various customized drive IC. Highly Cost-effective.
This led control system is composed of Three parts:

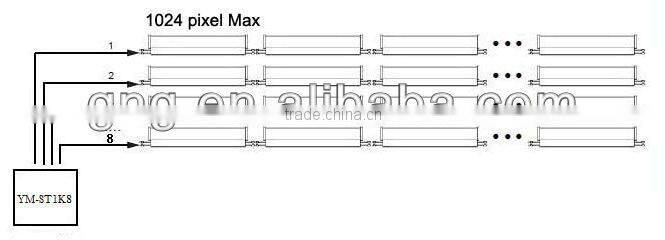

1. Multi-function LED controller – provide 1 ports for data output, can control 8,192 pixels.
(but the 8 ports has same output data, 1port data is split into 8 ports)
2. LED lighting control software-- Edit the display effects users need, and transfer to SD card.
Specification and Parameter:
Item Number |
YM-ST1K8 |
Working Voltage |
AC110 / AC220V |
Power Consumption |
4W |
Load Capacity |
8x1,024=8,192 pixels |
Grayscale |
R, G, B each 256levels |
Temperature |
-30 – 70 °C |
Unit Size |
L212XW112XH44mm |
Drive IC |
TUBE-NO/TUBE-EN, DMX512, INK1003, |
LPD6803/LPD8806/LPD8806 P2571/HL1609/ZQ9712 | |
DM114/115/13C/13A/134/135/413/412/413, | |
AUR6330/AUR6350/AUR6352/AUR6353/AUR6360 | |
D705, WS2801, WS2811, WS2812, SD600 , TM1803/ 1804/1809 /1812, SM16716,P9813, UCS1903, USC2912, | |
MBI5024/5026/5030/5031/6020/6024/6030 | |
TLS3001/3002/3003,MY9221/9231/9291/9291W, HM5B595 etc. |
Features:
1. Do not support DMX512(1990) international standard protocol.
2. More control functions: it can control various normal drive IC lights, and or various customized drive IC lights.
3. High speed photoelectric isolated signal input and output, to ensure the control system safety.
4. Control system realize RGB 256 scales per color, can make more than 16.7M kinds color
5. Project setting agility: realize adjust the brightness and speed separately.
6. Customized software: easy to setup the lighting project system. Create lighting data by various methods. Refresh data fast.
7. System failure self-repair function.
8. Accord with EMC electromagnetism compatibility, good anti-jamming capacity.
Conjunction:

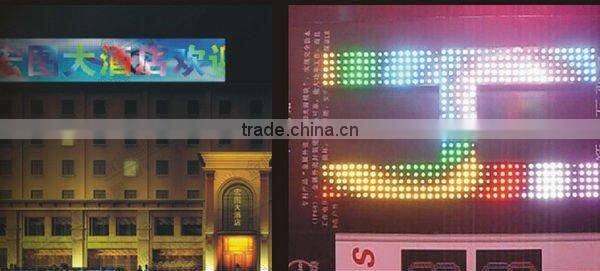

Application:
1PCS WITH ONX BOX, 20PCS WITH A CARTON
G&G Technology Co., Ltd. is a leading led lighting solution provider in China, own its GG and YM brands, design and manufactures a wide range of Lighting products,LED light, LED display, LED stip,LED control system, LED module, LED point source pixel,LED drivers, Power supply, and can design and delelop lighting solution per customer's requirement. Our spacious factory is equipped with the latest manufacturing equipment and first-class research and development technology, enabling us to provide high-quality products
Cetificate:
1.Your inquiry related to our products or prices will be replied in 24hours
2. Sample is available.
3.OEM&ODM, any your customized lightings we can help your to design and put into product.
4.Distributorship are offered for your uniques design and some our current models.
5. protection of your sales area, ideas of design and all your privated information
6. After you buy this product, we will provide you with attentive after-sales service. Our engineers will carefully guide the installation and usage for you. That will includes connection of the controller and the light, and also the control software.
1.Payment methods:T/T,Western Union, place the order on alibaba directly, etc
100% payment if the total amount less than 5000USD
30% deposit and 70% balance before shipment if the total amount is more than 5000USD
2.Lead time:5-7 working days,subject to the order quantity
3.Delivery ways:DHL,EMS,UPS,FedEx (door to door service),by sea, air and etc
4.Sample is available, Don't limit the quantity
