Specifications
led rgb dmx decoder,Input: DMX512 signal,
Output: LPD8806,UCS1903,TM1803,74HC595
Working voltage: DC12-DC24V,
led rgb dmx decoder,
Introduction:

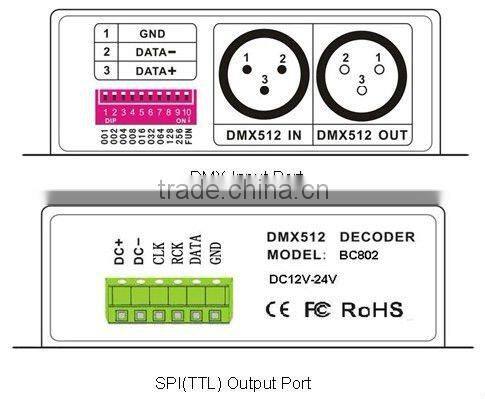

YM-BC802-1903(DMX-SPI) signal decoder is to convert the DMX512 digital signal into SPI(TTL) digital signal. It can work on the DMX console to control the LED lights with compatible driving ICs. DMX console can control every channel of the LED Lights, realizing 0-100% dimming and various changing effect.
Our DMX decoder can control LED lights based on following driving ICs:
LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, TLS3001, TLS3002, WS2801, WS2803, P9813, 74CH595, MB5026, DM134, DM135, ZQ9712.
The grey scales of DMX decoder depends on the driving IC , the above driving ICs are with a built-in grey scale processor and occupy 70-80% of LED digital lighting market, use our DMX-SPI decoder can simply turn normal LED digital light to DMX512 LED light with international standard communication protocol, which is easy to promote in the international market.
DMX-SPI decoders are widely used in the LED string light, LED dot light, SMD flexible strip, LED digital tube, wall light, pixel screen, high power spot light, wall washer and kinds of LED digital lights .
Note: Signal DMX Decoder merely output the signal to the LED lights which can be controlled in spite of the working voltage.
Parameters:
Input voltage DC12V~DC24V
Input signal DMX512/1990
Output signal LPD6803, LPD1101, D705,
UCS6909, UCS6912 driving IC
Decoder channels 512 DMX CH/unit
Grey Scale 32 levels/CH (5bit/CH)
DMX512 socket: Standard XLR-3 connector
working temperature -30°C~65°C
Dimension L125×W52×H40mm
Package Size L135×W70×H50mm
G&G Technology Co., Ltd. is a leading led lighting solution provider in China, own its GG and YM brands, design and manufactures a wide range of Lighting products,LED light, LED display, LED stip,LED control system, LED module, LED point source pixel,LED drivers, Power supply, and can design and delelop lighting solution per customer's requirement. Our spacious factory is equipped with the latest manufacturing equipment and first-class research and development technology, enabling us to provide high-quality products.
1.Manufacturer with our competitive price
2.Excellent management and technology QC Depa.aftersale team,we can do high technology
aftersale service.good quality products.
3.Prompt response to your request,
4.Short delivery,
5.Reliable warranty
6.OEM/ODM
7.GG and YM brand get the good repulation from all over the world
1.Payment methods:T/T,Western Union
100% payment if the total amount less than 5000USD
30% deposit and 70% balance before shipment if the total amount is more than 5000USD
2.Lead time:3-5 working days,subject to the order quantity
3.Delivery ways:DHL,EMS,UPS,FedEx door to door service,by sea, air and etc
4.MOQ:No quantity limit for the trial order
