Home > Lights & Lighting > Lighting Fixtures > Dimmer > RGB 3 Channel Constant Voltage 3 Channel Dmx Led Controller Dimmer
RGB 3 Channel Constant Voltage 3 Channel Dmx Led Controller Dimmer
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GNG
Model Number:
GG-DMXBM02
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Dc5-24v Dmx to Ws2801 Decoder, Output SPI Signal Dmx DecoderNegotiableMOQ: 20 Pieces -
Constant Current RGBW 4channel Dmx Rgb Led ControllerNegotiableMOQ: 100 Pieces
-
RGB 3chnnels Constant Current Dmx Rgb Led ControllerNegotiableMOQ: 100 Pieces
-
Dmx to UCS 1903 Dmx Rgb Led ControllerUS$ 1 - 6MOQ: 20 Pieces
-
RGB 3 Channel Constant Voltage 3 Channel Strip Led Rgb Dmx ControllerUS$ 12 - 29MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
GNG
Model Number
GG-DMXBM02
Type
Manual Switch
Max. Load Power
216W
Voltage
Other, DC5V-DC24V
Specifications
led controller dimmer,led controller
3A/Channel
Max 216W
CE&RoHS
led controller dimmer,

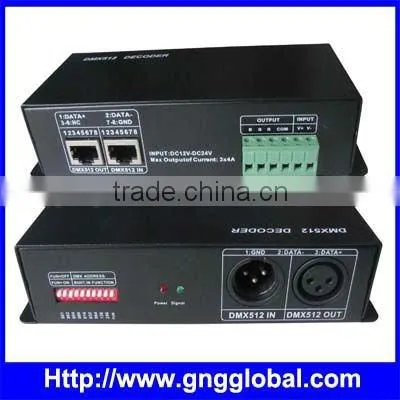

This DMX512 Decoder & Controller uses the advanced computer control chip. It can receive the DMX-512 standard digital control signal which is internationally widely used. It changes the signal into PWM control signal to actuate the LED lamp. It can also connect the DMX digital console to change the light or each dynamic effect.
It can work as a RGB LED controller when no DMX signal input.
This product is in compliance with DMX512 protocol, and auto-index addressing and manual establishment address
Technical Parameters
Working temperature: -20~60 °C
Voltage input: 12V ~24V DC
Output: 3 CMOS drain-open output
Connecting mode: common anode
External dimension: L164*W65*H40(mm)
Packing size: L183ΧW82ΧH60(mm)
Net weight: 310g
Gross weight: 340g
Output current: <4A (each channel)
Output power: 5V: <60W, 12V: <144W, 24V: <216W
Output gradation: 256 stage of each RGB
Application:
led rgb dmx decoder
,
