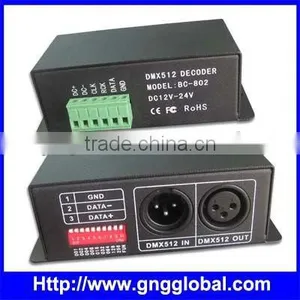

512 Channels DMX Decoder, Dmx Led Dimmer

Specifications

dmx led dimmer ,

IIC  DMX decoder, DMX512 Decoder,

Introduction:

YM-BC802-3001(DMX-SPI) signal decoder is to convert the DMX512 digital signal into SPI(TTL) digital signal. It can work on the DMX console to control the LED lights with compatible driving ICs. DMX console can control every channel of the LED Lights, realizing 0-100% dimming and various changing effect.

Our DMX decoder can control LED lights based on following driving ICs:

LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, TLS3001, TLS3002, WS2801, WS2803, P9813, 74CH595, MB5026, DM134, DM135, ZQ9712.

The grey scales of DMX decoder depends on the driving IC , the above driving ICs are with a built-in grey scale processor and occupy 70-80% of LED digital lighting market, use our DMX-SPI decoder can simply turn normal LED digital light to DMX512 LED light with international standard  communication protocol, which is easy to promote in the international market.

DMX-SPI decoders are widely used in the LED string light, LED dot light, SMD flexible strip, LED digital tube, wall light, pixel screen, high power spot light, wall washer and kinds of LED digital lights .

Note: Signal DMX Decoder merely output the signal to the LED lights which can be controlled in spite of the working voltage.

Parameters:

Input voltage: DC12V~DC24V

Input signal:DMX512/1990

Output signal: LPD6803, LPD1101, D705,UCS6909, UCS6912 driving IC

Decoder channels: 512 DMX CH/unit

Grey Scale: 32 levels/CH (5bit/CH)

DMX512 socket: Standard XLR-3 connector

Working temperature: -30°C~65°C

Dimension: L125×W52×H40mm

Package Size: L135×W70×H50mm
